Cu / Mo70Cu / Cu Heatspreader For Mobile Base Stations / CPC For 5G Mobile Base Stations
Cu / Mo70Cu / Cu Heatspreader For Mobile Base Stations / CPC For 5G Mobile Base Stations
Cu / Mo70Cu / Cu Heatspreader For Mobile Base Stations / CPC For 5G Mobile Base Stations
Cu / Mo70Cu / Cu Heatspreader For Mobile Base Stations / CPC For 5G Mobile Base Stations
Cu / Mo70Cu / Cu Heatspreader For Mobile Base Stations / CPC For 5G Mobile Base Stations
Cu / Mo70Cu / Cu Heatspreader For Mobile Base Stations / CPC For 5G Mobile Base Stations
Cu / Mo70Cu / Cu Heatspreader For Mobile Base Stations / CPC For 5G Mobile Base Stations
Cu / Mo70Cu / Cu Heatspreader For Mobile Base Stations / CPC For 5G Mobile Base Stations
Specifications
Brand Name :
JBNR
Model Number :
CPC141,CPC232,CPC300
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, , T/T, Western Union
Delivery Time :
15days
Packaging Details :
as customer required
Material :
copper/moly copper/copper
Density :
9.5
CTE :
7.3
TC :
170
Application :
RF Power Device Package
Description

CPC (Cu/Mo70Cu/Cu) Heatspreader For Mobile Base Stations / CPC For 5G Mobile Base Stations


Description:

CPC is a composite material with a laminated structure with Cu layers above and below the Cu-Mo composite material. Thermal conductivity and linear expansion coefficient can be changed by combining the composition of the core material Cu-Mo and the lamination ratio. In addition, because both surfaces are Cu, the initial heat radiation effect is excellent.
It is mainly used for wireless communications, especially amplifier substrates of mobile phone base stations.

Advantages:
1.More easily to be stamped into components than CMC
2.Very strong interface bonding which can repeatedly resist 850℃ heat shock
3.Higher thermal conductivity and lower cost
4.No magnetism

Product Properties:
Grade Density g/cm3

Coefficient of thermal

Expansion ×10-6 (20℃)

Coefficient of thermal

Expansion ×10-6 (20℃)
CPC141 9.5 7.3

280(XY)/170(Z)
CPC232 9.3 10.2 255(XY)/250(Z)

Application:
Typical Applications: Microwave carriers and heat sinks, BGA Packages, LED packages, GaAs device mount,mobile phone base stations.

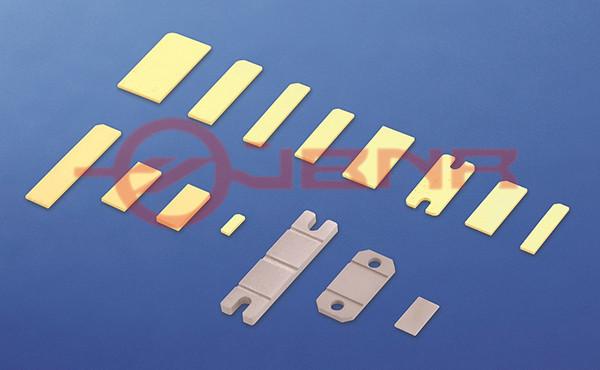

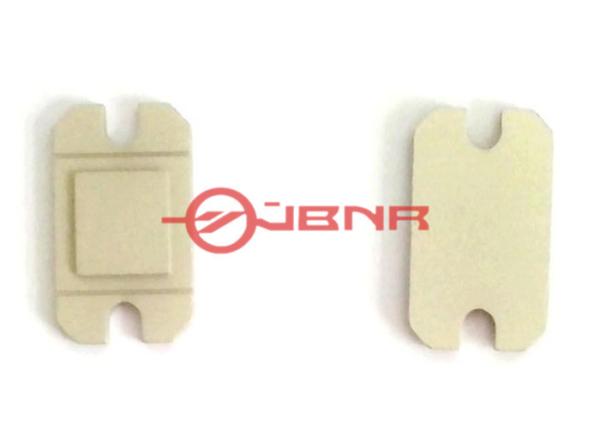

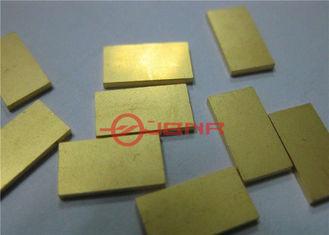

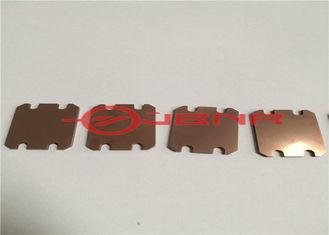

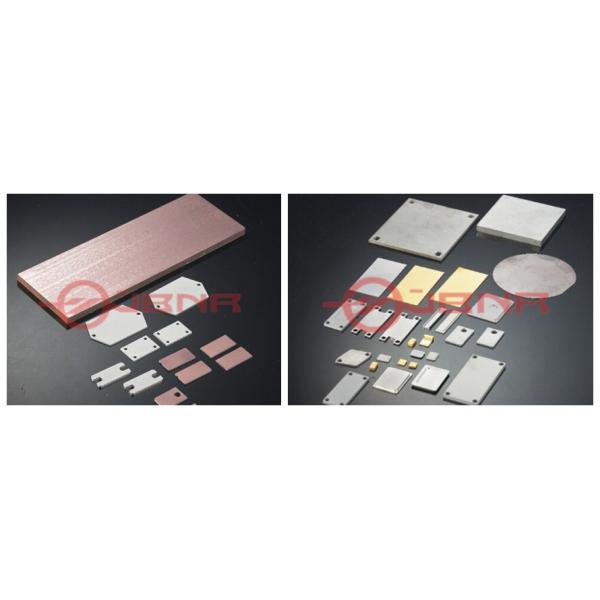

Product picture:

Cu / Mo70Cu / Cu Heatspreader For Mobile Base Stations / CPC For 5G Mobile Base Stations
