MoCu Flange Molybdenum Copper Heat Spreader For Optoelectronics Packages
MoCu Flange Molybdenum Copper Heat Spreader For Optoelectronics Packages
Specifications
Brand Name :
JBNR
Model Number :
50MoCu,60MoCu,70MoCu,85MoCu
Place of Origin :
CHINA
Payment Terms :
L/C, , T/T, Western Union
Delivery Time :
15days
Packaging Details :
as customer required
MOQ :
Negotiation
Price :
Negotiable
Material :
Molybdenum copper
Density :
9.66
CTE :
7.5
TC :
220
Application :
Optoelectronics Packages
Description

MoCu Flange Molybdenum Copper Heat Spreader For Optoelectronics Packages

Description:

It is a composite made from Mo and Cu. Similar to W-Cu, CTE of Mo-Cu can also be tailored by adjusting the composition. But Mo-Cu is much lighter than W-Cu, so that it is more suitable for aeronautic and astronautic applications.

Advantages:

High thermal conductivity

Excellent hermeticity

Excellent flatness, surface finish, and size control

Semi-finished or finished (Ni/Au plated) products available

Product Properties:

Grade Mo Content Density g/cm3

Coefficient of thermal

Expansion ×10-6 (20℃)

 Thermal conductivity W/(M·K)
85MoCu 85±2% 10.0 7 160(25℃)/156(100℃)
70MoCu 70±2% 9.8 7 200(25℃)/196(100℃)
60MoCu 60±2% 9.66 7.5 222(25℃)/217(100℃)
50MoCu 50±2% 9.5 10.2 250(25℃)/220(100℃)

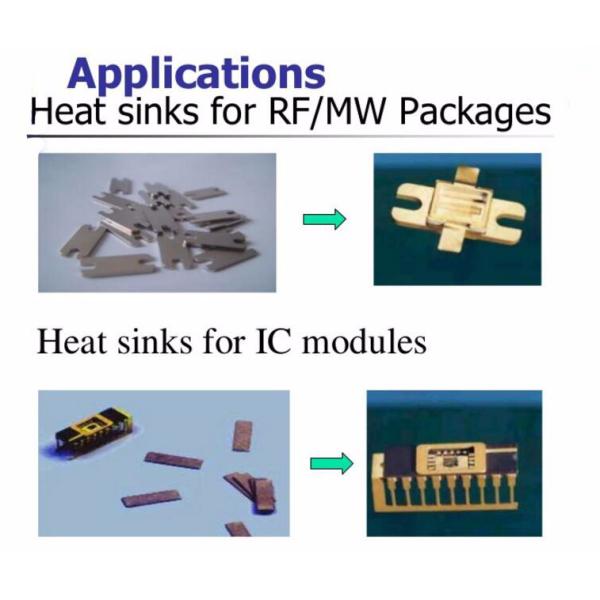

Application:

These composite are widely used in applications such as Optoelectronics Packages, Microwave Packages, C Packages, Laser Sub-mounts, etc.

MoCu Flange Molybdenum Copper Heat Spreader For Optoelectronics Packages

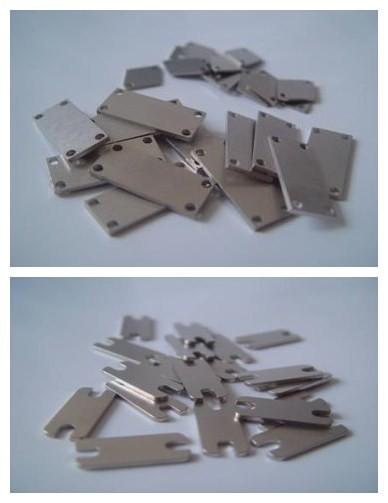

Product picture:

MoCu Flange Molybdenum Copper Heat Spreader For Optoelectronics Packages
