CPC141 Carrier Heat Spreader Hermetic Packages Electronics No Magnetism
CPC141 Carrier Heat Spreader Hermetic Packages Electronics No Magnetism
Specifications
Brand Name :
JBNR
Model Number :
CPC141,CPC232,CPC300
Place of Origin :
CHINA
Payment Terms :
L/C, , T/T, Western Union
Delivery Time :
15days
Packaging Details :
as customer required
Material :
copper/moly copper/copper
Density :
9.5
CTE :
7.3
TC :
170
MOQ :
Negotiation
Price :
Negotiable
Description

CPC141 Carrier / Heat Spreader / Flange For Hermetic Packages And Microelectronic Packages


Description:

CPC is a sandwich composite similar to that of Cu/Mo/Cu including a Mo70-Cu alloy core layer and two copper clad layers. The ratio of the thickness in Cu: Mo-Cu: Cu is 1:4:1. It has different CTE in X and γ direction, with higher thermal conductivity than that of W (Mo)-Cu & Cu/Mo/Cu and less expensive. All types of Cu/Mo70Cu/Cu sheets can be stamped into components,.

Advantages:

1.More easily to be stamped into components than CMC
2.Very strong interface bonding which can repeatedly resist 850℃ heat shock
3.Higher thermal conductivity and lower cost
4.No magnetism

Product Properties:
Grade Density g/cm3

Coefficient of thermal

Expansion ×10-6 (20℃)

Coefficient of thermal

Expansion ×10-6 (20℃)
CPC141 9.5 7.3

280(XY)/170(Z)
CPC232 9.3 10.2 255(XY)/250(Z)

Application:


Typical Applications: Microwave carriers and heat sinks, BGA Packages, LED packages, GaAs device mount.

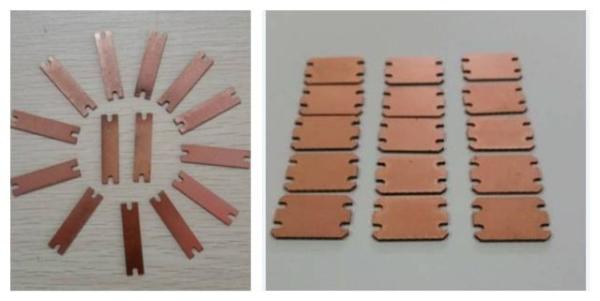

Product picture:

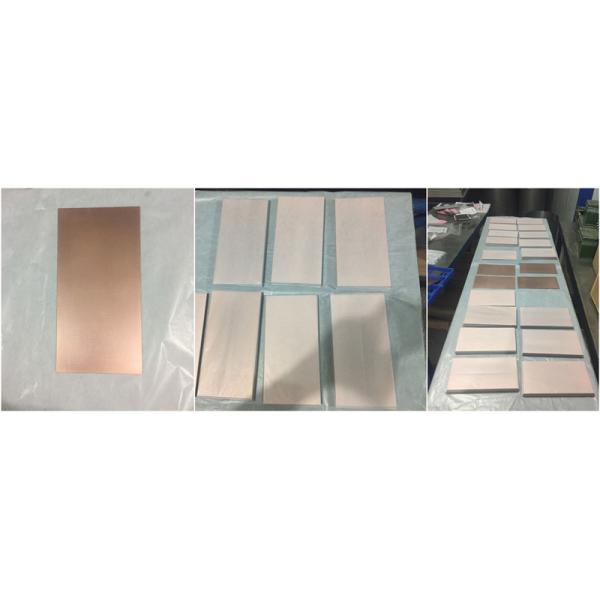

CPC141 Carrier Heat Spreader Hermetic Packages Electronics No Magnetism
