Cu/MoCu/Cu Copper Heat Spreader , High Performance Copper Heat Sink
Cu/MoCu/Cu Copper Heat Spreader , High Performance Copper Heat Sink
Specifications
Brand Name :
JBNR
Model Number :
CPC141,CPC232,CPC300
Place of Origin :
CHINA
Payment Terms :
L/C, , T/T, Western Union
Delivery Time :
15days
Packaging Details :
as customer required
Material :
copper/moly copper/copper
Density :
9.5
CTE :
7.3
TC :
170
MOQ :
Negotiation
Price :
Negotiable
Description

Hermetic Packages Electronics Material Cu/MoCu/Cu High-Performance Heat Sink


Description:

Cu/MoCu/Cu(CPC) is a sandwich composite like Cu/Mo/Cu including a Mo-Cu alloy core layer and two copper clad layers.The ratio of the thickness in Cu:Mo-Cu:Cu can be varied. It has higher thermal conductivity than that of W(Mo)-Cu, Cu/Mo/Cu and is cheaper, so comparable speaking, it has higher price-quality ratio.

Advantages:

1.More easily to be stamped into components than CMC
2.Very strong interface bonding which can repeatedly resist 850℃ heat shock
3.Higher thermal conductivity and lower cost
4.No magnetism

Product Properties:
Grade Density g/cm3

Coefficient of thermal

Expansion ×10-6 (20℃)

Coefficient of thermal

Expansion ×10-6 (20℃)
CPC141 9.5 7.3

280(XY)/170(Z)
CPC232 9.3 10.2 255(XY)/250(Z)

Application:


It can be used as thermal mounting plates, chip carriers for microwave, flanges and frames for RF, laser diode packages, LED packages, BGA packages and GaAs device mounts etc.

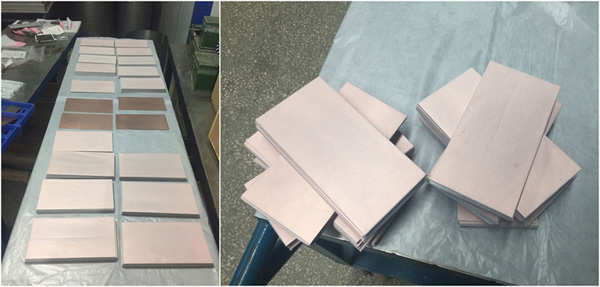

Product picture:

Cu/MoCu/Cu Copper Heat Spreader , High Performance Copper Heat Sink
