33000L 38000L Semi Tanker Trailer Gasoline Oil Transport Tanker 2 Axle 3 Axle Truck Trailer
33000L 38000L Semi Tanker Trailer Gasoline Oil Transport Tanker 2 Axle 3 Axle Truck Trailer
33000L 38000L Semi Tanker Trailer Gasoline Oil Transport Tanker 2 Axle 3 Axle Truck Trailer
33000L 38000L Semi Tanker Trailer Gasoline Oil Transport Tanker 2 Axle 3 Axle Truck Trailer
33000L 38000L Semi Tanker Trailer Gasoline Oil Transport Tanker 2 Axle 3 Axle Truck Trailer
33000L 38000L Semi Tanker Trailer Gasoline Oil Transport Tanker 2 Axle 3 Axle Truck Trailer
33000L 38000L Semi Tanker Trailer Gasoline Oil Transport Tanker 2 Axle 3 Axle Truck Trailer
33000L 38000L Semi Tanker Trailer Gasoline Oil Transport Tanker 2 Axle 3 Axle Truck Trailer
33000L 38000L Semi Tanker Trailer Gasoline Oil Transport Tanker 2 Axle 3 Axle Truck Trailer
33000L 38000L Semi Tanker Trailer Gasoline Oil Transport Tanker 2 Axle 3 Axle Truck Trailer
33000L 38000L Semi Tanker Trailer Gasoline Oil Transport Tanker 2 Axle 3 Axle Truck Trailer
33000L 38000L Semi Tanker Trailer Gasoline Oil Transport Tanker 2 Axle 3 Axle Truck Trailer
Specifications
Place of Origin :
Hubei,China, Hubei,China
Brand Name :
HUATE
Price :
$9,000/pieces 1-49 pieces
Use :
Truck Trailer
Type :
Semi-Trailer
Material :
Stainless Steel, Stainless Steel 5182
Size :
10400*2500*3800(mm), 10400*2500*3800(mm)
Max Payload :
29800
Product name :
Fuel Tank Semi Trailer
Storage :
Fuel ,Such as: Gasoline, Kerosene, Diesel and Jet fuel
Axle :
2
Tire :
11.00R20 12PR,12R22.5 12PR
Loading capacity :
20-100T
Color :
Customers' Request
MOQ :
1
Packaging Details :
Wooden box
Delivery Time :
30
Payment Terms :
T/T
Supply Ability :
Meet large-scale orders
Certification :
CCC
Description
33000L-38000L Semi Tanker Trailer for Gasoline & Oil Transport
33000L 38000L Semi Tanker Trailer Gasoline Oil Transport Tanker 2 Axle 3 Axle Truck Trailer
Premium Fuel Transport Tank Semi-Trailer
Our large capacity fuel tank semi-trailer is designed for safe and efficient transportation of petroleum products including gasoline, diesel, crude oil, lubricants, and coal tar. Available in 2-axle or 3-axle configurations with capacities ranging from 30,000 to 60,000 liters.
Key Features
  • Multi-material construction: Tank body available in aluminum, carbon steel, or stainless steel
  • Reinforced anti-wave baffle plates with through-hole design for stability
  • Self-contained pumping system for self-priming and self-draining
  • Dual pumping pipes with suction lift capability
  • Integrated safety features including breather valves and electrostatic grounding
  • Standard safety equipment including two fire extinguishers
Technical Specifications
Specification Details
Product Name Fuel Transport Tank Semi Trailer
Overall dimensions 10400×2500×3800(mm)
GVW 35000Kg
Total net weight 5200Kg
Loading capacity 29800Kg
Tank capacity 30000L to 60000L
Compatible media Gasoline, Kerosene, Diesel, Jet Fuel
Tank body thickness Stainless Steel 5182 5mm steel
End plate Stainless Steel 5182 6mm steel
Compartments 2-6 (customizable)
Chassis brand HUATE
Tire specification 11.00R20 12PR,12R22.5 12PR
Transmission Manual
Axle Number 2
Additional Features
  • 500mm manhole covers with breather valves (3 sets)
  • 4' discharge valve converting to 3'
  • 4' seamless steel discharge tube
  • Totally-enclosed discharge valve box
  • Rear spill discharge
  • Dismountable rear ladder
  • Top walkway with anti-skid pedals
  • Customizable colors and logos
Standard Configuration
Chassis, Arc-shaped Body, Sub Frame, Rear Lifting Part, Loading Bunker, Pushing-out Plate, Sewage Tank, Climbing Ladder
Optional Features
Multifunctional Rear Lifting Part, Rear Handrail and Footplate, Custom body shapes

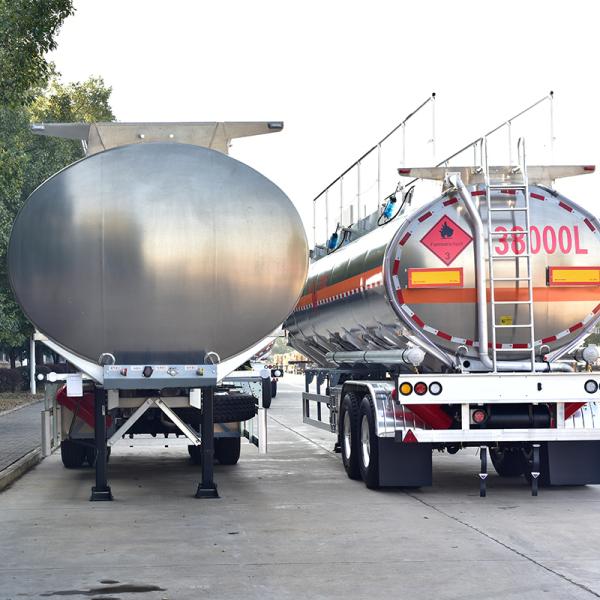

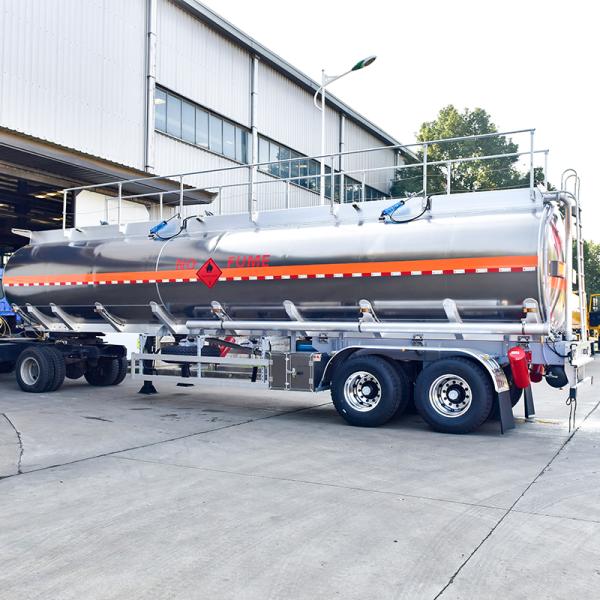

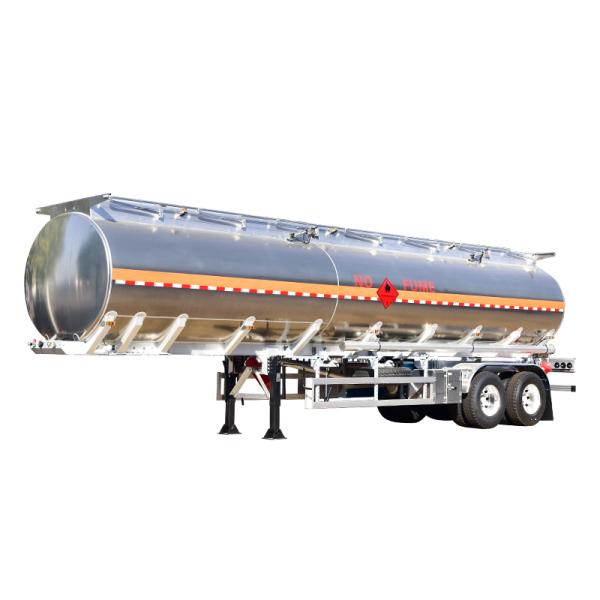

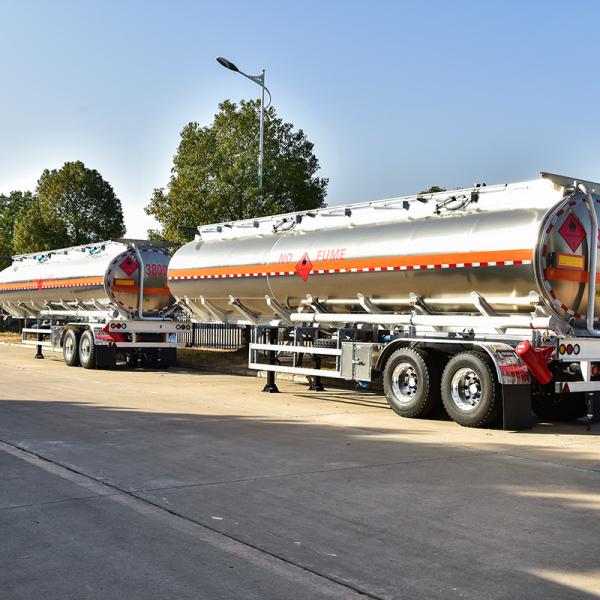

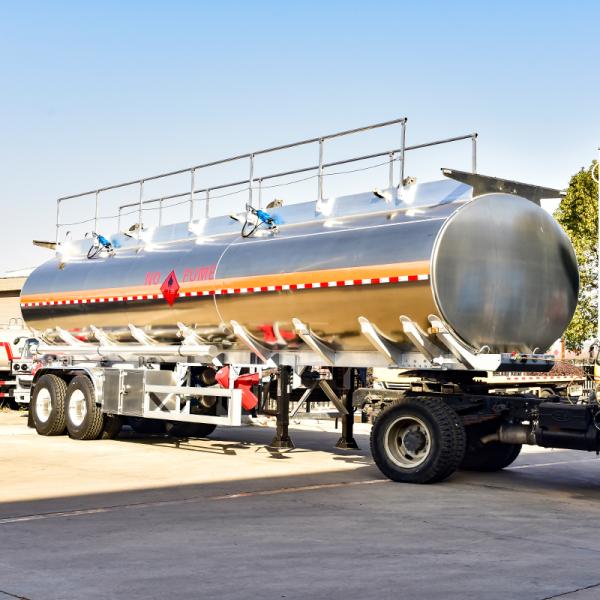

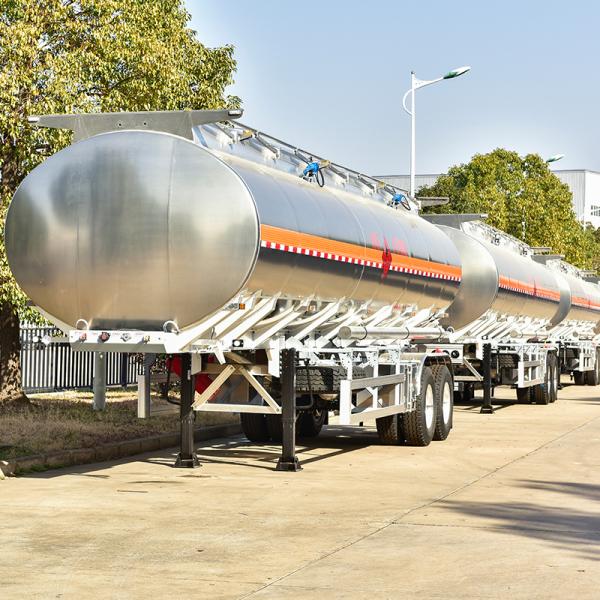

Product Gallery
