Double Axle Tri Axle Fuel Tank Semi Trailer With 11.00R20 12PR 12R22.5 12PR Tire Specification
Double Axle Tri Axle Fuel Tank Semi Trailer With 11.00R20 12PR 12R22.5 12PR Tire Specification
Double Axle Tri Axle Fuel Tank Semi Trailer With 11.00R20 12PR 12R22.5 12PR Tire Specification
Double Axle Tri Axle Fuel Tank Semi Trailer With 11.00R20 12PR 12R22.5 12PR Tire Specification
Double Axle Tri Axle Fuel Tank Semi Trailer With 11.00R20 12PR 12R22.5 12PR Tire Specification
Double Axle Tri Axle Fuel Tank Semi Trailer With 11.00R20 12PR 12R22.5 12PR Tire Specification
Double Axle Tri Axle Fuel Tank Semi Trailer With 11.00R20 12PR 12R22.5 12PR Tire Specification
Double Axle Tri Axle Fuel Tank Semi Trailer With 11.00R20 12PR 12R22.5 12PR Tire Specification
Double Axle Tri Axle Fuel Tank Semi Trailer With 11.00R20 12PR 12R22.5 12PR Tire Specification
Double Axle Tri Axle Fuel Tank Semi Trailer With 11.00R20 12PR 12R22.5 12PR Tire Specification
Double Axle Tri Axle Fuel Tank Semi Trailer With 11.00R20 12PR 12R22.5 12PR Tire Specification
Double Axle Tri Axle Fuel Tank Semi Trailer With 11.00R20 12PR 12R22.5 12PR Tire Specification
Specifications
Place of Origin :
Hubei, China
Brand Name :
CHUANCHU
Price :
$9,000/sets 1-9 sets
Use :
Truck Trailer
Type :
Semi-Trailer
Material :
Stainless Steel 5182, Stainless Steel 5182
Size :
10370*2500*3800(mm), 10370*2500*3800(mm)
Max Payload :
25001-30000 kg
Product name :
Fuel Tank Trailer
Storage :
Fuel ,Such as: Gasoline, Kerosene, Diesel and Jet fuel
Axle :
2/3/4 Axle
Tire Specification :
11.00R20 12PR 12R22.5 12PR
Color :
Customer's Request
Loading capacity :
20-100T
MOQ :
1
Packaging Details :
Wooden box
Delivery Time :
7-30 days
Payment Terms :
T/T
Supply Ability :
Meet large-scale orders
Description
Products Description

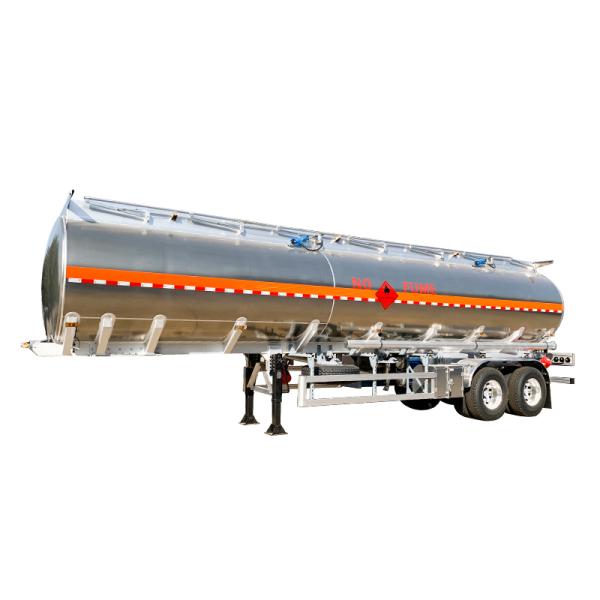

33000 Liter Oil Transport Tank Semi Trailer Fuel Delivery Tankers for Sale Large Capacity Oil Tank Trailer Tanker trailer is also known as tanker, highway tanker, etc. It is mainly used for transportation and storage of oil products such
as petroleum derivatives, gasoline, diesel, crude oil, lubricating oil and coal tar. Tanker trailers are widely used in oil
depots, gas stations, oil fields, chemical plants, food plants, asphalt plants, etc.

The tank body of fuel tanker trailer can be made of different materials such as aluminum, carbon steel, and stainless steel.

The tank is built with multi-channel reinforced anti wave baffle plate, and the lower end of the baffle plate is designed with
through holes to reduce the impact of fuel in the tank and improve the strength of the tank.

The combined tank opening is located at the top of the tank body. A self-locking small cover is arranged on the large cover, and a
breathing valve is installed on top of the large cover to ensure the consistency of atmospheric pressure inside and outside the
tank. There is also the electrostatic grounding wire. Installed fuel pump system allows the fuel tanker trailer to self-prime and
self-drain. Two separate pumping pipes are included along with a suction lift, two fire extinguishers, and too
Product Name
Fuel Transport Tank Semi Trailer
Overall dimensions
10400×2500×3800(mm)
GVW
35000Kg
Total net weight
5200Kg
Loading capacity
29800Kg
Tank capacity( CBM )
30000L to 60000L
Medium
Fuel Such As: Gasoline, Kerosene, Diesel and Jet Fuel
Tank body thickness(mm)
Stainless Steel 5182 5mm steel
End plate
Stainless Steel 5182 6mm steel
Compartment
2-6 As Customer Need
Chassis brand
HUATE
Approach/departure angle
/19°
Tire specification
11.00R20 12PR,12R22.5 12PR
Transmission
Manual
Axle Number
2
Axle Brand
BPW/FUWA/ZY/ L1/HO’S/ SAF/ PDME,13ton Axle
Manhole covers
500mm manhole cover .3 sets with 3 breather valve.
Discharge Valve
4’change into 3’
Dischage Pipe
4’seamless steel tube
Discharge Valve Vox
Totally-enclosed
Spill Discharges
1at the rear
Bottom Valve
1 Set
Rear Ladder
Dismountable
Walkway
On the top
Top Ladder
Standard
Pedal
Anti-Skid Pedal
Color and Logo
As Customer Need
Standard Configuration
Chassis,Arc-shaped Body,Sub Frame,Rear Lifting Part,Loading Bunker,Pushing-out Plate,Sewage Tank,Climbing Ladder
Selective Configuration
Multifunctional Rear Lifting Part,Rear Handrail and Footplate,Other shapes of body etc.
Double Axle Tri Axle Fuel Tank Semi Trailer With 11.00R20 12PR 12R22.5 12PR Tire Specification
Double Axle Tri Axle Fuel Tank Semi Trailer With 11.00R20 12PR 12R22.5 12PR Tire Specification
Double Axle Tri Axle Fuel Tank Semi Trailer With 11.00R20 12PR 12R22.5 12PR Tire Specification
Double Axle Tri Axle Fuel Tank Semi Trailer With 11.00R20 12PR 12R22.5 12PR Tire Specification
Double Axle Tri Axle Fuel Tank Semi Trailer With 11.00R20 12PR 12R22.5 12PR Tire Specification
Double Axle Tri Axle Fuel Tank Semi Trailer With 11.00R20 12PR 12R22.5 12PR Tire Specification
Double Axle Tri Axle Fuel Tank Semi Trailer With 11.00R20 12PR 12R22.5 12PR Tire Specification
Double Axle Tri Axle Fuel Tank Semi Trailer With 11.00R20 12PR 12R22.5 12PR Tire Specification
Double Axle Tri Axle Fuel Tank Semi Trailer With 11.00R20 12PR 12R22.5 12PR Tire Specification
Double Axle Tri Axle Fuel Tank Semi Trailer With 11.00R20 12PR 12R22.5 12PR Tire Specification
ABOUT US
Hubei Huate is a steel tank and spare part manufacturer with specialization in fuel and chemical tanks. Our company began
operations in March 2009 after Huate CEO Aaron Wang purchased the well-established tank product line.
For nearly 20 years, the Huate family has worked to create our professional TANK and TANK PART to take our industry capabilities to the next level providing endless customization opportunities for customers.
All Huate Tanks equipment is backed by a dedicated customer service team. Our products offer exceptional craftsmanship and
attention to detail, adding peace of mind to your operation.
