Description
Stainless Steel 42000 Litres Tank Semi Trailer Diesel Jet Fuel Truck
20-100T Loading Capacity
Product Overview
Our customized oil transport tank semi-trailers are designed for safe and efficient transportation of fuel products including gasoline, diesel, jet fuel, and other petroleum derivatives. These high-capacity tankers feature robust construction with multi-channel reinforced anti-wave baffle plates for enhanced stability during transport.
Key Features
  • Available in aluminum, carbon steel, or stainless steel construction
  • Multi-channel reinforced anti-wave baffle plate design
  • Combined tank opening with self-locking cover and breathing valve
  • Electrostatic grounding wire for safety
  • Integrated fuel pump system for self-priming and self-draining
  • Includes dual pumping pipes, suction lift, and fire extinguishers
Technical Specifications
Product Name Fuel Transport Tank Semi Trailer
Overall dimensions 10400×2500×3800(mm)
GVW 35000Kg
Total net weight 5200Kg
Loading capacity 29800Kg
Tank capacity 30000L to 60000L
Medium Fuel Such As: Gasoline, Kerosene, Diesel and Jet Fuel
Tank body thickness Stainless Steel 5182 5mm steel
End plate Stainless Steel 5182 6mm steel
Compartment 2-6 As Customer Need
Chassis brand HUATE
Tire specification 11.00R20 12PR,12R22.5 12PR
Transmission Manual
Axle Number 2
Additional Features
Manhole covers 500mm manhole cover, 3 sets with 3 breather valve
Discharge Valve 4' change into 3'
Dischage Pipe 4' seamless steel tube
Discharge Valve Box Totally-enclosed
Spill Discharges 1 at the rear
Bottom Valve 1 Set
Rear Ladder Dismountable
Walkway On the top
Standard Configuration
Chassis, Arc-shaped Body, Sub Frame, Rear Lifting Part, Loading Bunker, Pushing-out Plate, Sewage Tank, Climbing Ladder
Optional Features
Multifunctional Rear Lifting Part, Rear Handrail and Footplate, Other shapes of body etc. Custom colors and logos available per customer requirements.

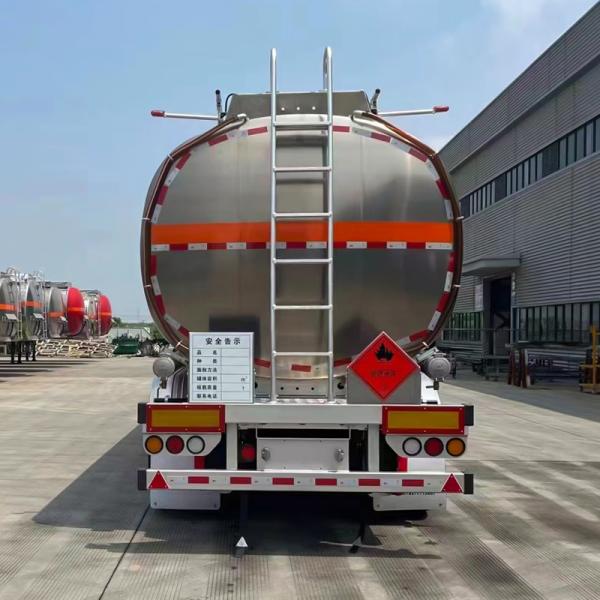

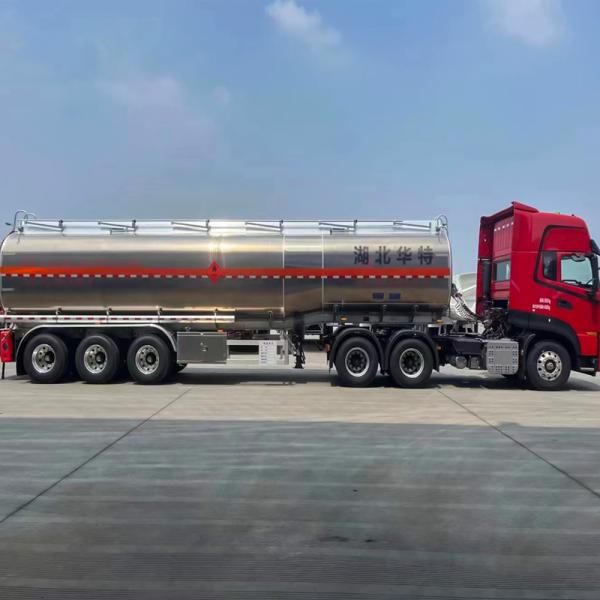

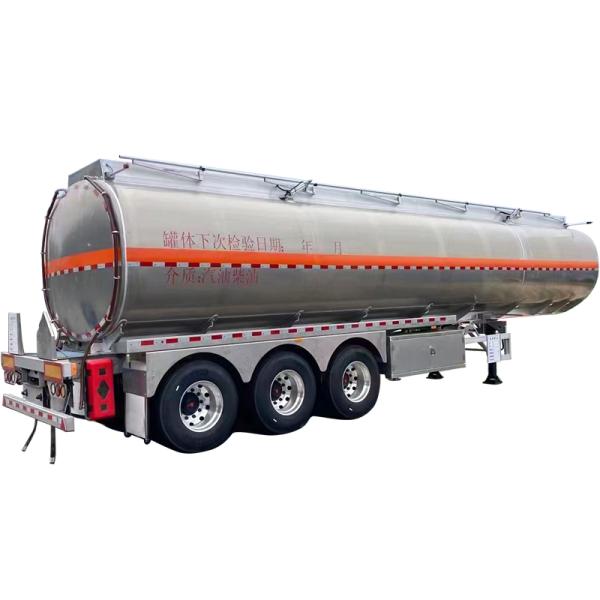

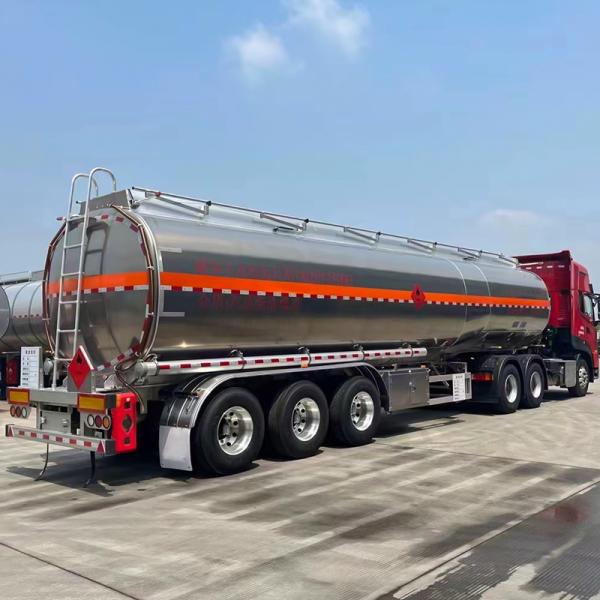

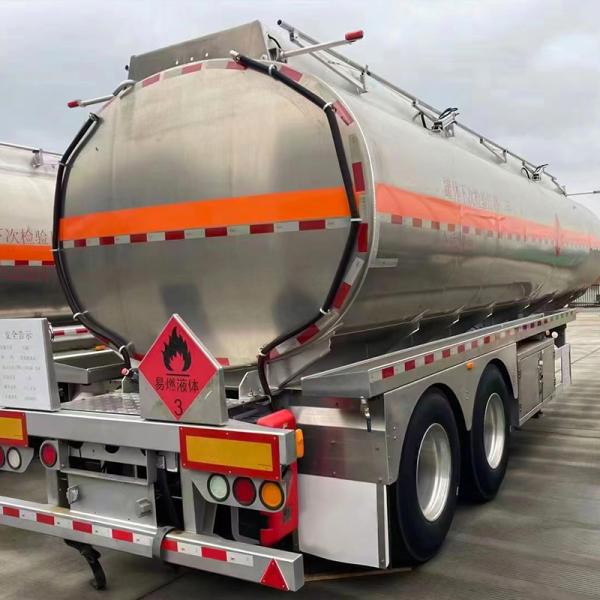

Product Gallery
