Carbon Steel 245 Chemical Liquid Tank Semi Trailer With 2 Axles 5000L Fuel Tank Trailer

Specifications

Place of Origin :

Hubei, China

Brand Name :

HUATE

Price :

$5,000/sets 1-9 sets

Use :

Truck Trailer

Type :

Semi-Trailer

Material :

Carbon Steel, Carbon Steel 245

Size :

6050 x 2430 x 2590 mm, 6050 x 2430 x 2590 mm

Max Payload :

25001-30000 kg

Product name :

Chemical Liquid Tank Semi Trailer

Storage :

Chemical Liquid ,Gasoline, Kerosene, Diesel and Jet Fuel

Axle :

2/3/4 Axle

Tire Specification :

11.00R20 12PR 12R22.5 12PR

Color :

Customer's Request

Loading capacity :

0-10 T

MOQ :

Packaging Details :

Wooden box

Delivery Time :

Payment Terms :

T/T

Supply Ability :

Meet large-scale orders

Certification :

CCC

Description

Carbon Steel 245 Chemical Liquid Tank Semi Trailer With 2 Axles 5000L Fuel Tank Trailer

Product Overview

The Chemical Tanker Trailer, also known as a highway tanker, is designed for the safe transportation and storage of oil products and chemical liquids. The tank body is constructed with multi-channel reinforced anti-wave baffle plates featuring through holes at the lower end to minimize fuel impact and enhance structural integrity.

Key Features

Tank construction options: aluminum, carbon steel, or stainless steel
Combined tank opening with self-locking small cover and breathing valve
Includes electrostatic grounding wire for safety
Fuel pump system enables self-priming and self-draining operation
Equipped with two separate pumping pipes and suction lift
Includes two fire extinguishers for enhanced safety

Technical Specifications

Product Name	Chemical Transport Tank Semi Trailer
Overall Dimensions	6050×2430×2590(mm)
GVW	4000Kg
Tank Capacity (CBM)	6
Medium	Chemical Liquid, Gasoline, Kerosene, Diesel and Jet Fuel
Tank Body Thickness	Carbon Steel 5mm Steel
End Plate	Carbon Steel 6mm Steel
Compartment	Customizable
Chassis Brand	HUATE
Approach/Departure Angle	/19°
Tire Specification	11.00R20 12PR, 12R22.5 12PR
Transmission	Manual
Axle Number	2,3,4 (Customizable)
Axle Brand	BPW/FUWA/ZY/L1/HO'S/SAF/PDME, 13ton Axle
Manhole Covers	Customizable
Discharge Valve Vox	Totally-enclosed
Spill Discharges	1 at the rear
Bottom Valve	1 Set
Rear Ladder	Dismountable
Walkway	On the top
Top Ladder	Standard
Pedal	Anti-Skid Pedal
Color and Logo	Customizable

Standard Configuration

Chassis, Arc-shaped Body, Sub Frame, Rear Lifting Part, Loading Bunker, Pushing-out Plate, Sewage Tank, Climbing Ladder

Optional Features

Multifunctional Rear Lifting Part, Rear Handrail and Footplate, Other shapes of body etc.

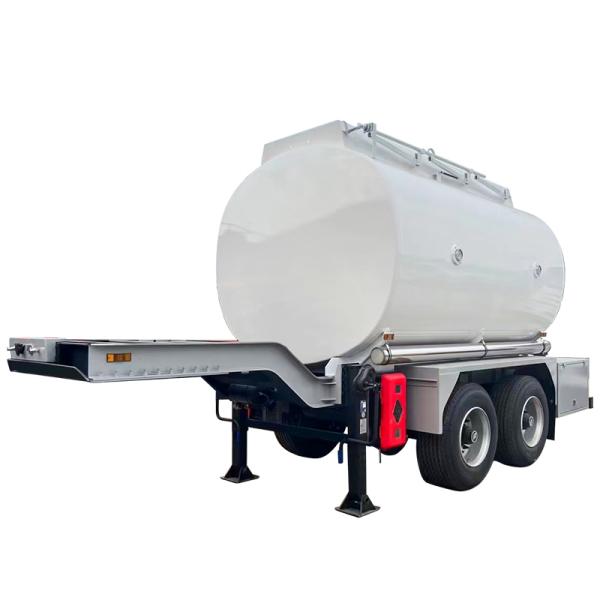

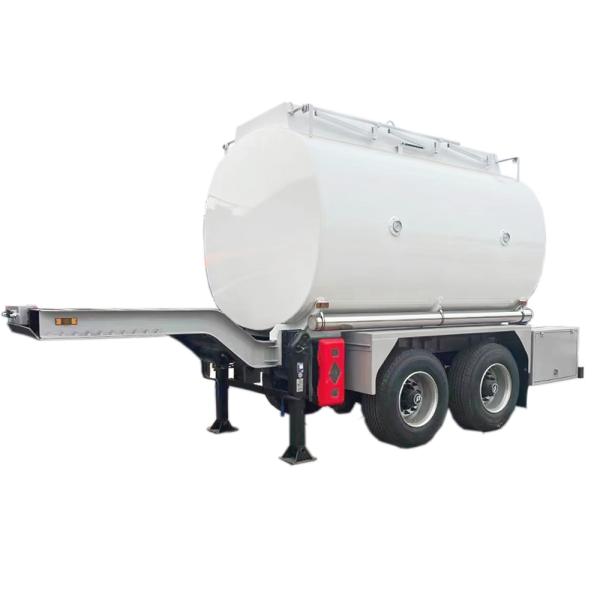

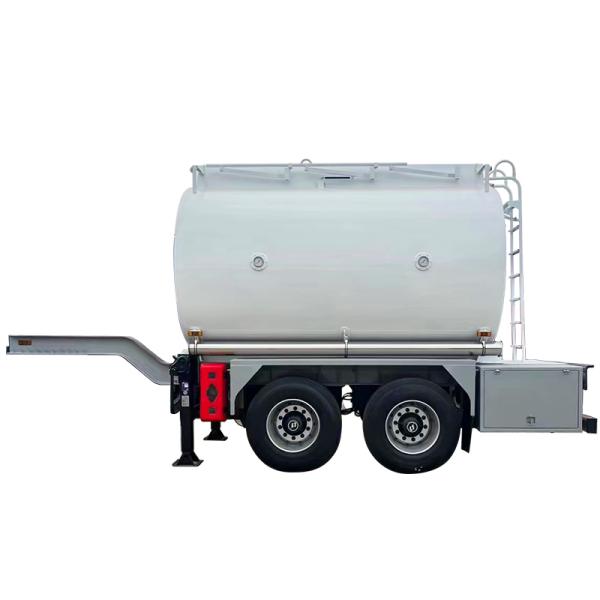

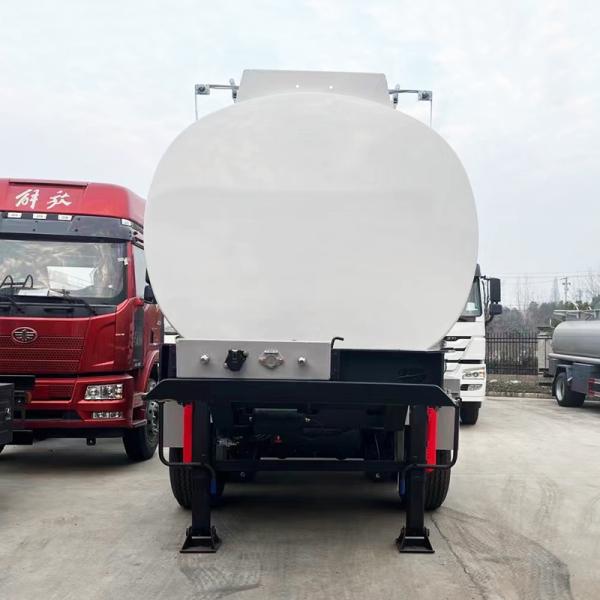

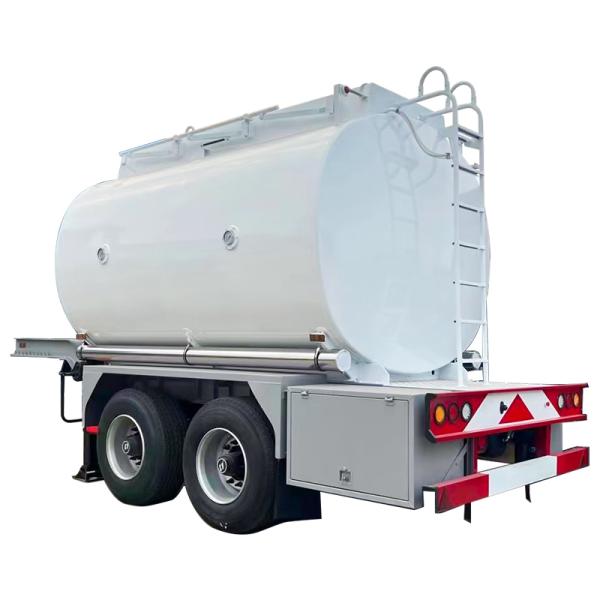

Product Gallery
