5 16 Inch Galvanized Steel Wire Cable For Overhead Power Transmission Line
5 16 Inch Galvanized Steel Wire Cable For Overhead Power Transmission Line
5 16 Inch Galvanized Steel Wire Cable For Overhead Power Transmission Line
5 16 Inch Galvanized Steel Wire Cable For Overhead Power Transmission Line
5 16 Inch Galvanized Steel Wire Cable For Overhead Power Transmission Line
5 16 Inch Galvanized Steel Wire Cable For Overhead Power Transmission Line
5 16 Inch Galvanized Steel Wire Cable For Overhead Power Transmission Line
5 16 Inch Galvanized Steel Wire Cable For Overhead Power Transmission Line
Specifications
Brand Name :
Litong Global
Model Number :
LT-161118
Certification :
ISO9001-2008
Place of Origin :
Anhui,China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
400tons/day
Packaging Details :
Standard export packing 5000ft/reel
Material :
High Carbon Wire Rod
Standard :
ASTM A 475
Grade :
EHS
Packing :
5000ft/drum
Certificate :
ISO9001-2008
Description

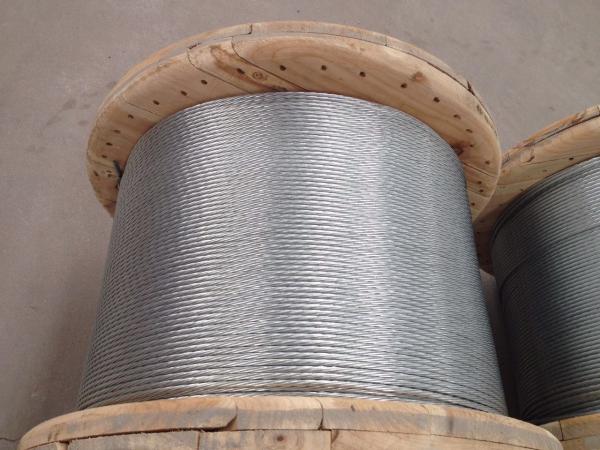

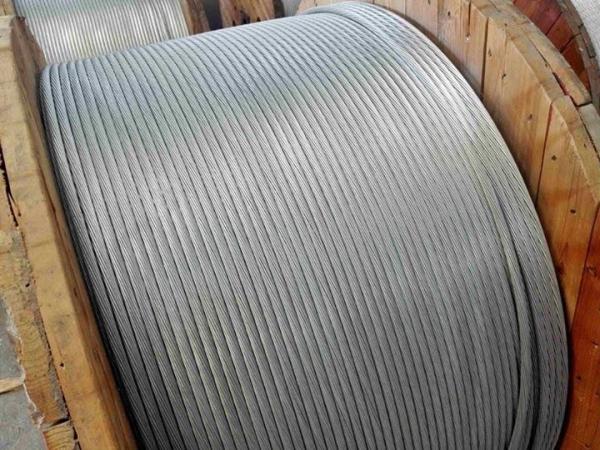

ASTM A475 Galvanized Steel Wire strand 5/16 inch (7/2.64mm)EHS

5 16 Inch Galvanized Steel Wire Cable For Overhead Power Transmission Line

The galvanized steel wire strand is used for overhead ground lines or electrical power transmission lines. Stay or guy wire strands are produced for use with poles, towers, or any other form of guying

5 16 Inch Galvanized Steel Wire Cable For Overhead Power Transmission Line

Standard
concentrically stranded Galvanized steel wire strand available in class "A", "B" and "C" galvanizing, "A" being the least heavy and "C" being the most heavy. Manufactured without welds per ASTM A-363 or with welds per ASTM A-475. Strands are formed to remain substantially in place when severed.

Galvanized Steel Wire Strand as per ASTM A 475

Norminal Diamater of Strand No. of Wires Diamater of Wire Tolerance of Wire Weight Zinc-coating Breaking Loading
mm - mm mm Kg/Km g/m2 KN
3.18 7 1.04 ±0.05 48 122 8.14
3.97 7 1.32 ±0.05 76 122 13.078
4.76 7 1.57 ±0.08 109 153 17.748
5.56 7 1.83 ±0.08 146 153 24.02
6.35 7 2.03 ±0.08 180 183 29.581
7.14 7 2.36 ±0.10 244 214 39.812
7.94 7 2.64 ±0.10 305 244 49.82
9.52 7 3.05 ±0.10 407 259 68.503
11.11 7 3.68 ±0.13 595 275 92.523
12.7 7 4.19 ±0.13 770 275 119.657

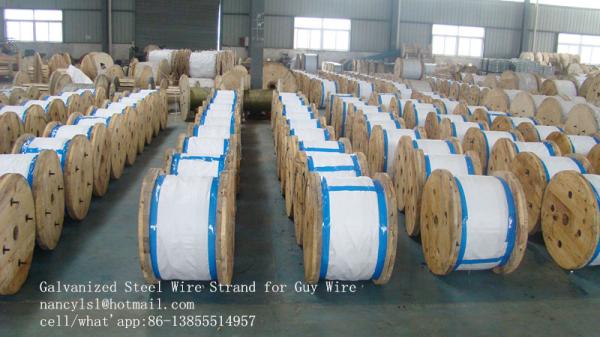

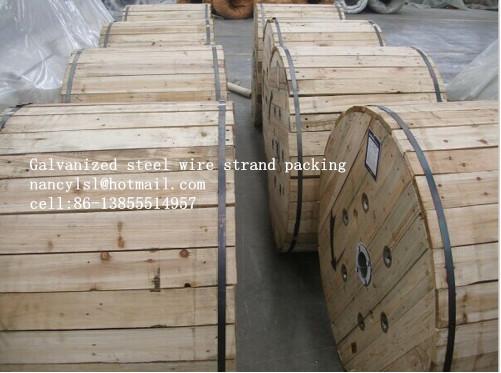

Package
Package in Export Wooden or Steel Wooden or Steel Drums

5 16 Inch Galvanized Steel Wire Cable For Overhead Power Transmission Line

Welcome to enquiry our Galvanized Steel Wire Strand

Attn:Ms Nancy

E-mail:nancylsl at hotmail.com

What'app:0086-13855514957
