High Carbon 7 16 Inch Galvanized Cable Wire , Strand Cable Wire For Overhead Guy Wire
High Carbon 7 16 Inch Galvanized Cable Wire , Strand Cable Wire For Overhead Guy Wire
High Carbon 7 16 Inch Galvanized Cable Wire , Strand Cable Wire For Overhead Guy Wire
High Carbon 7 16 Inch Galvanized Cable Wire , Strand Cable Wire For Overhead Guy Wire
High Carbon 7 16 Inch Galvanized Cable Wire , Strand Cable Wire For Overhead Guy Wire
High Carbon 7 16 Inch Galvanized Cable Wire , Strand Cable Wire For Overhead Guy Wire
High Carbon 7 16 Inch Galvanized Cable Wire , Strand Cable Wire For Overhead Guy Wire
High Carbon 7 16 Inch Galvanized Cable Wire , Strand Cable Wire For Overhead Guy Wire
High Carbon 7 16 Inch Galvanized Cable Wire , Strand Cable Wire For Overhead Guy Wire
High Carbon 7 16 Inch Galvanized Cable Wire , Strand Cable Wire For Overhead Guy Wire
Specifications
Brand Name :
Litong Global
Model Number :
LT-161125
Certification :
ISO9001-2008
Place of Origin :
Anhui,China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
400tons/day
Packaging Details :
Standard export packing in coil or on drum
Material :
High Carbon Wire Rod
Surface treatment :
Hot-dipped Galvanized
Tensile Strength :
1000-1750MPA
Weight of zinc-coating :
100-400g/m2
Packing :
In Coil or on Drum
Certificate :
ISO9001-2008
Description

7/16" Zinc-coated(Galvanized) Steel Wire Strand for guy wire,overhead transmission line

High Carbon 7 16 Inch Galvanized Cable Wire , Strand Cable Wire For Overhead Guy Wire

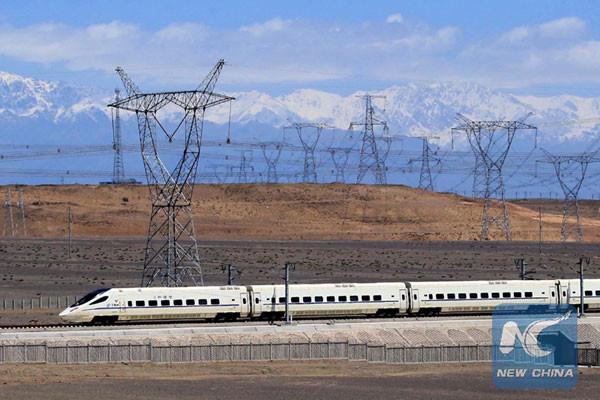

Application:The galvanized steel wire strand is used for overhead ground lines or electrical power transmission lines. Stay or guy wire strands are produced for use with poles, towers, or any other form of guying

High Carbon 7 16 Inch Galvanized Cable Wire , Strand Cable Wire For Overhead Guy Wire

Standard
concentrically stranded Galvanized steel wire strand available in class "A", "B" and "C" galvanizing, "A" being the least heavy and "C" being the most heavy. Manufactured without welds per ASTM A-363 or with welds per ASTM A-475. Strands are formed to remain substantially in place when severed.

Galvanized Steel Wire Strand as per ASTM A 475

Norminal Diamater of Strand No. of Wires Diamater of Wire Tolerance of Wire Weight Zinc-coating Breaking Loading
mm - mm mm Kg/Km g/m2 KN
3.18 7 1.04 ±0.05 48 122 8.14
3.97 7 1.32 ±0.05 76 122 13.078
4.76 7 1.57 ±0.08 109 153 17.748
5.56 7 1.83 ±0.08 146 153 24.02
6.35 7 2.03 ±0.08 180 183 29.581
7.14 7 2.36 ±0.10 244 214 39.812
7.94 7 2.64 ±0.10 305 244 49.82
9.52 7 3.05 ±0.10 407 259 68.503
11.11 7 3.68 ±0.13 595 275 92.523
12.7 7 4.19 ±0.13 770 275 119.657

Package

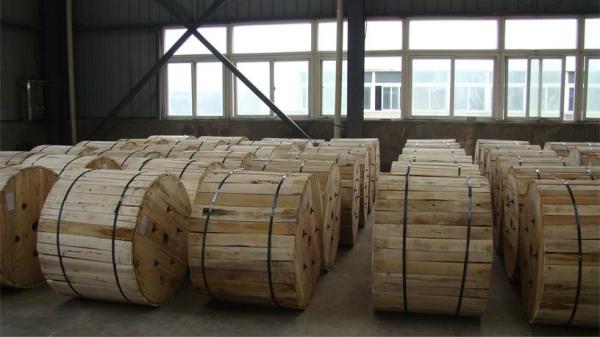

Package in Export Wooden or Steel Wooden or Steel Drums

High Carbon 7 16 Inch Galvanized Cable Wire , Strand Cable Wire For Overhead Guy Wire

Welcome to enquiry our Galvanized Steel Wire Strand

Attn:Ms Nancy

E-mail:nancylsl at hotmail.com

What'app:0086-13855514957
