Specifications
Brand Name :
Litong Global
Model Number :
LT-161126
Certification :
ISO9001-2008
Place of Origin :
Anhui,China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
400tons/day
Packaging Details :
Standard export packing 100m/coil or as per customer's request
Material :
Middle&High Carbon Wire Rod
Standard :
BS183
Wire Gauge :
1.0mm-4.8mm
Steel Grade :
45$,60#,65#,70#,80#
Packing :
100m/coil
Description

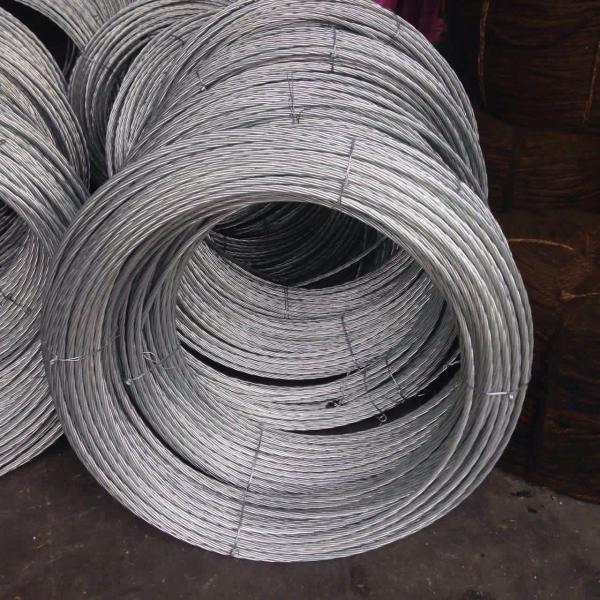

7/4.0mm Galvanized Steel Wire Strand for Stay Wire as per BS183

7 Strand Galvanized Steel Wire Cable For Stay Wire Grade 1150 As Per BS 183

Specification

As per BS183

BS 183 FOR STAY WIRE
CONSTRUCTION,GRADES AND MIN. BREAKING LOADS OF GENERAL PIRPOSE GALVANIZED STEEL WIRE STRAND
Construction 　 Approx.Strand Dia. 　 　 　 Min.Breaking Load of Strand 　 　 　 　 　
　 　 　 　 Grade350 Grade 480 Grade700 Grade850 Grade1000 Grade1150 Grade1300 Approx.mass
　 　 mm 　 KN KN KN KN KN KN KN kg/1000m
7/1.25 　 3.8 　 3.01 4.1 6 _ 8.55 9.88 11.15 67
7/1.4 　 4.2 　 3.75 5.17 7.54 9.16 10.75 12.35 14 84
7/1.6 　 4.8 　 4.9 6.75 9.85 11.95 14.1 16.2 18.3 110
7/1.8 　 5.4 　 6.23 8.55 12.45 _ 17.8 20.5 23.2 140
7/2.0 　 6 　 7.7 10.55 15.4 _ 22 25.3 38.6 170
7/2.36 　 7.1 　 10.7 14.7 21.4 _ 30.6 35.2 39.8 240
7/2.65 　 8 　 13.5 18.5 27 _ 38.6 44.4 50.2 300
7/3.0 　 9 　 17.3 23.75 34.65 _ 49.5 56.9 64.3 392
7/3.15 　 9.5 　 19.1 26.2 38.2 _ 54.55 62.75 70.9 430
7/3.25 　 9.8 　 20.3 27.85 40.65 _ 58.05 66.8 75.5 460
7/3.65 　 11 　 25.6 35.15 51.25 _ 73.25 84.2 95.2 570
7/4.0 　 12 　 30.9 42.2 61.6 _ 88 101 114 690
7/4.25 　 12.8 　 34.75 47.68 69.5 _ 99.3 114 129 780
7/4.75 　 14 　 43.4 59.45 86.8 _ 124 142.7 161.3 970
19/1.6 　 8 　 13.37 18.34 26.75 _ 38.2 43.93 49.66 300
19/2.0 　 10 　 20.9 28.65 41`.78 50.74 56.69 68.64 77.6 470
19/2.5 　 12.5 　 32.65 44.8 65.29 79.28 93.27 107.3 121.3 730
19/3.0 　 15 　 47 64.5 94 114.1 134.3 154.5 174.6 1050
19/3.55 　 17.8 　 65.8 90.27 131.6 159.9 188 216.3 244.5 1470

Application:The galvanized steel wire strand is used for overhead ground lines or electrical power transmission lines. Stay or guy wire strands are produced for use with poles, towers, or any other form of guying

7 Strand Galvanized Steel Wire Cable For Stay Wire Grade 1150 As Per BS 183

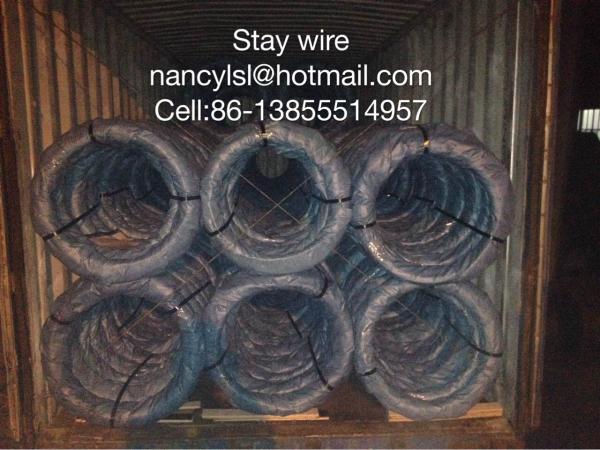

Packing &Loading

7 Strand Galvanized Steel Wire Cable For Stay Wire Grade 1150 As Per BS 183

Welcome to enquiry our stay wire

Attn:Ms Nancy

What'app:0086-13855514957

E-mail:nancylsl at hotmail.com
