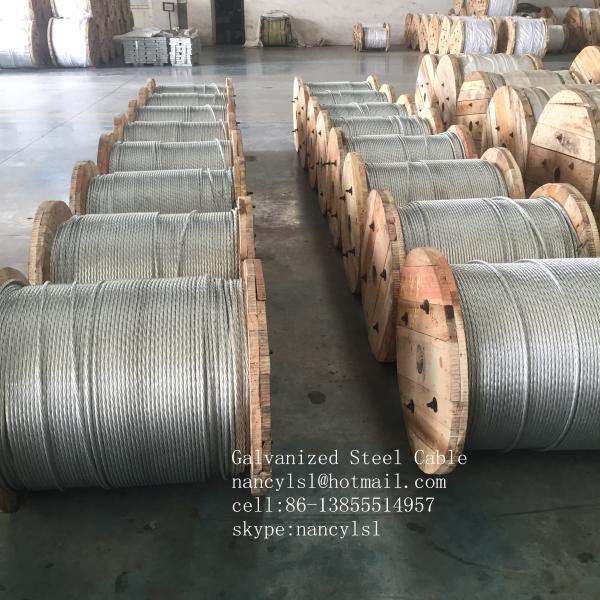

Extra High Strength Galvanized 7 Strand 19 Strand Beading Wire With Long Lifespan
Extra High Strength Galvanized 7 Strand 19 Strand Beading Wire With Long Lifespan
Extra High Strength Galvanized 7 Strand 19 Strand Beading Wire With Long Lifespan
Extra High Strength Galvanized 7 Strand 19 Strand Beading Wire With Long Lifespan
Extra High Strength Galvanized 7 Strand 19 Strand Beading Wire With Long Lifespan
Extra High Strength Galvanized 7 Strand 19 Strand Beading Wire With Long Lifespan
Extra High Strength Galvanized 7 Strand 19 Strand Beading Wire With Long Lifespan
Extra High Strength Galvanized 7 Strand 19 Strand Beading Wire With Long Lifespan
Extra High Strength Galvanized 7 Strand 19 Strand Beading Wire With Long Lifespan
Extra High Strength Galvanized 7 Strand 19 Strand Beading Wire With Long Lifespan
Extra High Strength Galvanized 7 Strand 19 Strand Beading Wire With Long Lifespan
Extra High Strength Galvanized 7 Strand 19 Strand Beading Wire With Long Lifespan
Specifications
Brand Name :
Litong Global
Model Number :
LT-1611242
Certification :
ISO9001-2008
Place of Origin :
Anhui ,China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
400tons/day
Packaging Details :
Standard export packing in coil or on drum
Steel Grade :
45#; 55#, 60#, 65#,70#
Standard :
ASTM,BS
Wire Gauge :
1.0mm-4.8mm
Type :
Drawn wire
Application :
ACSR Conductor
Surface treatment :
hot-dipped Galvanized
Description

Galvanized Steel Wire Strand for ACSR Conductor as per ASTM A 475

Norminal Diamater of Strand No. of Wires Diamater of Wire Tolerance of Wire Weight Zinc-coating Breaking Loading
mm - mm mm Kg/Km g/m2 KN
3.18 7 1.04 ±0.05 48 122 8.14
3.97 7 1.32 ±0.05 76 122 13.078
4.76 7 1.57 ±0.08 109 153 17.748
5.56 7 1.83 ±0.08 146 153 24.02
6.35 7 2.03 ±0.08 180 183 29.581
7.14 7 2.36 ±0.10 244 214 39.812
7.94 7 2.64 ±0.10 305 244 49.82
9.52 7 3.05 ±0.10 407 259 68.503
11.11 7 3.68 ±0.13 595 275 92.523
12.7 7 4.19 ±0.13 770 275 119.657

ASTM A 475-2003
Norminal Diameter No.of wires Diameter of wire Tolerance of wiere Weight Zinc coating Broken Loading
Inch mm pcs mm ± mm Kgs/100M G/M2 Lbf Kn
1/8" 3.18 7 1.04 0.05 48 122 1830 8.14
5/32" 3.97 7 1.32 0.05 76 122 2940 13.078
3/16" 4.76 7 1.57 0.08 109 153 3990 17.748
7/32" 5.56 7 1.83 0.08 146 153 5400 24.02
1/4" 6.35 7 2.03 0.08 180 183 6650 29.581
9/32" 7.14 7 2.36 0.10 244 214 8950 39.812
5/16" 7.94 7 2.64 0.10 305 244 11200 49.82
3/8" 9.52 7 3.05 0.10 407 259 15400 68.503
7/16" 11.11 7 3.68 0.13 595 275 20800 92.523
1/2" 12.7 7 4.19 0.13 770 275 26900 119.657
9/16" 14.29 7 4.78 0.13 1000 305 35000 155.688
5/8" 15.88 7 5.26 0.13 1211 305 42400 188.605
