Zinc Coated Steel Wire Cable Strand 3 8 Inch ASTM A 475 EHS Class A Coating
Zinc Coated Steel Wire Cable Strand 3 8 Inch ASTM A 475 EHS Class A Coating
Zinc Coated Steel Wire Cable Strand 3 8 Inch ASTM A 475 EHS Class A Coating
Zinc Coated Steel Wire Cable Strand 3 8 Inch ASTM A 475 EHS Class A Coating
Zinc Coated Steel Wire Cable Strand 3 8 Inch ASTM A 475 EHS Class A Coating
Zinc Coated Steel Wire Cable Strand 3 8 Inch ASTM A 475 EHS Class A Coating
Zinc Coated Steel Wire Cable Strand 3 8 Inch ASTM A 475 EHS Class A Coating
Zinc Coated Steel Wire Cable Strand 3 8 Inch ASTM A 475 EHS Class A Coating
Specifications
Brand Name :
Litong Global
Model Number :
LT-161114
Certification :
ISO9001-2008
Place of Origin :
Anhui,China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
400tons/day
Packaging Details :
Standard export packing on drum
Material :
High Carbon Wire Rod
Surface treatment :
Hot-dipped Galvanized
Min.Breaking Strength :
68.503KN
Packing :
5000ft/drum
Certificate :
ISO9001-2008
Description

ASTM A475 Galvanized Steel Wire strand 3/8 inch EHS

Zinc Coated Steel Wire Cable Strand 3 8 Inch ASTM A 475 EHS Class A Coating

Application

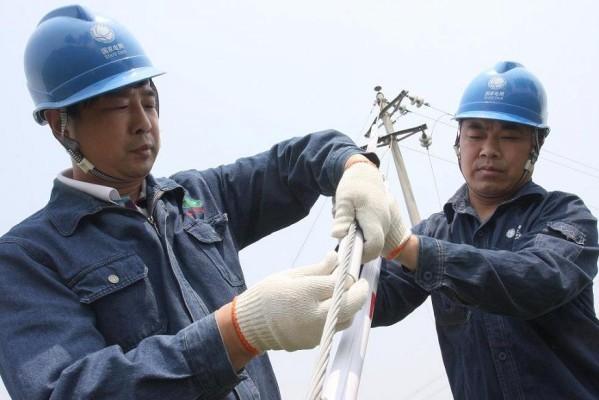

The galvanized steel wire strand is used for overhead ground lines or electrical power transmission lines. Stay or guy wire strands are produced for use with poles, towers, or any other form of guying.
Zinc Coated Steel Wire Cable Strand 3 8 Inch ASTM A 475 EHS Class A Coating
Standard
concentrically stranded Galvanized steel wire strand available in class "A", "B" and "C" galvanizing, "A" being the least heavy and "C" being the most heavy. Manufactured without welds per ASTM A-363 or with welds per ASTM A-475. Strands are formed to remain substantially in place when severed.
Specification
ASTM A475, ASTM A363, BS183:1972
Galvanized Steel Wire Stand ASTM-A475
Number of Wires/Dia. Approx.Strand Dia. Siemem Martin Grade High Strength Grade Extra-high Strength Grade Approx.Weight
Inch mm KN KN KN kg/km
3/2.64 7/32 5.56 10.409 15.569 21.796 131
3/3.05 1/4 6.35 13.523 21.04 29.981 174
3/3.05 1/4 6.35 - - - 174
3/3.30 9/32 7.14 15.035 23.398 33.362 204
3/3.68 5/16 7.94 18.193 28.246 40.479 256
3/4.19 3/8 9.52 24.732 37.187 52.489 328
7/1.04 1/8 3.18 4.048 5.916 8.18 49
7/1.32 5/32 3.97 6.539 9.519 13.078 76
7/1.57 3/16 4.76 8.452 12.677 17.748 108
7/1.65 3/16 4.76 - - - 118
7/1.83 3/16 5.56 11.387 17.126 24.02 145
7/2.03 7/32 6.35 14.012 21.129 29.581 181
7/2.36 1/4 7.14 18.905 28.469 39.812 243
7/2.64 9/32 7.94 23.798 35.586 49.82 305
7/2.77 5/16 7.94 - - - 335
7/3.05 3/8 9.52 30.915 48.04 68.503 407

Production process

Zinc Coated Steel Wire Cable Strand 3 8 Inch ASTM A 475 EHS Class A Coating

Package

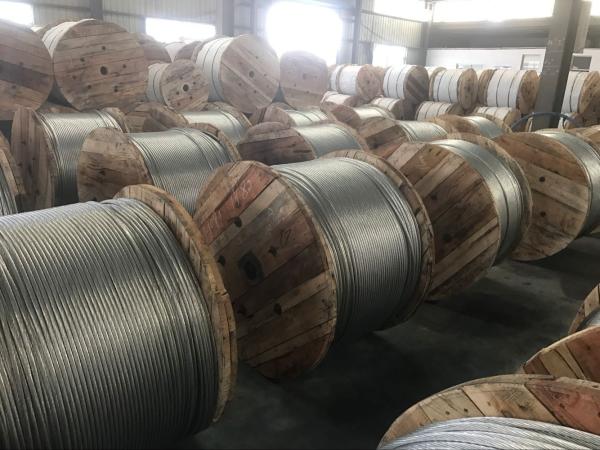

Package in Export Wooden or Steel Wooden or Steel Drums

Zinc Coated Steel Wire Cable Strand 3 8 Inch ASTM A 475 EHS Class A Coating

Welcome to enquiry our products

Nancy

nancylsl at hotmail.com

What'sapp:0086-13855514957
