640×512 15μm TEC Cooled SWIR InGaAs Camera 50fps GigE GS-SW640171550-C-G
640×512 15μm TEC Cooled SWIR InGaAs Camera 50fps GigE GS-SW640171550-C-G
Specifications
Model Number :
GS-SW640171550-C-G
MOQ :
1 Piece
Payment Terms :
T/T
Price :
Contact Us
Certification :
CE; ISO
Brand Name :
Gatherstar (Leading)
Place of Origin :
China
Description
1. Introduction

GS-SW640171550-C-G is high-performance TEC cooled short-wave infrared camera covering 0.9–1.7μm spectral band. It adopts 640×512 InGaAs FPA with 15μm pixel size, supporting max 50Hz full-frame frame rate. Standard GigE RJ45 digital transmission is equipped; PAL/NTSC analog video via SMA interface can be customized synchronously. The camera is fitted with adjustable TEC cooling module to reduce dark current interference during long continuous capturing. Arbitrary-position ROI function is supported to lift frame rate for fast-moving small targets, and onboard centroid tracking can be integrated upon project demand. Interchangeable C/CS lens mount enables seamless matching with spectrometers and custom optoelectronic equipment. Exclusive display control software and complete cross-platform SDK with demo codes are supplied for secondary development. All cameras pass ISO & CE quality inspection, OEM housing and function customization service is supported.

2. Advantages
  1. High-sensitivity InGaAs chip, quantum efficiency over 70% within 1.0μm–1.6μm waveband
  2. 640×512 resolution with 15μm pixel, stable 50Hz full-frame continuous imaging
  3. Adjustable built-in TEC cooling to maintain uniform low-noise image output
  4. Independent auto/manual exposure & gain control, real-time non-uniformity and dead pixel correction
  5. GigE high-speed 8/14bit digital transmission, analog video customizable on request
  6. Freely adjustable arbitrary ROI to accelerate frame rate for high-speed target capture
  7. Global shutter, compatible with dual TTL/LVDS external trigger signals
  8. Optional onboard centroid tracking dedicated to laser spot detection scenarios
  9. Interchangeable C/CS lens mount, reserved M3 & 1/4″ multi-standard mounting holes
  10. Unified 60×60×67mm compact housing, wide -40℃~+55℃ operating temperature range
3. Technical Specifications
ModelGS-SW640171550-C-G
Detector typeInGaAs FPA
Spectral range0.9μm ~ 1.7μm
Resolution640 x 512
Pixel size15μm
Active area9.6mm x 7.68mm
Quantum efficiency>70%@(1.0μm-1.6μm)
Pixel Operability＞99.5%
Cooler typeTEC Cooled
Maximum frame rate50Hz
ROISupport ROI at any position
Shutter typeGlobal shutter
Exposure time1μs—1/frame
Digital output format8/14bit GigE
Analog video outputPAL/NTSC (Optional, customized upon request)
Onboard image processingAuto/Manual Exposure; Auto/Manual Gain; Non-uniformity Correction; Pixels correction
Image functionFrame rate selection, synchronization method selection, contrast/brightness adjustment (manual), enhancement, test image, information saved, Cross indication.
Electrical interfaceHR10
Digital interfaceRJ45@GigE
Analog interfaceSMA (Optional customized part)
External trigger portTTL/LVDS
Lens mountC/CS
Tripod mount8×M3/1/4″-20
Power input12V DC
Power consumption＜5W TEC off
Operation temperature-40℃ ~ +55℃
Storage temperature-50℃ ~ +65℃
Weight≤310g(no lens)
Dimensions≤60mm x 60mm x 67mm

Note: Specifications are for reference only and subject to change without prior notice.

4. Applications

Low-light imaging, Medical & scientific spectral imaging, Hyperspectral inspection, Laser spot tracking imaging, High-temperature thermal detection, Remote sensing search & rescue, Camouflage target identification, Industrial garbage sorting, Semiconductor internal defect inspection

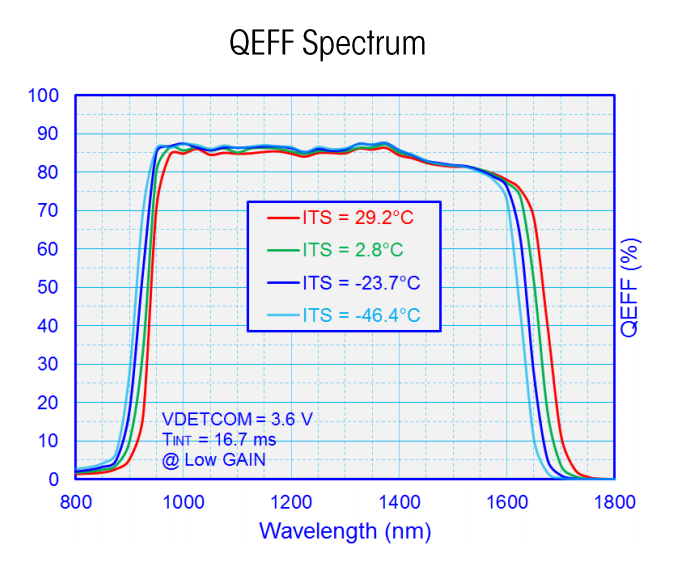

5. Quantum Efficiency
640×512 15μm TEC Cooled SWIR InGaAs Camera 50fps GigE GS-SW640171550-C-G

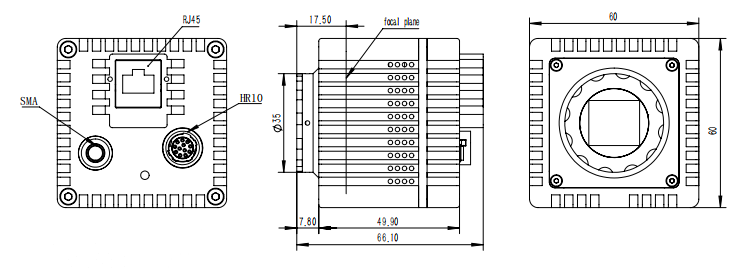

6. Dimensions
640×512 15μm TEC Cooled SWIR InGaAs Camera 50fps GigE GS-SW640171550-C-G 640×512 15μm TEC Cooled SWIR InGaAs Camera 50fps GigE GS-SW640171550-C-G
7. FAQs

Q1: What cooling configuration does this camera adopt?

A: It is equipped with adjustable built-in TEC cooling to restrain dark current and guarantee stable long-exposure imaging.

Q2: Can laser centroid tracking function be integrated?

A: Yes, the onboard centroid tracking algorithm can be added according to project requirements.

Q3: What external trigger signals are supported?

A: It supports both TTL and LVDS dual-channel external trigger for synchronous testing equipment.

Q4: Can SDK and OEM customization be provided?

A: Matching display software and complete cross-platform SDK are supplied, customized housing and imaging functions are available for OEM orders.
