640×512 15μm TEC Cooled SWIR InGaAs Camera 50fps Camera Link GS-SW640171550-C-CL
640×512 15μm TEC Cooled SWIR InGaAs Camera 50fps Camera Link GS-SW640171550-C-CL
Specifications
Model Number :
GS-SW640171550-C-CL
MOQ :
1 Piece
Payment Terms :
T/T
Price :
Contact Us
Certification :
CE; ISO
Brand Name :
Gatherstar (Leading)
Place of Origin :
China
Description
1. Introduction

GS-SW640171550-C-CL is a high-performance TEC cooled InGaAs SWIR camera operating within the 0.9–1.7μm spectral band with simple operation. It adopts a 640*512 InGaAs FPA with 15μm pixel size, supporting a maximum full-resolution frame rate of 50Hz. Mini Camera Link digital signal is standard output configuration; PAL/NTSC analog video interface can be customized according to project demands. This camera is equipped with built-in TEC cooling with dual automatic and manual cooling adjustment modes to fit various working environments. It supports arbitrary-position ROI readout to boost frame rate as required, and features replaceable C/CS lens mount for seamless matching with customized optical instruments and spectrometers. Developed and manufactured by Gatherstar Optoelectronic with 15 years of optoelectronic R&D experience, all cameras pass strict ISO & CE quality inspection.

2. Advantages
  1. High-sensitivity InGaAs FPA with quantum efficiency higher than 70% within 1.0μm–1.6μm waveband
  2. 640*512 high resolution & 15μm small pixel to capture subtle target details
  3. Built-in TEC cooling with automatic and manual dual cooling adjustment modes
  4. Independent automatic & manual gain adjustment, manually adjustable image contrast
  5. Onboard real-time non-uniformity pixel correction for uniform imaging results
  6. Standard Mini Camera Link digital output; PAL/NTSC analog video is optional customized function
  7. Arbitrary ROI setting to increase frame rate for high-speed target tracking
  8. Supports integrated on-board tracking functionality
  9. Interchangeable C/CS lens mount with reserved M3 / 1/4″-20 multi-standard mounting holes
  10. Compact unified housing, wide environmental adaptability for laboratory and field long-term use
3. Technical Specifications
Model GS-SW640171550-C-CL
Detector type InGaAs FPA
Spectral range 0.9μm ~ 1.7μm
Resolution 640 x 512
Pixel size 15μm
Active area 9.6mm x 7.68mm
Quantum efficiency >70% @1.0μm-1.6μm
Pixel operability ＞99.5%
Cooler type TEC Cooled
Maximum frame rate 50Hz
ROI Supports ROI at any position
Shutter type Global shutter
Exposure time 1μs — 1/frame
Digital output format 8/16bit Mini Camera Link
Analog video output PAL/NTSC (Optional, customized upon request)
Onboard image processing Auto/Manual Exposure; Auto/Manual Gain; Non-uniformity Correction; Pixels correction
Image function Frame rate selection, synchronization method selection, contrast/brightness manual adjustment, image enhancement, test image output, parameter storage, crosshair indication
Electrical Interface HR10
Digital interface Mini Camera Link
Analog interface SMA (Optional customized part)
External trigger RS422
Control port RS422
Lens mount C / CS interchangeable mount
Mechanical mounting 8*M3 / 1/4″-20 mounting holes
Power input 12V DC
Power consumption ＜5 W (TEC off)
Operation temperature -40℃ ~ +55℃
Storage temperature -50℃ ~ +65℃
Weight ≤300g (without lens)
Dimensions ≤60mm x 60mm x 63mm

Note: Specifications are for reference only and subject to change without prior notice.

4. Applications

Low-light imaging, Medical & scientific spectral imaging, Hyperspectral inspection, Laser spot tracking imaging, High-temperature thermal detection, Remote sensing search & rescue, Camouflage target identification, Industrial garbage sorting, Semiconductor internal defect inspection

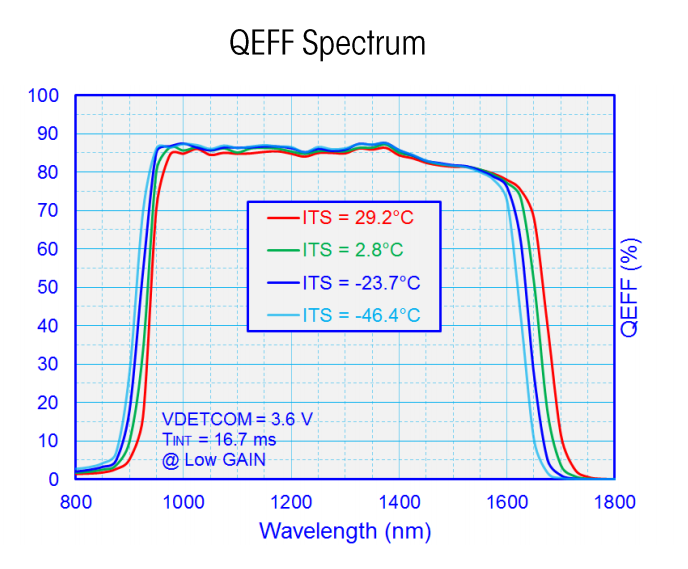

5. Quantum Efficiency
640×512 15μm TEC Cooled SWIR InGaAs Camera 50fps Camera Link GS-SW640171550-C-CL

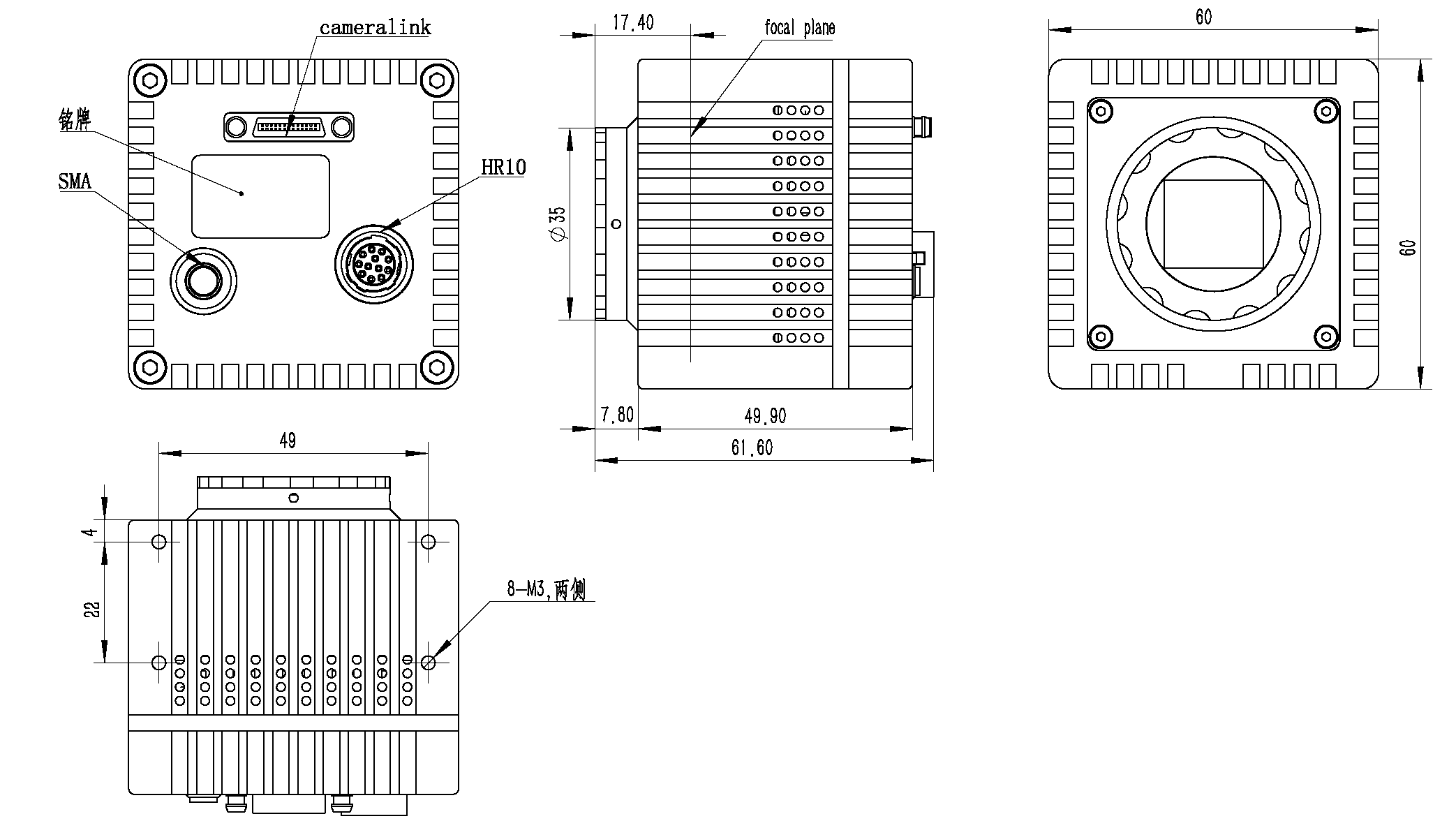

6. Dimensions
640×512 15μm TEC Cooled SWIR InGaAs Camera 50fps Camera Link GS-SW640171550-C-CL
7. FAQs
Q1: Can this camera support analog video output?
A: Mini Camera Link digital output is standard. PAL/NTSC analog video with SMA interface is optional, we can add this function based on your project demands.
Q2: Can ROI function raise the working frame rate?
A: Arbitrary ROI area is supported. Restricting the readout region can effectively improve the working frame rate for high-speed target observation and tracking.
Q3: What cooling system does this camera adopt?
A: This camera is equipped with built-in TEC cooling system, supporting automatic and manual cooling modes to match various working scenarios.
Q4: What is your standard product warranty policy?
A: We offer a 1-year standard warranty for all cameras, plus long-term technical support and spare parts supply after sales.
