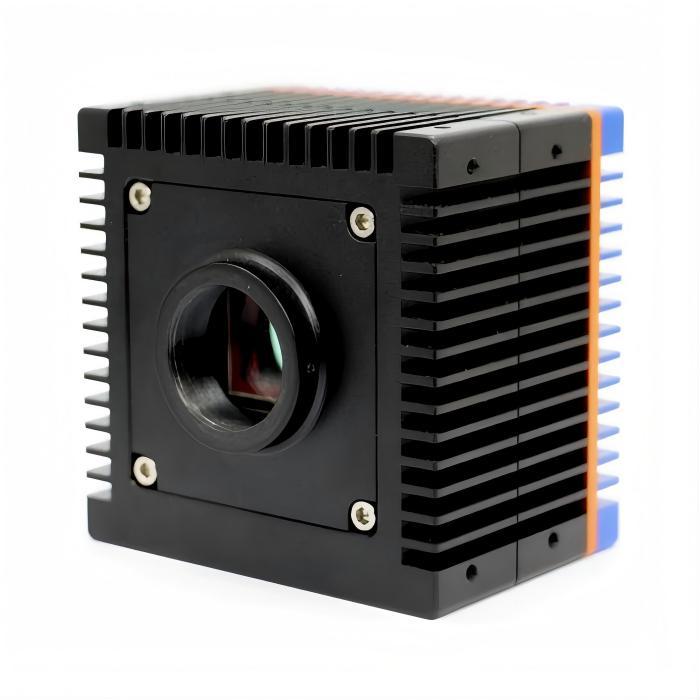

GS-SW6401715400K-C-CL is a high-speed TEC cooled InGaAs SWIR camera working within 0.9–1.7μm infrared waveband. This camera carries 640×512 InGaAs FPA with 15μm pixel size, achieving maximum 400Hz full-resolution frame rate. Base Mini Camera Link acts as default digital output channel; SD-SDI analog video via SMA interface can be added based on project requirements. Equipped with adjustable auto & manual TEC cooling modes, the unit effectively reduces dark noise under various working environments. Users can define arbitrary ROI regions to further boost capture frame rate. Optional centroid tracking function with external trigger synchronization is supported, perfectly matching laser tracking, high-speed testing and other optical equipment with standard C lens mount. Produced by Gatherstar Optoelectronic with long-term infrared imaging R&D experience, each camera passes strict quality certification.

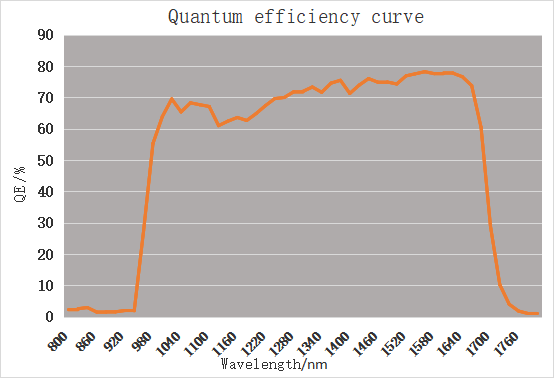

1. High-sensitivity InGaAs chip, quantum efficiency exceeds 70% between 1.0μm and 1.6μm
2. 640×512 high resolution & 15μm pixel, stable 400Hz full-frame high-speed capturing
3. Built-in TEC cooling design to lower dark current and maintain consistent image quality
4. Independent automatic & manual exposure/gain adjustment, manual image contrast tuning
5. Onboard real-time non-uniformity correction and bad pixel compensation algorithm
6. Standard Base Camera Link digital transmission; SD-SDI SMA output is optional customized function
7. Customizable ROI window to accelerate frame rate for fast-moving object observation
8. Global shutter structure, complete built-in image enhancement processing functions
9. Optional centroid tracking, tracking accuracy controlled within 1 pixel

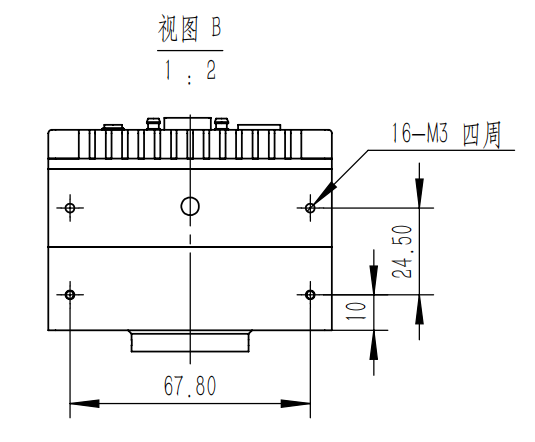

10. Standard M3 installation holes, reliable performance in wide temperature range

Note: Specifications are for reference only and subject to change without prior notice.

Security monitoring, High-speed imaging, Remote sensing search & rescue, Camouflage target identification, Laser spot tracking imaging
