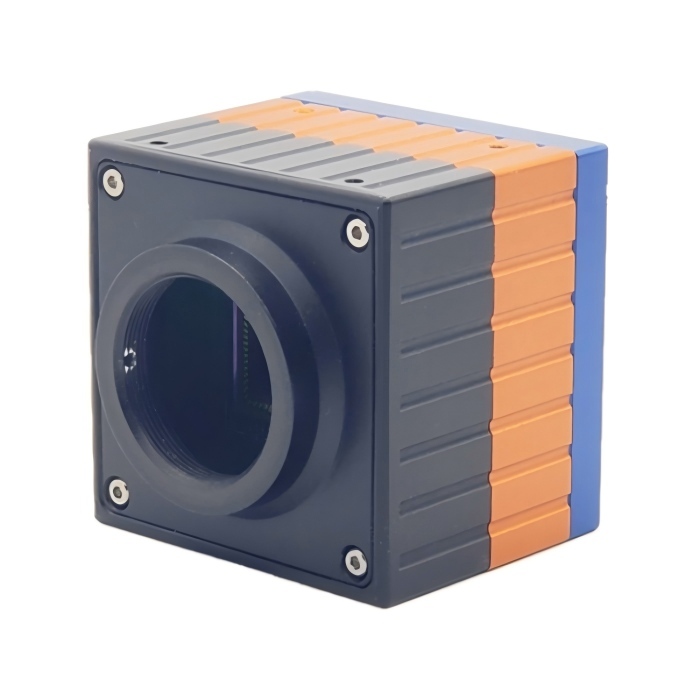

GS-SW6401715150-UC-CL is a high-performance uncooled InGaAs SWIR camera working in the 0.9–1.7μm spectral band with simple operation. It adopts a 640×512 InGaAs FPA with 15μm pixel size, supporting a maximum full-resolution frame rate of 150Hz. Mini Camera Link digital signal serves as standard output; PAL/NTSC analog video interface can be customized according to project demands. With ultra-compact and lightweight mechanical structure, this camera can be flexibly integrated into various photoelectric systems. It supports arbitrary-position ROI readout to raise frame rate as required, and comes with standard C lens mount for convenient optical matching. Developed and manufactured by Gatherstar Optoelectronic with 15 years of optoelectronic R&D experience, all cameras pass strict ISO & CE quality inspection.

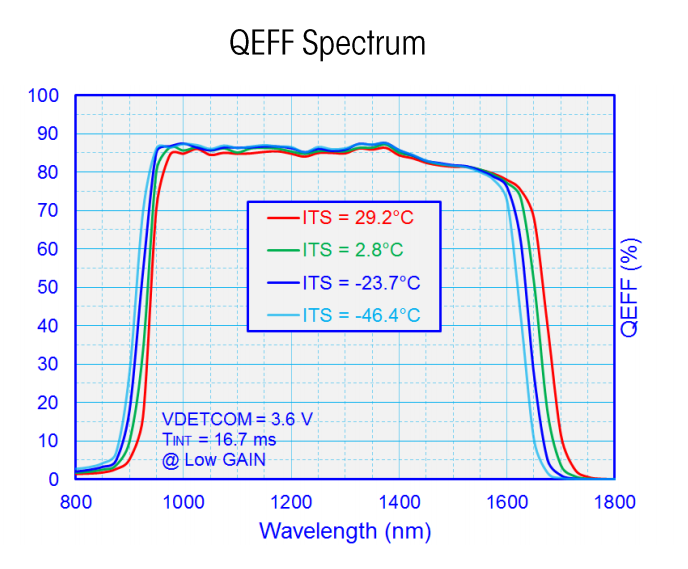

1. High-sensitivity InGaAs FPA with quantum efficiency higher than 70% within 1.0μm–1.6μm waveband
2. 640×512 resolution & 15μm tiny pixel for capturing delicate infrared target details
3. Uncooled energy-saving structure, total power consumption below 3W for long-time continuous operation
4. Independent automatic & manual gain adjustment, manually adjustable image contrast
5. Onboard real-time non-uniformity pixel correction for uniform imaging effect
6. Standard Mini Camera Link digital output; PAL/NTSC analog video is optional customized function
7. Arbitrary ROI setting to improve frame rate for high-speed target tracking
8. Supports integrated on-board tracking functionality

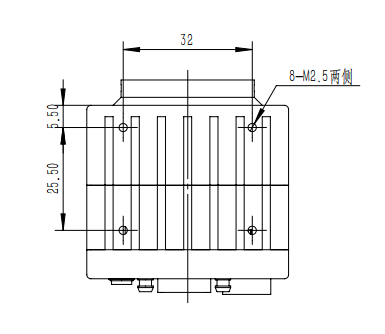

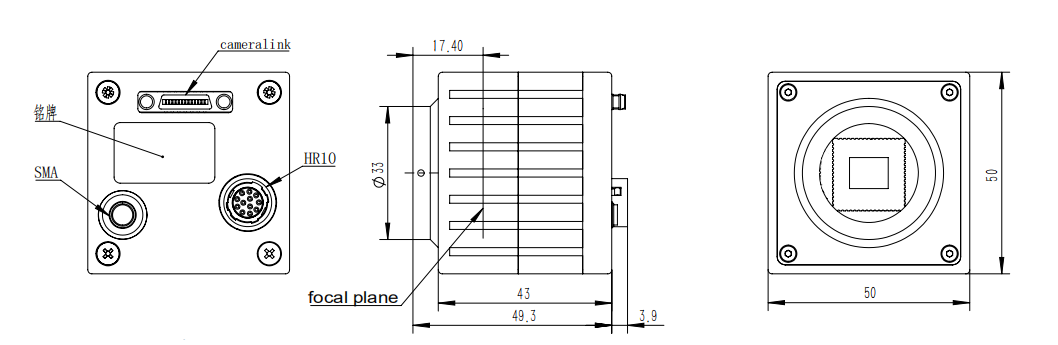

9. Standard C lens mount and reserved M2.5 multi-point mounting holes
10. Mini lightweight housing, suitable for portable field and laboratory equipment

Note: Specifications are for reference only and subject to change without prior notice.

• Low-light imaging
• Medical & scientific spectral imaging
• Hyperspectral inspection
• Laser spot tracking imaging
• High-temperature thermal detection
• Remote sensing search & rescue
• Camouflage target identification
• Industrial garbage sorting
• Semiconductor internal defect inspection

Q1: Does this camera support analog video output?

A: Mini Camera Link digital output is standard. PAL/NTSC analog video with SMA interface is optional and customizable based on your project demands.

Q2: Can ROI function increase working frame rate?

A: Arbitrary ROI area is supported. Restricting the readout region can effectively lift frame rate for high-speed target observation and tracking.

Q3: Does this camera adopt cooling system? What is its power consumption?

A: This is an uncooled model without TEC cooling, power consumption is less than 3W for energy-efficient long-time operation.

Q4: What is your standard warranty policy?

A: We offer a 1-year standard warranty, with long-term technical support and spare parts supply after sales.
