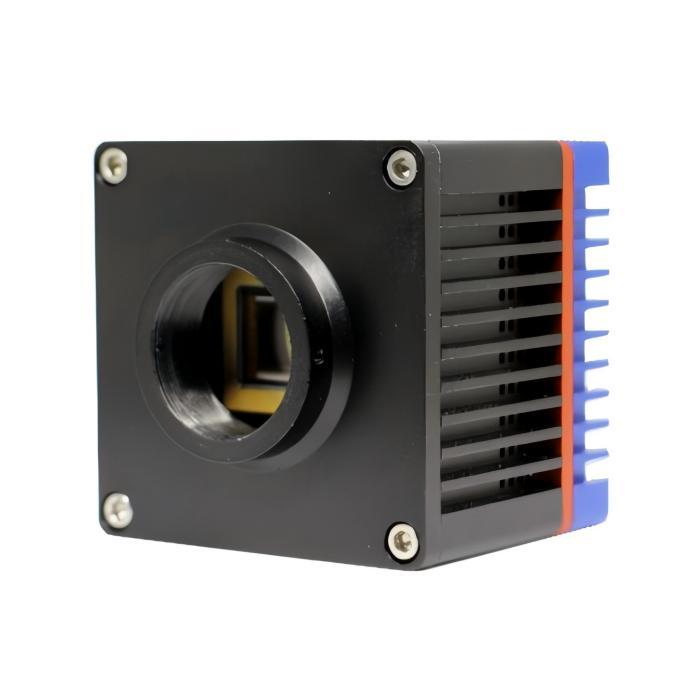

640×512 25μm TEC Cooled SWIR InGaAs Camera 100fps Large Pixel High Sensitivity GS-SW6401725100-C-CL
640×512 25μm TEC Cooled SWIR InGaAs Camera 100fps Large Pixel High Sensitivity GS-SW6401725100-C-CL
Specifications
Model Number :
GS-SW6401725100-C-CL
Certification :
CE; ISO
MOQ :
1 Piece
Payment Terms :
T/T
Price :
Contact Us
Brand Name :
Gatherstar (Leading)
Place of Origin :
China
Description
1. Introduction

GS-SW6401725100-C-CL is a high-performance TEC cooled InGaAs SWIR camera covering 0.9–1.7μm spectral band with easy operation. It adopts a 640*512 InGaAs FPA with extra-large 25μm pixel size, supporting up to 100Hz full-resolution frame rate. Mini Camera Link serves as standard digital output; PAL/NTSC analog video via SMA interface can be customized according to project requirements. Equipped with built-in TEC cooling with automatic and manual dual cooling adjustment modes, the camera adapts to diverse field environments. It supports arbitrary-position ROI readout to raise capture speed, and comes with replaceable C lens mount for seamless matching with spectrometers and custom optoelectronic devices. Onboard centroid tracking function can be integrated for laser testing scenarios. All cameras are manufactured with 15 years of optoelectronic R&D experience and pass ISO & CE quality inspection.

2. Advantages
  1. High-sensitivity InGaAs FPA with quantum efficiency higher than 70% within 1.0μm–1.6μm waveband
  2. 640*512 resolution & 25μm large pixel, bigger active area for excellent faint light response
  3. Built-in TEC cooling with auto & manual adjustable modes to reduce dark current noise
  4. Independent automatic & manual gain control, manually tunable image contrast
  5. Real-time onboard non-uniformity and dead pixel correction for uniform frames
  6. Standard Mini Camera Link digital output; PAL/NTSC analog video is optional customized function
  7. Freely configurable arbitrary ROI to boost frame rate for fast target tracking
  8. Global shutter design with full set of built-in image processing algorithms
  9. Interchangeable C lens mount, reserved M3 & 1/4″-20 multi mounting holes
  10. Compact lightweight housing, stable performance for lab and field infrared detection
3. Technical Specifications
Model GS-SW6401725100-C-CL
Detector type InGaAs FPA
Spectral range 0.9μm ~ 1.7μm
Resolution 640 x 512
Pixel size 25μm
Active area 16mm x 12.8mm
Quantum efficiency >70%@(1.0μm-1.6μm)
Pixel operability ＞99.5%
Cooler type TEC Cooled
Maximum frame rate 100Hz
ROI Support ROI at any position
Shutter type Global shutter
Exposure time 1μs—1/frame
Digital output format 8/16 bit camera link
Analog video output PAL/NTSC (Optional, customized upon request)
Onboard image processing Auto/Manual Exposure; Auto/Manual Gain; Non-uniformity Correction; Dead Pixels correction
Image function Frame rate selection, synchronization method selection, contrast/brightness adjustment (manual), enhancement, test image, information saved, cross indication.
Electrical interface HR10
Digital interface Mini Camera Link
Analog interface SMA (Optional customized part)
External trigger port RS422
Control interface RS422
Lens mount C
Tripod interface 8*M3/1/4″-20
Power input 12V DC
Power consumption ＜5W TEC off
Operation temperature -40℃ ~ +55℃
Storage temperature -50℃ ~ +65℃
Weight ≤310g(no lens)
Dimensions ≤60mm x 60mm x 65mm

Note: Specifications are for reference only and subject to change without prior notice.


4. Applications

Low-light imaging, Medical & scientific spectral imaging, Hyperspectral inspection, Laser spot tracking imaging, High-temperature thermal detection, Remote sensing search & rescue, Camouflage target identification, Industrial garbage sorting, Semiconductor internal defect inspection

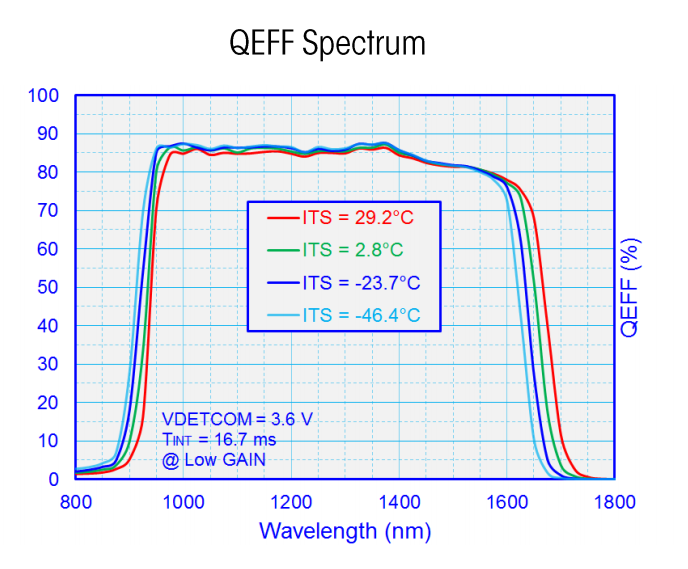

5. Quantum Efficiency

640×512 25μm TEC Cooled SWIR InGaAs Camera 100fps Large Pixel High Sensitivity GS-SW6401725100-C-CL

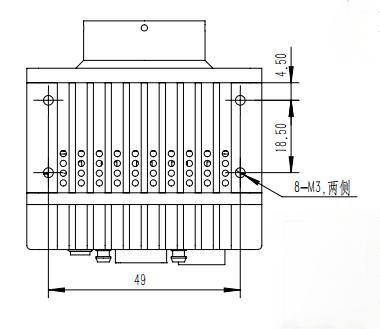

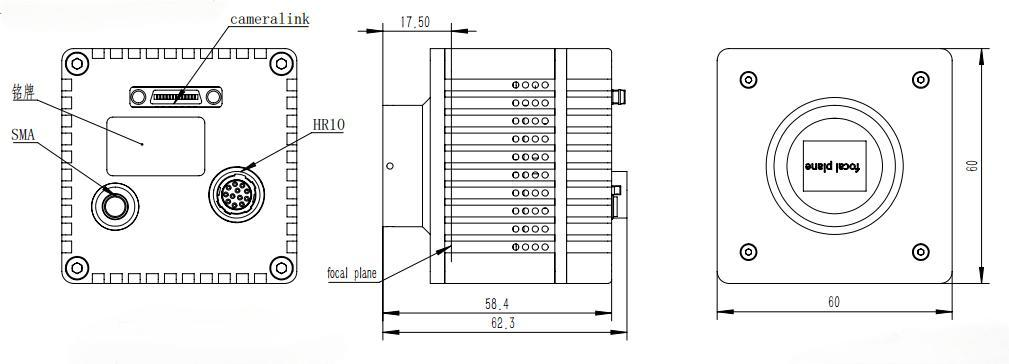

6. Dimensions

640×512 25μm TEC Cooled SWIR InGaAs Camera 100fps Large Pixel High Sensitivity GS-SW6401725100-C-CL

640×512 25μm TEC Cooled SWIR InGaAs Camera 100fps Large Pixel High Sensitivity GS-SW6401725100-C-CL


7. FAQs
Q1: Does this camera support analog video output?
A: Mini Camera Link digital output is standard. PAL/NTSC analog signal via SMA interface is optional and customizable based on project demands.
Q2: Can ROI function increase working frame rate?
A: Arbitrary ROI area is supported. Restricting readout region can effectively improve capture speed for high-speed targets.
Q3: Is centroid tracking available for this model?
A: Onboard tracking function can be integrated according to customer customization requirements.
Q4: What is your standard warranty?
A: 1-year standard warranty, long-term technical support and spare parts supply after sales.
