1. Introduction

GS-SW640171550Z-C-G is an economical thermoelectric cooled short-wave infrared camera working within 0.9–1.7μm spectral band. Equipped with 640×512 InGaAs FPA sensor with 15μm pixel, the camera runs at native 50Hz full frame, and supports customized frame rate up to 120Hz under arbitrary ROI mode. Standard GigE RJ45 digital output is adopted, without analog SMA interface and onboard laser centroid tracking function to cut overall cost. Built-in adjustable TEC cooling chip stabilizes detector temperature to suppress dark current noise. The housing reserves dedicated M3 fan mounting holes to reinforce heat dissipation for continuous long-term operation. It only supports 3-24V single-ended trigger and global shutter with 5μs shortest exposure time, integrated Gamma, contrast and brightness adjustment functions. C lens mount and multi-group M3 tripod holes facilitate system integration. Special display control software and complete cross-platform SDK are provided for secondary development, OEM housing customization service is available. All cameras pass standard quality inspection.

2. Advantages

1. High-sensitivity InGaAs sensor, pixel operability over 99.9% for ultra-clean imaging
2. 640×512 resolution with 15μm pixel, native 50fps, customizable up to 120Hz via ROI
3. Built-in adjustable TEC cooling to reduce dark noise during long continuous capturing
4. Independent auto/manual gain control, onboard non-uniformity & dead pixel correction with Gamma tuning
5. Pure GigE 8/14bit digital transmission, no analog circuit to lower product cost
6. Arbitrary configurable ROI window to greatly boost frame rate for small fast targets
7. Global shutter design, compatible with 3-24V single-ended external trigger signal
8. Reserved M3 fan mounting holes for auxiliary heat dissipation under full-load operation
9. C standard lens mount, dual sets of M3 mounting holes plus 1/4″ tripod interface
10. Extended 60×60×80mm housing, full-load power consumption below 6W, wide temperature adaptability

3. Technical Specifications

Note: Specifications are for reference only and subject to change without prior notice.

4. Applications

Low-light imaging, Medical and scientific imaging, Semiconductor testing, Laser spot tracking imaging, High temperature thermal imaging, Search and rescue remote sensing, Camouflage Identification, Garbage sorting

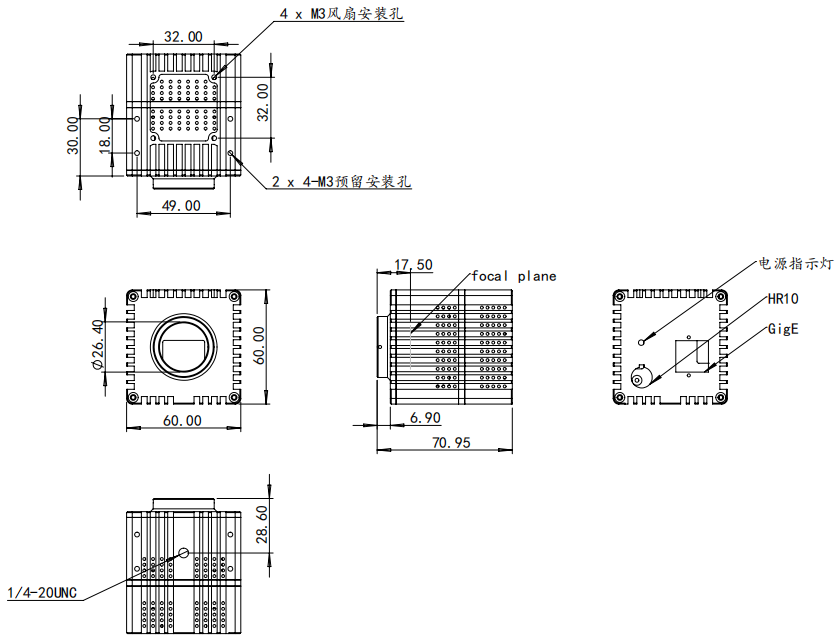

5. Dimensions

6. FAQs
