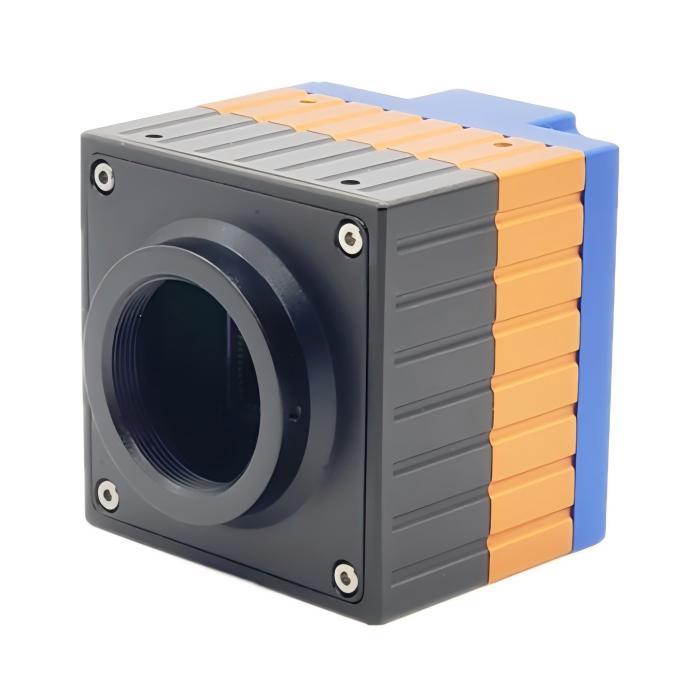

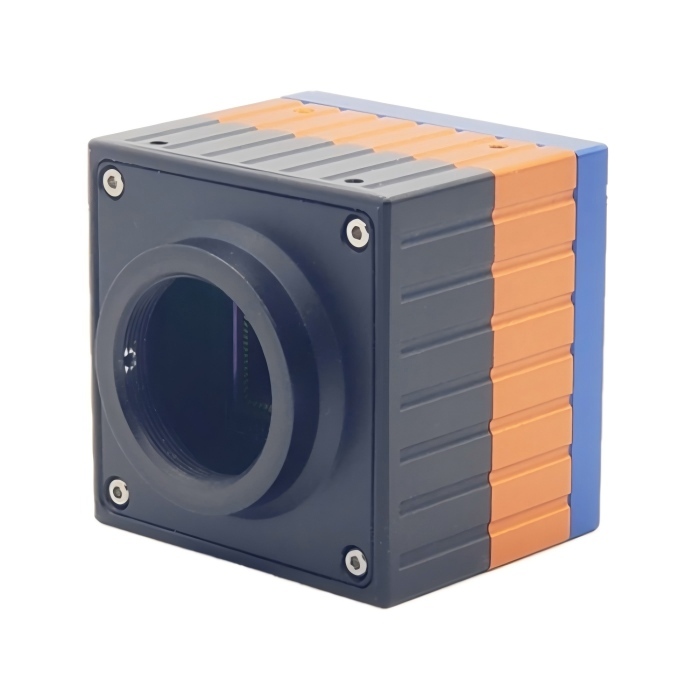

GS-SW640171550-UC-G is a high-performance uncooled InGaAs SWIR camera working in the 0.9–1.7μm spectral band. It adopts a 640*512 InGaAs FPA with 15μm pixel size, supporting up to 50Hz full-resolution frame rate. GigE RJ45 digital transmission is the standard output; PAL/NTSC analog video via SMA interface can be customized according to project demands. Adopting uncooled energy-saving structure, the camera features ultra-small volume and light weight. It supports arbitrary-position ROI readout to raise capture speed, and reserves interface for onboard centroid tracking algorithm integration. Compact outline with M2.5 multi-mounting holes is perfectly suitable for miniature portable optical equipment. Matching dedicated display control software and complete cross-platform SDK, demo codes are supplied for secondary development, and OEM customization service is available. All cameras pass ISO & CE quality inspection.

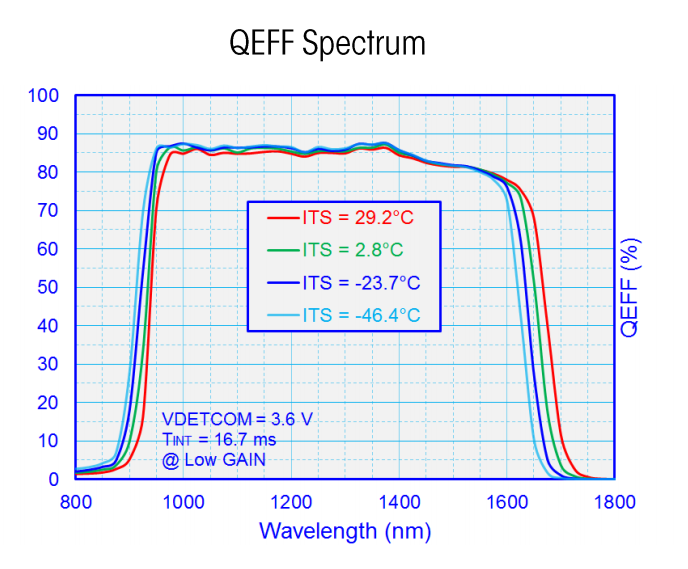

1. High-sensitivity InGaAs FPA with quantum efficiency higher than 70% within 1.0μm–1.6μm waveband
2. 640*512 resolution & 15μm pixel, stable 50Hz full-frame imaging performance
3. Uncooled low-power structure, ultra-light weight only ≤170g without lens
4. Independent auto/manual gain adjustment, manually adjustable image contrast
5. Real-time onboard non-uniformity and defective pixel correction algorithm
6. GigE high-speed digital output; PAL/NTSC analog video is optional customized function
7. Freely configurable arbitrary ROI window to accelerate frame rate for fast targets
8. Global shutter design, compatible with TTL/LVDS dual external trigger signals

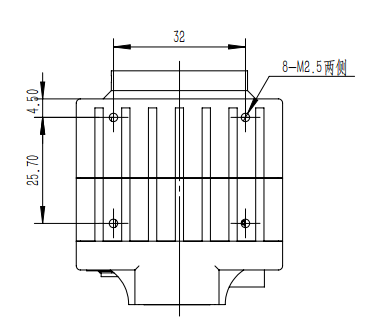

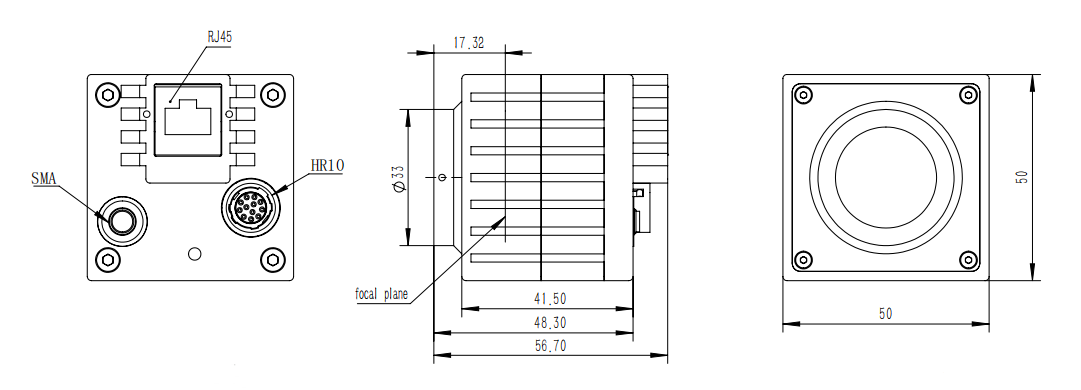

9. Mini 50*50mm body with M2.5 mounting holes for narrow-space integration
10. Wide temperature adaptability for miniature laser and spectral detection equipment

Note: Specifications are for reference only and subject to change without prior notice.

Low-light imaging, Medical & scientific spectral imaging, Hyperspectral inspection, Laser spot tracking imaging, High-temperature thermal detection, Remote sensing search & rescue, Camouflage target identification, Industrial garbage sorting, Semiconductor internal defect inspection

Q1: Does this model adopt cooling structure?

A: This is an uncooled low-power model, with small size and light weight, suitable for miniature integrated equipment.

Q2: Can centroid tracking function be integrated?

A: Onboard centroid tracking algorithm can be added according to project customization demands.

Q3: What trigger signals are supported?

A: Compatible with TTL and LVDS dual external trigger for synchronous testing.

Q4: What is the standard warranty policy?

A: 1-year standard warranty, long-term technical support and spare parts supply after sales.
