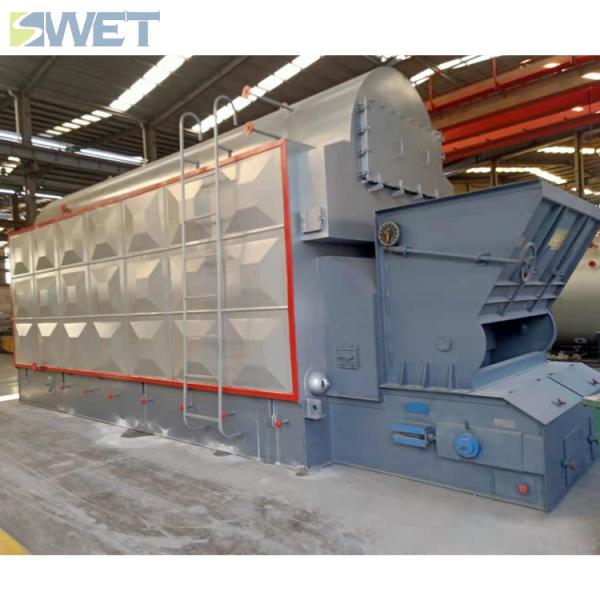

1T/H Palm Oil Steam Boiler Heat Transmission Environment Friendly
1T/H Palm Oil Steam Boiler Heat Transmission Environment Friendly
Specifications
Brand Name :
SWET
Model Number :
DZL1-1.25-T
Certification :
ISO9001
Place of Origin :
Henan Province, China
MOQ :
1 set
Payment Terms :
T/T, Western Union
Supply Ability :
1000 sets per Month
Delivery Time :
20 - 30 woking days after prepayment received
Packaging Details :
The boiler is covered with a waterproof film and the transport package is a wooden box or wooden pallet.
Boiler capacity :
1000kg
Working pressure :
1.25Mpa
Steam temperature :
194℃
Description

Palm oil 1 ton steam boiler for palm oil mill

Product Description
Energy-saving and environment-friendly: The adoption of advanced gasified burning tecnology, indluding the gasified spiral burning chamber and embedded device of second distribution of spiral turbulence, makes the burning of fuels more efficient.
Threaded flues, which are efficient in heat transmission, and reasonable flowing speed of smoke, push the thermal efficiency to 85% and higher. The adoption of biomass pellet fuel enables zero CO emission. With the density of discharged smoke lower than 50mg/m and blackness of exhaustion lower than Ringelmann level-1, all data has satisfied national environmental protection standard for type-1 areas.
Low operation cost: Biomass pellet is a new environment-friendly renewable fuel promoted by the government it features high heating value, low cost and easy accessibility. The operation cost of the boiler is only 1/4 of that electric boilers and is 1/2 lower of that oil gas boilers.
Process technology
Technical Parameters
Model

Rated evaporation

(t/h)

Working pressure

(Mpa)

Steam temperature

()

Return water temperature

()

Thermal efficiency

(%)

Approx dimensions

(mm)
DZL2 2 0.7 / 1.0 / 1.25 170 / 184 / 194 20 ≥80 7650*3500*4400
DZL4 4 0.7 / 1.0 / 1.25 170 / 184 / 194 20 ≥80 9380*4430*4800
DZL6 6 0.7 / 1.0 / 1.25 170 / 184 / 194 20 ≥80 9790*4670*5500
DZL10 10 0.7 / 1.0 / 1.25 170 / 184 / 194 20 ≥80 11900*5500*6400
SZL15 15 1.0 / 1.25 / 1.6 184 / 194 / 204 104 ≥80 14000*4174*6145
SZL20 20 1.0 / 1.25 / 1.6 184 / 194 / 204 104 ≥80 15820*4620*8680
Other Products
Pls tell us below to confirm a boiler model and offer the right boiler price:
1) What is the application of the boiler?
2) What is the capacity per hour do you need?
3) Which fuel do you want to use for your boiler, coal, biomass, gas & oil, or others?
4) What is the pressure of your boiler?
Any Question, Please contact us ,we serve you 24 hours !
