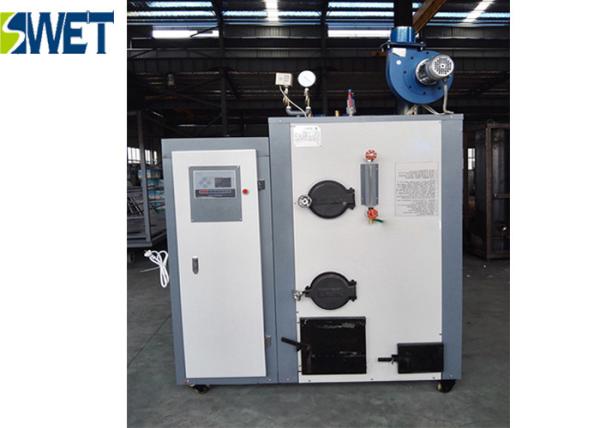

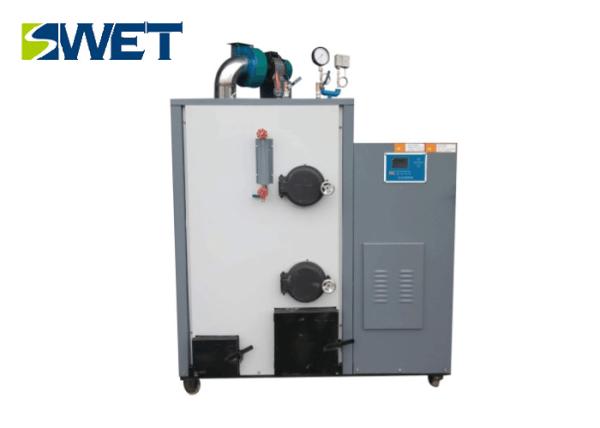

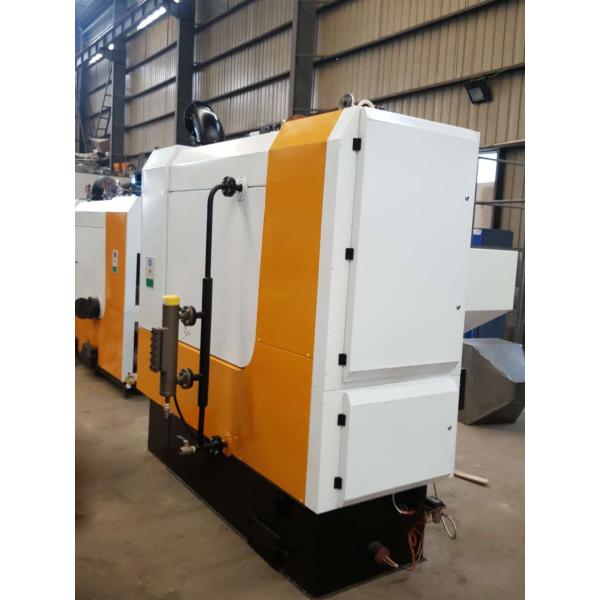

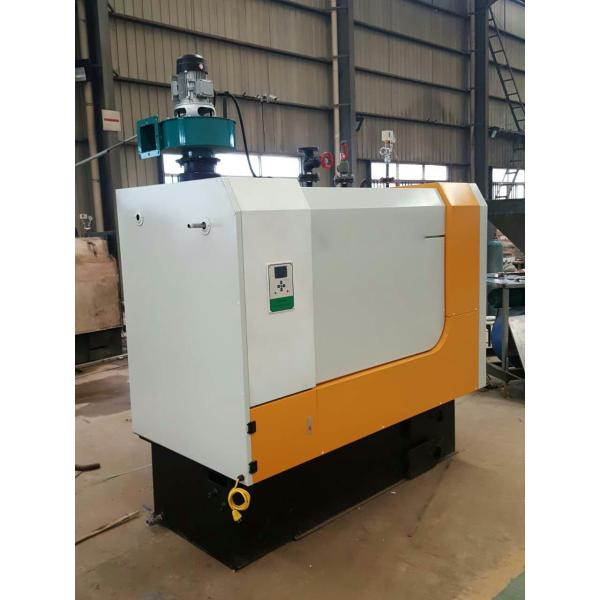

Horizontal Industry Biomass Steam Boiler 500Kg/ H Rated Evaporation
Horizontal Industry Biomass Steam Boiler 500Kg/ H Rated Evaporation
Horizontal Industry Biomass Steam Boiler 500Kg/ H Rated Evaporation
Horizontal Industry Biomass Steam Boiler 500Kg/ H Rated Evaporation
Horizontal Industry Biomass Steam Boiler 500Kg/ H Rated Evaporation
Horizontal Industry Biomass Steam Boiler 500Kg/ H Rated Evaporation
Horizontal Industry Biomass Steam Boiler 500Kg/ H Rated Evaporation
Horizontal Industry Biomass Steam Boiler 500Kg/ H Rated Evaporation
Specifications
Brand Name :
SWET
Model Number :
YDZ0.5-0.7-S-3013
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Supply Ability :
1000 Set/Sets Per Year
Delivery Time :
10-15 work days
Packaging Details :
The biomass steam generator is covered with a waterproof film and the transport package is a wooden box.
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Rated evaporation :
500 kg/h
Weight :
2700 kg
preset pressure :
0.7mpa
Dimensions(Length × width × height)mm :
2200*1500 *2500
Style :
Horizontal
Description

YDZ 500Kg/ h Biomass Steam Boiler For The Packaging Machinery Industry

Product description

1. Crossflow structure, advanced level in domestic and international.

2. After 4 or 5 minutes ignition, it can get enough pressured steam.

3. Automatically control combustion, steam pressure and water level, ensure safe and economical operation.

4. Combustion gas flowing among conduit group at a high speed that assures high quality heat convection and transfer and high effect heat absorption.

5. This section of the steam generator installed just connected to the water pipes, sewage pipes, steam pipes and exhaust pipes can be, waste heat recovery tank can be configured according to the needs of the company can be detailed installation of the video guidance of drawings at a glance, and readily available Install consulting services.

Biomass steam boiler features:

1. Efficient and energy-saving: the use of three return design, the use of low cost, lower than the fuel (gas) to reduce operating costs of 30-70%

2. High thermal efficiency: semi-gasification combined with tangential cyclone air distribution design, the formation of fire-burning, the combustion rate of 90% or more; with waste heat recovery flue gas

3. System, using advanced glass fiber cotton multi-layer insulation, heat loss, low energy consumption, high thermal efficiency

4. Low-carbon environment: semi-gas combustion plus rear dust, soot, sulfur and nitrogen emissions low, low carbon dioxide emissions

Generator product model LHS0.1-0.7-S LHS0.15-0.7-S LSS0.2-0.7-S LSS0.3-0.7-S LSS0.4-0.7-S YDZ0.5-0.7-S
preset pressure(Mpa) 0.7 0.7 0.7 0.7 0.7 0.7
Rated steam temperature(℃) 170 170 170 170 170 170
Rated evaporation(Kg/h) 100 150 200 300 400 500
Maximum fuel consumption(Kg/h) 17 25 34 47 65 80
Thermal efficiency 85% 85% 85% 85% 85% 85%
weight(Kg) 600 700 1020 1150 1600 2700
Dimensions(Length × width × height)mm

1600*900

*1900

1600*900

*1900

2150*950

*2400

2000*1400

*2700

2700*1100

*2450

2200*1500

*2500

Horizontal Industry Biomass Steam Boiler 500Kg/ H Rated EvaporationHorizontal Industry Biomass Steam Boiler 500Kg/ H Rated Evaporation
