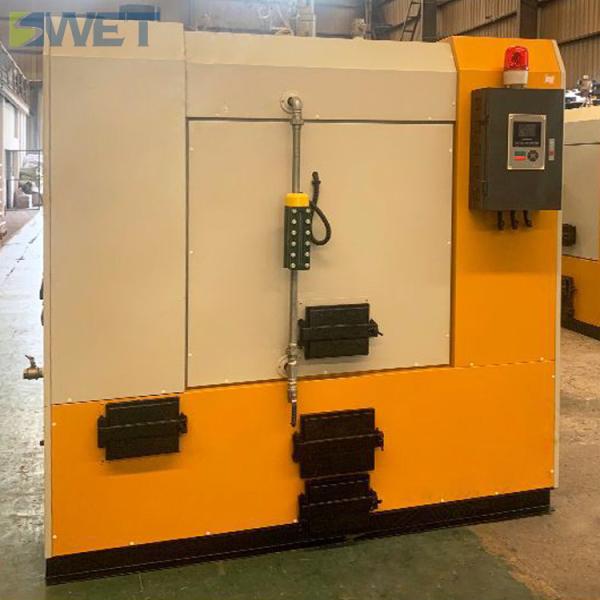

Biomass Vertical Steam Boiler , Energy Saving 300 Kg / H Steam Boiler
Biomass Vertical Steam Boiler , Energy Saving 300 Kg / H Steam Boiler
Specifications
Brand Name :
SWET
Model Number :
LSS0.3-0.7-S-3007
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Supply Ability :
1000 Set/Sets Per Year
Delivery Time :
10-15 work days
Packaging Details :
The biomass steam generator is covered with a waterproof film and the transport package is a wooden box.
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Rated evaporation :
300kg/h
Weight :
1150kg
Style :
Vertical
Design fuel :
Biomass
Warranty :
12months
Color :
Customer requirements
Description

Vertical 300 kg / h Biomass Steam Boiler For Chemical industry

Product description

1. Environmental protection and durability: biomass steam boiler with a new multi-tube cyclone dust collector and energy-saving integrated structure, greatly reducing the flue gas temperature, improve thermal efficiency

2. Environmental protection requirements to meet the new national standards; meticulous design, the use of table steel is much higher than peers Standard

3. the main body of biomass boiler in strict accordance with the A-class boiler manufacturing process requirements, by holding the national boiler pipe pressure vessel welder welder for boiler welding, durable.

Product advantages

1, Combustion mode adopted by the Chinese inspection hospital inspection according to fuel and gas test of the standard of combustion machine, high efficiency, high thermal efficiency.

2, One-click operation, just the water and electricity installed, press the power switch, the steam generator, would be the automatic operation, easy security, greatly reduce the labor intensity of operators.

3. Modular machine factory has been configured to make up the pump and solenoid valve, just connected to the power supply, the water inlet pipe can be, saving installation costs and a lot of installation materials;

4. Energy saving fuel, is a renewable resource, operating costs is one sixth of electric boilers, oil boiler is one-third;

5. The overall modular factory, small size, less than half a ton of steam boiler buckle with this steam generator module combination of alternative solutions

Boiler product model LHS0.1-0.7-S LHS0.15-0.7-S LSS0.2-0.7-S LSS0.3-0.7-S LSS0.4-0.7-S YDZ0.5-0.7-S
preset pressure(Mpa) 0.7 0.7 0.7 0.7 0.7 0.7
Rated steam temperature(℃) 170 170 170 170 170 170
Rated evaporation(Kg/h) 100 150 200 300 400 500
Maximum fuel consumption(Kg/h) 17 25 34 47 65 80
Thermal efficiency 85% 85% 85% 85% 85% 85%
weight(Kg) 600 700 1020 1150 1600 2700
Dimensions(Length × width × height)mm

1600*900

*1900

1600*900

*1900

2150*950

*2400

2000*1400

*2700

2700*1100

*2450

2200*1500

*2500
