1T 0.7Mpa Biomass pellet /wood chips Steam Boiler
1T 0.7Mpa Biomass pellet /wood chips Steam Boiler
1T 0.7Mpa Biomass pellet /wood chips Steam Boiler
1T 0.7Mpa Biomass pellet /wood chips Steam Boiler
1T 0.7Mpa Biomass pellet /wood chips Steam Boiler
1T 0.7Mpa Biomass pellet /wood chips Steam Boiler
1T 0.7Mpa Biomass pellet /wood chips Steam Boiler
1T 0.7Mpa Biomass pellet /wood chips Steam Boiler
1T 0.7Mpa Biomass pellet /wood chips Steam Boiler
1T 0.7Mpa Biomass pellet /wood chips Steam Boiler
Specifications
Brand Name :
SWET
Model Number :
LSS-7009
Certification :
ISO 9001
Place of Origin :
HENAN CHINA
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1500 Set/Sets Per Year
Delivery Time :
15 work days
Packaging Details :
The biomass steam generator is covered with a waterproof film and the transport package is a wooden box.
Rated evaporation :
1T
Steam pressure :
0.7Mpa
Rated steam temperature :
170℃
Thermal efficiency :
93%
Color :
Customer's Requirement
Design fuel :
Biomass
Warranty :
12 months
Weight :
6000kg
Dimension :
3000X2300X2500mm
Material :
Q235 steel
Description

1T 0.7Mpa Biomass pellet /wood chips Steam Boiler


The biomass steam generator description

1. The steam generator fuels are renewable biomass, the running cost is one fifth of electric boiler, one third of oil boiler.

2. The steam generator built-in steam separator solves the problem of steam with water to ensure the quality of the steam.

3. The steam generator full automatic control. Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running, safer and more convenient.

4. The steam generator furnace adopts the three-dimensional air circulation of three sides and a second oxygenating mouth; complete combustion and no visible smoke emissions; fully meeting the national emission requirements on the boiler.

The biomass steam generator technical parameters

Biomass steam generator technical
Rated evaporation Rated pressure Rated steam temperature Feed water temperature Design thermal efficiency Water capacity Steam outlet water intake Drain valve Dimensions Shipping weight Full load biomass consumption
L W H
Kg/h Mpa ℃ ℃ % L DN DN DN mm mm mm T Kg/h
80 0.7 170℃ 20℃ 90% 26.5 15 15 20 1600 900 1750 0.6 13.6
100 0.7 170℃ 20℃ 90% 26.8 15 15 20 1600 900 1900 0.65 16.4
150 0.7 170℃ 20℃ 90% 27 15 15 20 1650 900 1900 0.7 24.6
200 0.7 170℃ 20℃ 90% 27 20 15 25 2150 1000 2400 1.2 32.8
300 0.7 170℃ 20℃ 93% 28 25 15 25 2000 1400 2700 1.35 46.1
400 0.7 170℃ 20℃ 93% 28.7 32 15 25 2350 1750 2200 3 61.5
500 0.7 170℃ 20℃ 93% 29 32 1525 25 2500 1800 2500 4.1 76.8
600 0.7 170℃ 20℃ 93% 29.5 32 15 25 2500 1800 2500 4.3 80
1000 0.7 170℃ 20℃ 92% 29 32 15 25 3000 2300 2500 6 153.5

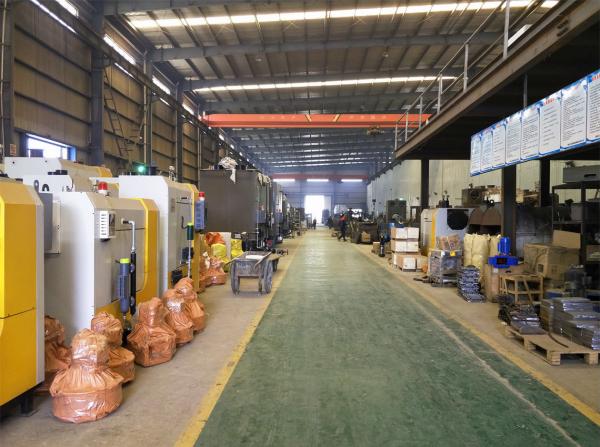

1T biomass steam generator production process:

1T 0.7Mpa Biomass pellet /wood chips Steam Boiler

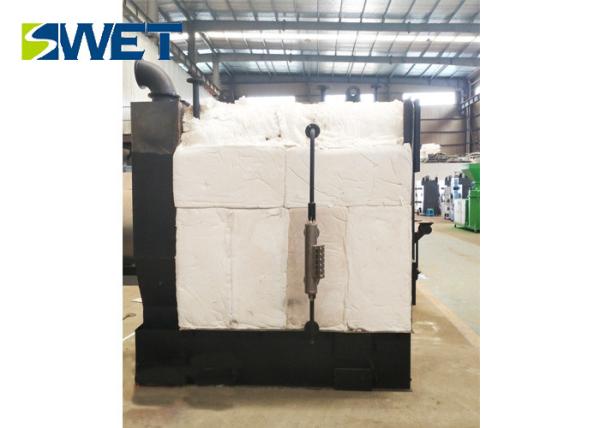

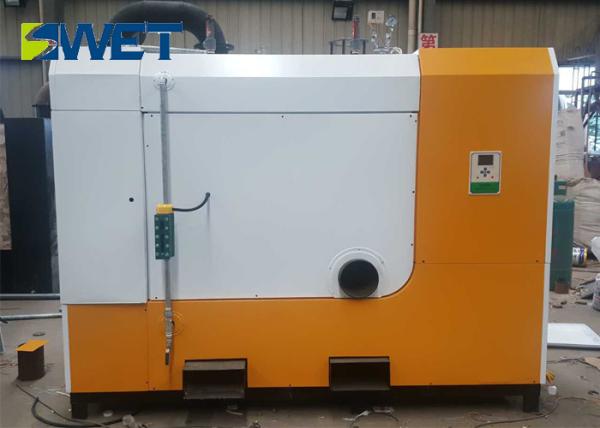

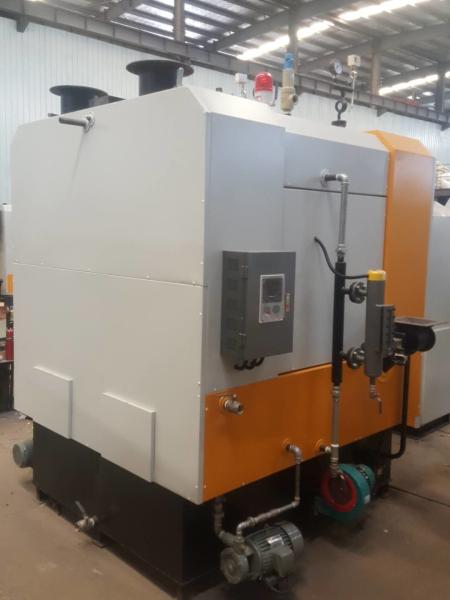

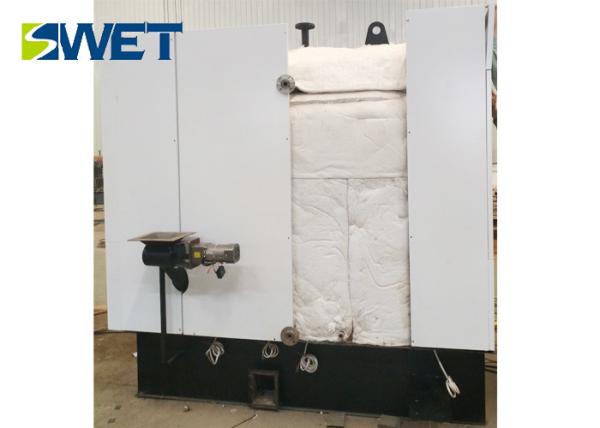

1T biomass steam generator detail picture :


1T 0.7Mpa Biomass pellet /wood chips Steam Boiler

1T 0.7Mpa Biomass pellet /wood chips Steam Boiler
