Specifications
Brand Name :
SWET
Model Number :
LSS0.2-0.7-S-3017
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Supply Ability :
1000 Set/Sets Per Year
Delivery Time :
25-30 work days
Packaging Details :
The biomass steam generator is covered with a waterproof film and the transport package is a wooden box.
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Rated evaporation :
200 kg/h
Weight :
1020 kg
preset pressure :
0.7mpa
Thermal efficiency :
85%
Design fuel :
Biomass
Description

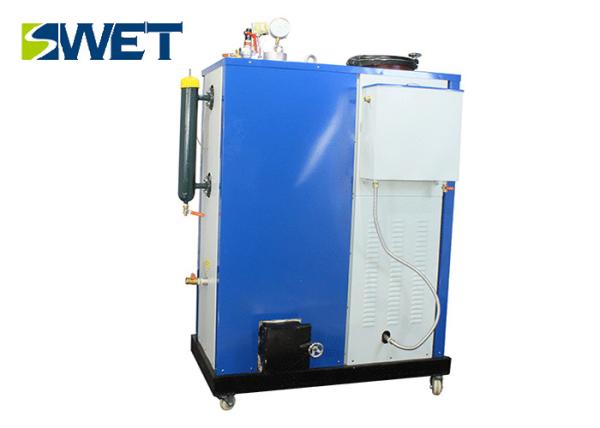

Thermal Efficiency 85% Of 200Kg Biomass Steam Generator For The Chemical Industry

Product description

1. The steam generator fuel is energy-saving and environmentally friendly biomass. It is renewable, wide range of sources, affordable, and its running cost is one sixth of electric boiler, and a third of oil-fired boiler.

2. There is no smoke and dust put off when burning. Only a small amount of powdery ash residue after completely burned retained in the ash collection chamber, easy to handle

3. The steam generator built-in steam separator solves the problem of steam with water to ensure the quality of the steam.

4. The steam generator full automatic control. Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running, safer and more convenient .

Product advantages

1. Efficient and energy-saving: the use of three return design, the use of low cost, lower than the fuel (gas) to reduce operating costs of 30-70%

2. Human design: the use of cylinder material, to solve the traditional motor screw feed often card or motor spiral card bad phenomenon;Very low design hopper for easy feeding

3. The product belongs to the national inspection-free, eliminating the complicated examination and approval procedures

4. Semi-gasification combustion, with a reasonable rationale, high thermal efficiency, emissions are not visible to the dust, fully meet the national emission requirements of the boiler

5. One-touch operation, just put the water, electricity installed in place, press the switch button, the boiler will enter the fully automatic operation, safe and easy, greatly reduced the staff labor intensity

Generator product model

LHS0.1-0.7-

S

LHS0.15-0.7-S LSS0.2-0.7-S

LSS0.3-0.7-

S

LSS0.4-0.7-

S

YDZ0.5-0.7-S
preset pressure(Mpa) 0.7 0.7 0.7 0.7 0.7 0.7
Rated steam temperature(℃) 170 170 170 170 170 170
Rated evaporation(Kg/h) 100 150 200 300 400 500
Maximum fuel consumption(Kg/h) 17 25 34 47 65 80
Thermal efficiency 85% 85% 85% 85% 85% 85%
weight(Kg) 600 700 1020 1150 1600 2700
Dimensions(Length × width × height)mm

1600*900

*1900

1600*900

*1900

2150*950

*2400

2000*1400

*2700

2700*1100

*2450

2200*1500

*2500

Thermal Efficiency 85% Biomass Steam Boiler , 200Kg Chemical Industrial Biomass Boiler
