Specifications
Brand Name :
Gnee
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description
Hot Dipped Galvanized/Painted/Stainless Steel Platform Grating with ISO9001
What is Steel Grating?

Steel Platform Grating, also known as Steel Grating, is manufactured by arranging bearing bars and cross bars in a flat-steel weft pattern. The components are welded together using high-pressure resistance welding technology, followed by cutting, notching, opening, and overlock processing to create finished products that meet specific customer requirements.

Standard Specifications

Panel size available (black grating): 1000x5800mm or 1000x6000mm

Steel Grating Specifications
Bearing Bar Pitch Cross Bar Pitch Load Steel Size (Width × Thickness) Model Numbers
30 100 20×3 G203/30/100
25×3 G253/30/100
32×3 G323/30/100
50 40×3 G403/30/100
20×5 G205/30/100
25×5 G255/30/100
Bearing Bar Cross Bar Pitch Load Steel Size (Width × Thickness) Model Numbers
32×5 to 60×5 30/100 32×5 - 60×5 G325/30/100 - G605/30/100
30/50 32×5 - 60×5 G325/30/50 - G605/30/50
40/100 32×5 - 60×5 G325/40/100 - G605/40/100
40/50 32×5 - 60×5 G325/40/50 - G605/40/50
60/50 32×5 - 60×5 G325/60/50 - G605/60/50
Steel Grating Platform Features
Bearing Bar Types
  • Flat Bar
  • I Bar
  • Serrated Bar
Cross Bar Types
  • Twisted Bar
  • Round Bar
  • Flat Bar
Production Processes
  • Welded
  • Pressure Locked
Surface Treatments
  • Self-Colour
  • Galvanized
  • Painted
Applications
  • Platform
  • Walkway & Floor
  • Trench Cover
  • Steel Stair Treads
  • Suspended Ceiling
  • Barrier Fence

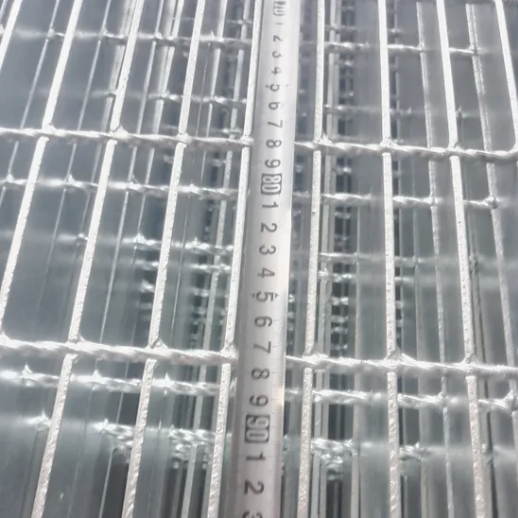

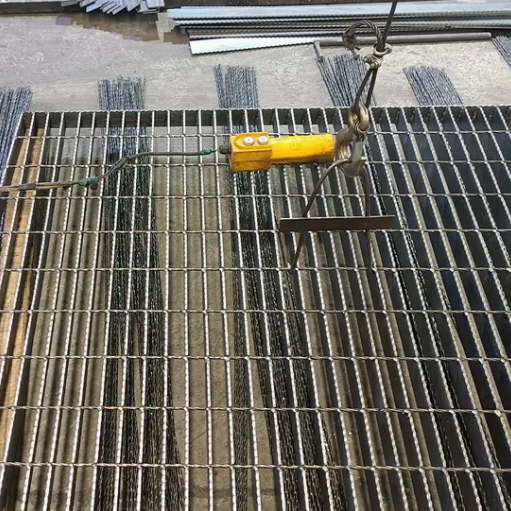

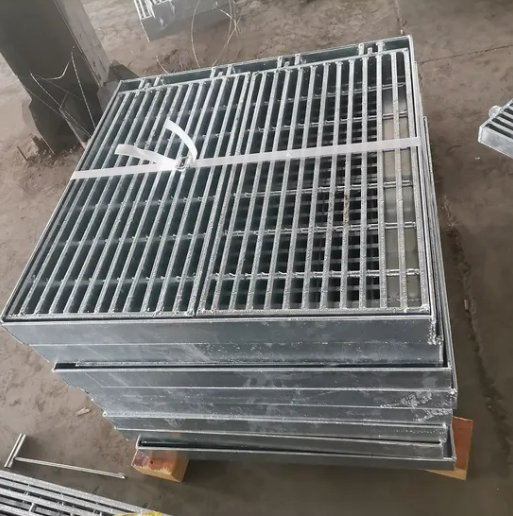

Product Gallery
Hot Dipped Galvanized Stainless Steel Platform Grating with ISO9001 Certification Hot Dipped Galvanized Stainless Steel Platform Grating with ISO9001 Certification Hot Dipped Galvanized Stainless Steel Platform Grating with ISO9001 Certification
