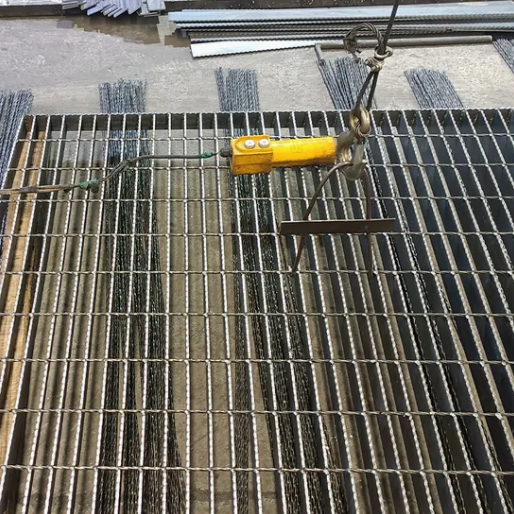

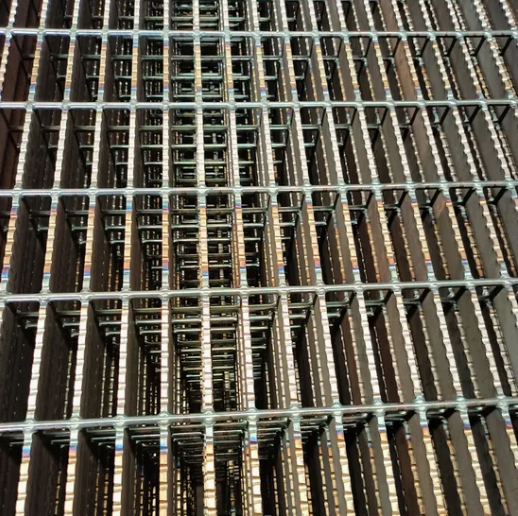

Serrated Galvanized Steel Grating with 20x3 Bearing Bar for Heavy Duty Platform Grating
Serrated Galvanized Steel Grating with 20x3 Bearing Bar for Heavy Duty Platform Grating
Serrated Galvanized Steel Grating with 20x3 Bearing Bar for Heavy Duty Platform Grating
Serrated Galvanized Steel Grating with 20x3 Bearing Bar for Heavy Duty Platform Grating
Serrated Galvanized Steel Grating with 20x3 Bearing Bar for Heavy Duty Platform Grating
Serrated Galvanized Steel Grating with 20x3 Bearing Bar for Heavy Duty Platform Grating
Serrated Galvanized Steel Grating with 20x3 Bearing Bar for Heavy Duty Platform Grating
Serrated Galvanized Steel Grating with 20x3 Bearing Bar for Heavy Duty Platform Grating
Specifications
Brand Name :
Gnee
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

Steel grating is available in varied form suitable for different application and overall load conditions. Hot dip galvanizing or painting can make them in excellent appearance, durability and enhanced economy. Galvanized steel grating is widely used in Power Station, Chemical Industry, Oil & Gas Industry, Boiler Plant, Mining and Refinery, etc.

1. Material

Mild Steel (Low Carbon Steel) or Stainless Steel

2. Specifications

The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10;the specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.

No.

Item

Description
1 Bearing Bar

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
2 Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.

3 Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
4 Material Grade ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc
5 Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7 Standard

China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),

UK: BS4592-1987, Australia: AS1657-1985, Japan:JIS


Finishing treatment


*Steel grating untreated: Allowing quicker delivery to customers whom fabricate and galvanize the grating on their own.

*Galvanized: Hot Dip Galvanizing can give a hygienic and clean maintenance free bright finish.


Packing


Conditions of steel grating:normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides.there are four or six pieces of M10 long bolt penetrading the gratings and screwing together.it is suitable for loading and unloading by fork-lift and crane.


Serrated Galvanized Steel Grating with 20x3 Bearing Bar for Heavy Duty Platform Grating

Serrated Galvanized Steel Grating with 20x3 Bearing Bar for Heavy Duty Platform Grating
