Hot DIP Galvanized Welded Steel Bar Grating for Customizable Platform Catwalk
Hot DIP Galvanized Welded Steel Bar Grating for Customizable Platform Catwalk
Hot DIP Galvanized Welded Steel Bar Grating for Customizable Platform Catwalk
Hot DIP Galvanized Welded Steel Bar Grating for Customizable Platform Catwalk
Hot DIP Galvanized Welded Steel Bar Grating for Customizable Platform Catwalk
Hot DIP Galvanized Welded Steel Bar Grating for Customizable Platform Catwalk
Hot DIP Galvanized Welded Steel Bar Grating for Customizable Platform Catwalk
Hot DIP Galvanized Welded Steel Bar Grating for Customizable Platform Catwalk
Specifications
Brand Name :
Gnee
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

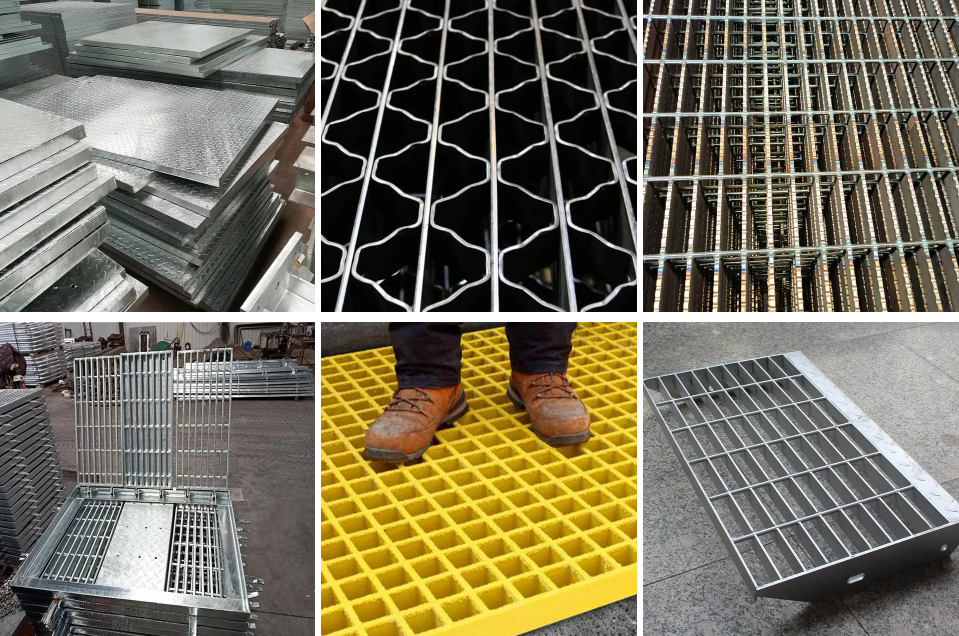

Steel bar grating, known for its high strength and robust structure, is manufactured from carbon steel, aluminum, or stainless steel. Depending on the production method, steel grating can be categorized into four types: welded bar grating, press-locked grating, swage-locked grating, and riveted grating. Based on surface design, it is available in both smooth and serrated options. With a wide range of styles and sizes, steel grating serves versatile applications in everyday life, including stair treads, walkways, platforms, flooring, trench covers, wheeled equipment, security screens, and heavy-duty constructions.


Bearing Bar Height(mm)
20/25/30/32/35/40/44/45/50/90/95/100.etc
Bearing Bar Thickness(mm)
3/5/10.etc
Bearing Bar Pitch(mm)
20/25/30/31/32.5/33/34/40/41/43/50.etc
Cross Bar Pitch(mm)
30/38/50/66/100.etc
Surface Treatment
Hot dip galvanized/Painted
Note:
Sizes can be customized,just please contact us

Detailed Product Description
Product Definition: Clearly state it's made from flat steel with one serrated side, welded together.
Material & Manufacturing:
Flat Steel: List types like serrated flat steel, I-type flat steel, and twisted steel bar.
Welding Process: Mention manufacturing techniques like pressure-locking for solid structure.
Surface Treatment: Stress hot-dip galvanizing (to standards like BS EN ISO 1461) for rust prevention.
Product Series: Introduce different series (e.g., 30mm/40mm/60mm bearing bar spacing) for various applications.

Learn more about the main components of metal bar grating
Span: Total span.
Width: Panel width.
Bearing Bars: Load carrying the main element.
Bearing Bars Spacing: Measure from center-to-center of the bearing bars in 1/16″ increments. Standard spacing for industrial flooring is 19/16″(1-3/16″) in the center. Other popular spacings are 15/16″, 11/16″, 1/2″, and 7/16″ on center.
Bearing Bars Depth: Ranges from 3/4″ to 7″ depending on anticipated loads.
Bearing Bars Thickness: Ranges from 1/8″ to 1/2″ depending on anticipated loads.
Cross Bars: Used to Secure the position of bearing bars.
Cross Bar Spacing: Measured from center-to-center of cross bars in 1″ increments. Standard spacing is 4″ or 2″ on center.
