Steel Grating Pressure Welded Grating Plate Hot Galvanized Stair Tread Power Plant Platform
Steel Grating Pressure Welded Grating Plate Hot Galvanized Stair Tread Power Plant Platform
Steel Grating Pressure Welded Grating Plate Hot Galvanized Stair Tread Power Plant Platform
Steel Grating Pressure Welded Grating Plate Hot Galvanized Stair Tread Power Plant Platform
Steel Grating Pressure Welded Grating Plate Hot Galvanized Stair Tread Power Plant Platform
Steel Grating Pressure Welded Grating Plate Hot Galvanized Stair Tread Power Plant Platform
Specifications
Brand Name :
GNEE
Certification :
SGS
Place of Origin :
China
Price :
Negotiable
Payment Terms :
Negotiable
Delivery Time :
5-9 working days
Packaging Details :
Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Description

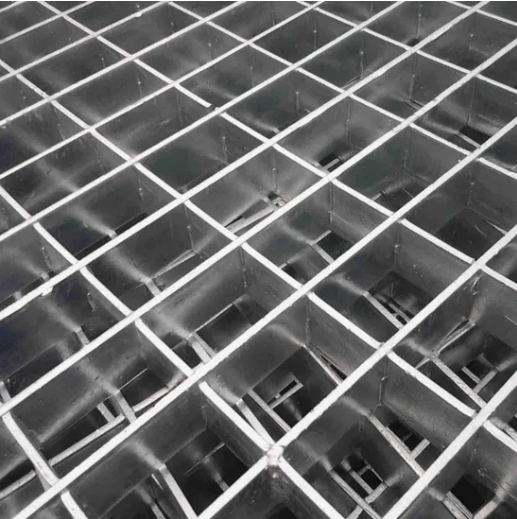

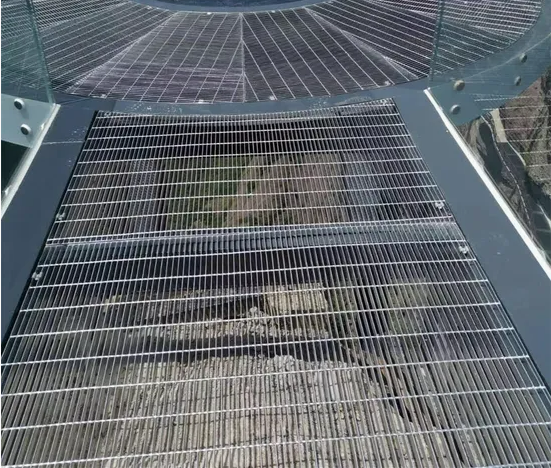

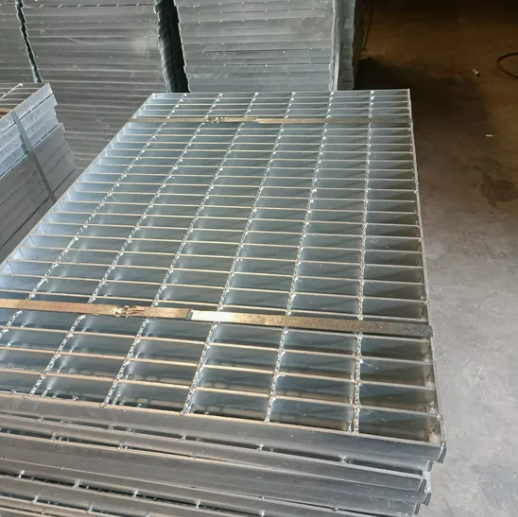

Steel bar grating with high strength and firm structure is made up of carbon steel, aluminum steel, or stainless steel. According to the manufacturing methods, it can be divided into four types: welded, press-locked, swage-locked, and riveted gratings. According to the surface shapes, it can be divided into smooth and serrated gratings. With various styles and sizes for choice, steel gratings are widely used in everyday life, such as stair treads, walkways, platforms, floors, various covers, wheeled equipment, security screens, heavy-duty constructions, and so on.

Steel Grating Accessories for Installing
Steel grating accessories are used to install and fix steel grating. They are very necessary. Steel grating accessories have wear resistance, high strength and resistance to stress, rust-proof performance.
Classifications of steel grating accessories:
Saddle clips: A special bent-clip type fastener for removable bar grating panels.
G-clips: A special friction fastener can be used with aluminum, stainless steel and galvanized steel.
Grate fast clips: Grating can be connected by one man only, working from above, without the need to drill the steel or weld on site.
Weld lugs: Weld lugs may be used for installations where grating is subject to removal.
Z-clip: This is the most versatile clip anchor. They are especially helpful in holding down riveted grating.
R-clip: A special formed metal fastener available in various sizes to fit any job.
Countersunk land: It is available for aluminum grating only. Not available for steel.
Anchor block: It can be used to fasten permanent or removable grating panels.

Steel Grating Pressure Welded Grating Plate Hot Galvanized Stair Tread Power Plant Platform

No. Item Description
1 Bearing Bar

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5,

50x5, 65x5, 75x6, 75x10---100x10mm etc

I bar:

25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard:

1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'',

1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'',etc
2 Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1,

40, 41.25, 60, 80mm etc

US standard:

19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3 Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
4 Material Grade ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400,
Mild steel & Low carbon steel, etc
5 Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
