Type SL Swage-Locked Steel Bar Grating Used in Floors, Walkways, Platforms and Bridge Decking
Type SL Swage-Locked Steel Bar Grating Used in Floors, Walkways, Platforms and Bridge Decking
Type SL Swage-Locked Steel Bar Grating Used in Floors, Walkways, Platforms and Bridge Decking
Type SL Swage-Locked Steel Bar Grating Used in Floors, Walkways, Platforms and Bridge Decking
Type SL Swage-Locked Steel Bar Grating Used in Floors, Walkways, Platforms and Bridge Decking
Type SL Swage-Locked Steel Bar Grating Used in Floors, Walkways, Platforms and Bridge Decking
Specifications
Brand Name :
GNEE
Certification :
SGS
Place of Origin :
China
Price :
Negotiable
Payment Terms :
Negotiable
Delivery Time :
5-9 working days
Packaging Details :

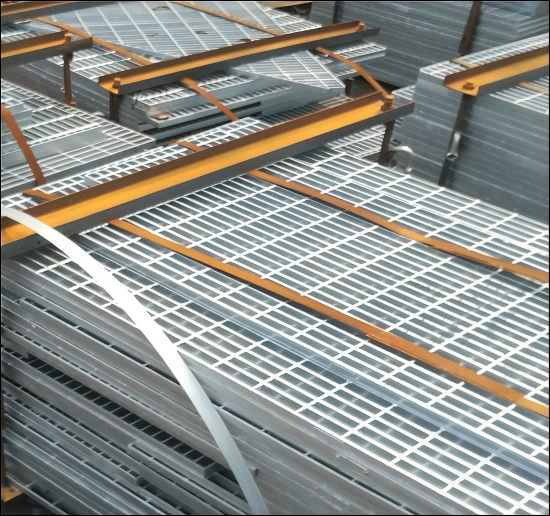

Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Description

Type SL Swage-Locked Steel Bar Grating Used in Floors, Walkways, Platforms and Bridge Decking

Our swage-locked steel bar grating has become the preferred choice for a diversity of applications, including industrial, architectural and construction, and municipal engineering applications, due to its high strength-to-weight ratio, minimum deflection and maximum safety.
Our swage locked steel grating is manufactured by a swaging and welding process. In this process, the cross bars are inserted into pre-punched holes (usually diamond-shaped holes or round holes) in the bearing bars and then welded at each intersection, thus forming a positive mechanical connection permanently.
As a rule, the cross bars are twisted square steel bars or round steel bars.

Type of
Bearing Bars		 Size of Bearing Bars
(mm, Depth x Thickness)		 Size of Cross Bars (mm) Pitch of Rectangular Holes (mm)
Rectangular
Flat Bars		 25 × 2 8 x 8 30x100, 40x100, 60x100
25 × 3 8 x 8 30x100, 40x100, 60x100
25.4 × 4.76 8 x 8 30x100, 40x100, 60x100
30 × 5 8 x 8 30x100, 40x100, 60x100
32 × 3 8 x 8 30x100, 40x100, 60x100
32 × 5 8 x 8 30x100, 40x100, 60x100
38 × 3 8 x 8 30x100, 40x100, 60x100
38 × 5 8 x 8 30x100, 40x100, 60x100
40 × 3 8 x 8 30x100, 40x100, 60x100
40 × 4 8 x 8 30x100, 40x100, 60x100
40 × 5 8 x 8 30x100, 40x100, 60x100
40 × 12 8 x 8 30x100, 40x100, 60x100
45 × 3 8 x 8 30x100, 40x100, 60x100
45 × 5 8 x 8 30x100, 40x100, 60x100
50 × 3 8 x 8 30x100, 40x100, 60x100
50 × 4.5 8 x 8 30x100, 40x100, 60x100
55 × 3 8 x 8 30x100, 40x100, 60x100
60 × 3 8 x 8 30x100, 40x100, 60x100
60 × 12 8 x 8 30x100, 40x100, 60x100
65 x 5 8 x 8 30x100, 40x100, 60x100
I-Shaped
Steel Bars		 26.8 × 6.25 8 x 8 30x100, 40x100, 60x100
25.4 × 6.35 8 x 8 30x100, 40x100, 60x100
65 × 6.35 8 x 8 30x100, 40x100, 60x100
50.8 × 6.35 8 x 8 30x100, 40x100, 60x100
T-Shaped
Steel Bars		 32 x 60 8 x 8 30x100, 40x100, 60x100
28 x 52 8 x 8 30x100, 40x100, 60x100
