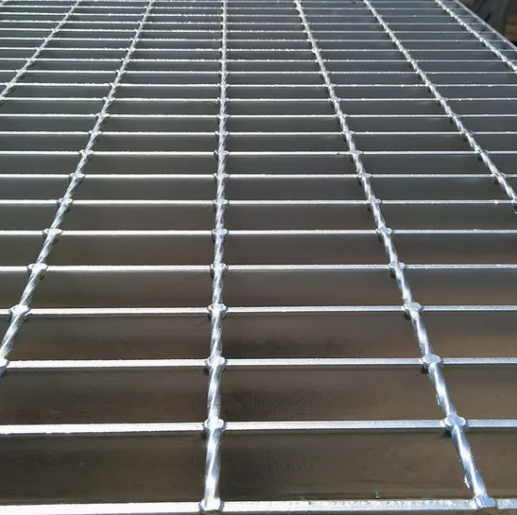

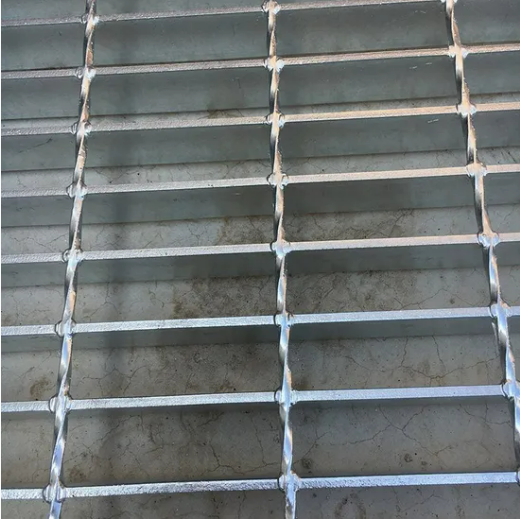

19-W-4 1 1/4′ ′ *3/16′ ′ Metal Grate Steel Bar Grating for Platform Walkway Grating
19-W-4 1 1/4′ ′ *3/16′ ′ Metal Grate Steel Bar Grating for Platform Walkway Grating
19-W-4 1 1/4′ ′ *3/16′ ′ Metal Grate Steel Bar Grating for Platform Walkway Grating
19-W-4 1 1/4′ ′ *3/16′ ′ Metal Grate Steel Bar Grating for Platform Walkway Grating
19-W-4 1 1/4′ ′ *3/16′ ′ Metal Grate Steel Bar Grating for Platform Walkway Grating
19-W-4 1 1/4′ ′ *3/16′ ′ Metal Grate Steel Bar Grating for Platform Walkway Grating
Specifications
Brand Name :
GNEE
Certification :
SGS
Place of Origin :
China
Price :
Negotiable
Payment Terms :
Negotiable
Supply Ability :
100 ton/week
Delivery Time :
5-9 working days
Packaging Details :
Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Description

Product Description

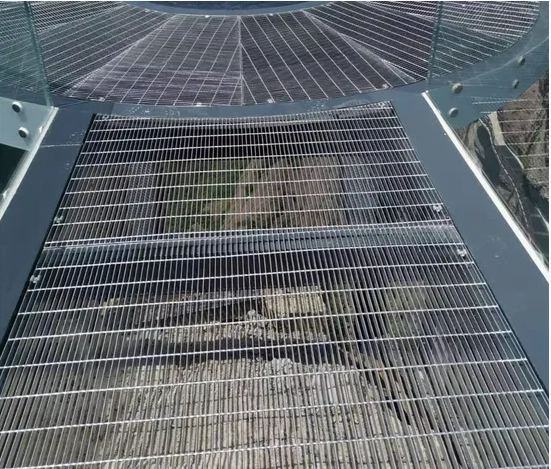

19-W-4, 1 1/4''*3/16'', G325/30/100 galvanized steel bar grating is most popular specification for platform walkway, it is usually used in these area.
Uses & Applications
Bridge Flooring Bridge Sidewalks Catwalks
Concrete Reinforcement Dipping Trays Drainage Covers Fencing
Fire Escapes Flooring Fork Lift Traffic Freight Cars Ladder Treads
Landing Mats Light Guards Loading Ramps Machine and Motor Bases
Machine Bases Machinery Safety Guards Machinery Support
Material Screens Mezzanine Floors Motor Bases
Ornamental Grills Overhead Signs Paint Booths
Partitions Platforms Racks & Shelving
Ramps Running Boards Security Screens Snow Fences
Solar Screens Stage Flooring Stairs Strainers Tree & Pole Guards
Trench Covers Trenches Truck Beds Truck Grills Ventilating Screens Walkways Wash Racks Window Guards

G325 steel grating width and thickness of bearing bar 32*5mm, 1 1/4''*3/16''
30 bearing bar spacing
100 cross bar spacing
19-W-4 1 1/4′ ′ *3/16′ ′ Metal Grate Steel Bar Grating for Platform Walkway Grating
Common specification:
Common Specification of Steel Grating
Remarks: Special Material, High Zinc Coating and New Style can be Customized.
Material Standard

ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316,

Mild steel & Low carbon steel, etc

Bearing Bar

(Width x Thickness)

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc;

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface Treatment Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.
Grating Style Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
Packing

(1) Bandage and Paperboard: Generally applies to neat steel plate;

(2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;

(3) Steel Pallet: Traditional export packing.
Payment Term T/T, L/C, Western Union, Credit Card, ****** Trade Assurance
Product Name: Hot dip galvanized steel metal grating
