Galvanized Steel I Bar Steel Grating for Walkways Platform and Drain Cover
Galvanized Steel I Bar Steel Grating for Walkways Platform and Drain Cover
Galvanized Steel I Bar Steel Grating for Walkways Platform and Drain Cover
Galvanized Steel I Bar Steel Grating for Walkways Platform and Drain Cover
Galvanized Steel I Bar Steel Grating for Walkways Platform and Drain Cover
Galvanized Steel I Bar Steel Grating for Walkways Platform and Drain Cover
Specifications
Description

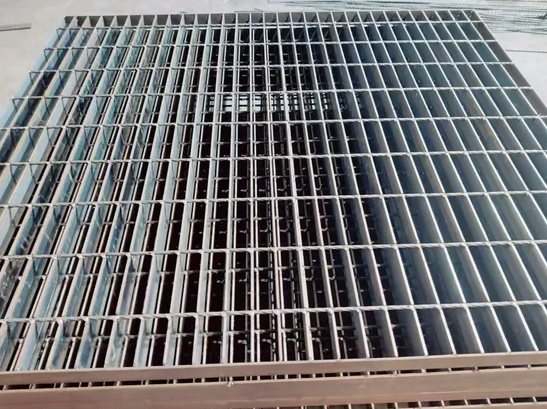

Grating, also called steel grating or steel bar grating, refers to the steel bar grating made of mild carbon steel through surface treatment.

Mild carbon steel provides an economical, high strength for uses in most industrial and commercial applications.

Steel grating is available in various material, such as stainless steel, aluminum, and galvanized steel.


Specifications of steel gratings
Bearing bar 20x5,25x3,25x4, 25x5,30x3,30x4,30x5,32x3,32x5,40x5,50...75x8mm, etc.
Bearing bar depth 25,30,30.16,32.5,34.3,40,50,60,62,65mm, etc.
Cross bar 5x5, 6x6,8x8mm (twisted bar or round bar)
Cross bar spacing 40, 50,60,65,76,100,101.6,120,130mm or as customers' requirement.
Flat bar type Plain, Serrated (tooth-like), l bar (l section)
Surface treatment Untreated
Hot dip galvanized
Cold dip galvanized
PVC coated
Powder coated
Note:
1.Special sizes avaliable at request.

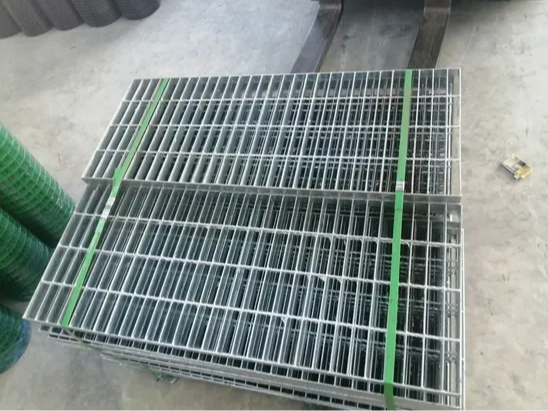

2.Packing:in plastic in rolls. Custom packing available at request.


Galvanized Steel I Bar Steel Grating for Walkways Platform and Drain Cover


Applications
1.Maximum Security Facilities: Perimeter fencing for prisons, and high-security zones.
2.Transportation Infrastructure: Fencing for airports, highways (anti-dazzle screens), and railways.
3.Industrial & Construction Sites: Workshop partitions, machinery guards, and elevator protection doors.
4.Commercial & Public Areas: Security fencing for warehouses, logistics centers, and public utility sites.

Key Configurations
Mesh Type: 358 security mesh, small aperture anti-climb mesh, standard wire mesh
Panel Frame: Reinforced heavy-duty steel frame with welded corners
Surface Treatment: Hot-dip galvanized, powder-coated, or PVC coated
Post & Fixings: Adjustable steel posts with anti-tamper security fittings
Security Level: Certified to various security ratings (e.g., PAS68, HRAM)
Installation: Modular design for rapid deployment and adaptability

Galvanized Steel I Bar Steel Grating for Walkways Platform and Drain Cover

Galvanized Steel I Bar Steel Grating for Walkways Platform and Drain Cover
