Single Core EV Power Cable 2.5mm2 4mm2 Flame Retardant New Energy Vehicle Wire
Single Core EV Power Cable 2.5mm2 4mm2 Flame Retardant New Energy Vehicle Wire
Single Core EV Power Cable 2.5mm2 4mm2 Flame Retardant New Energy Vehicle Wire
Single Core EV Power Cable 2.5mm2 4mm2 Flame Retardant New Energy Vehicle Wire
Single Core EV Power Cable 2.5mm2 4mm2 Flame Retardant New Energy Vehicle Wire
Single Core EV Power Cable 2.5mm2 4mm2 Flame Retardant New Energy Vehicle Wire
Specifications
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Applications :
Battery connections for new energy vehicles, motor inverters, and high-voltage wiring for energy storage systems
Outer diameter range (OD) :
3.5 mm – 21.2 mm (increasing with cross-sectional area)
Place of Origin :
china
Insulation Material :
XLPE
Price :
usd 1.2 ～ 16 / meter
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
800–1500 kilometers per month
Certification :
CE，VDE,SO 9001
MOQ :
1000
Size :
1*2.5 mm², 1*4.0 mm², 1*10.0 mm², 1*16.0 mm², 1*25.0 mm², 1*35.0 mm², 1*50.0 mm², 1*6.0mm²
Rated voltage :
DC 1500 V
Customisation capabilities :
Adjust the structure according to customer requirements
Model Number :
ev cable
Insulation properties :
High insulation resistance
Delivery Time :
7-15 Working Days
Brand Name :
F.T
Conductor Material :
Oxygen-Free Copper Wire
Rated Voltage :
1000V, 600V
Description

EV Power Cable Single Core 2.5mm² 4mm² Flame Retardant New Energy Vehicle Wire

High-voltage electric vehicle wires and cables are mainly responsible for starting, driving, charging and discharging, air conditioning power, etc. It mainly includes battery systems, power trains, high-voltagea electronic control systems, charging systems, high-voltage equipment, and wiring harness systems. Electric vehicle high-voltage lines are used to connect charging ports and batteries, battery interiors, batteries and engines and other components, as well as battery energy storage equipment and other fields, as a carrier of power transmission.
Main Feature:
1.The product is soft and has a bending radius of less than 5D;

2. High and low temperature resistance, oil resistance, acid and alkali resistance, water resistance, wear resistance, cracking resistance, UV resistance;

3. Good flame retardant performance; Good conductivity, small conductor temperature rise;
4. All materials comply with RoHS 2.0 environmental standards.

Cable specifications

Models Structure OD Jacket Conductor Voltage
2.5mm² 80/0.20mm 3.5mm XLPE Oxygen-Free Copper 1500V
4mm² 132/0.20mm 4.5mm XLPE Oxygen-Free Copper 1500V
6mm² 196/0.20mm 5.0mm XLPE Oxygen-Free Copper 1500V
10mm² 336/0.20mm 6.4mm XLPE Oxygen-Free Copper 1500V
16mm² 532/0.20mm 8.0mm XLPE Oxygen-Free Copper 1500V
25mm² 798/0.20mm 10.2mm XLPE Oxygen-Free Copper 1500V
35mm² 1121/0.20mm 11.5mm XLPE Oxygen-Free Copper 1500V
50mm² 1596/0.20mm 13.2mm XLPE Oxygen-Free Copper 1500V
70mm² 2231/0.20mm 15mm XLPE Oxygen-Free Copper 1500V
95mm² 3182/0.195mm 17.3mm XLPE Oxygen-Free Copper 1500V
120mm² 4033/0.195mm 19.5mm XLPE Oxygen-Free Copper 1500V
150mm² 5022/0.195mm 21.2mm XLPE Oxygen-Free Copper 1500V

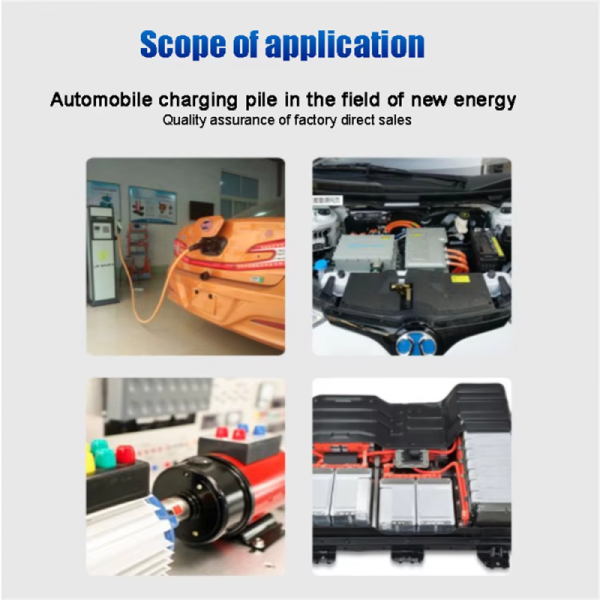

EV Power cable application

  • Connection between power batteries and motor controllers in new energy vehicles
  • Internal wiring of on-board high-voltage power distribution units (PDUs) and charger
  • DC connection between battery clusters and PCS in residential/commercial and industrial energy storage systems
  • High-voltage power supply for special-purpose vehicles such as electric forklifts and construction machinery
  • Internal module connections in 1500V DC charging stations

Single Core EV Power Cable 2.5mm2 4mm2 Flame Retardant New Energy Vehicle Wire

FAQ

Q1:What is the rated voltage of this cable?
A:Rated for DC 1500V, suitable for high-voltage EV and energy storage systems.
Q2:What material is the conductor made of?
A:Made of oxygen-free copper with multi-strand design, offering high conductivity and flexibility.
Q3:What are the available cross-section sizes?
A:Available from 2.5mm² up to 150mm² (see the full spec table for detailed options).
Q4:Is the cable customizable?
A:Yes, we can customize the structure, OD, insulation material and length to meet your specific requirements.
Q5:What applications is this cable suitable for?
A:Ideal for EV battery connections, motor controllers, PDU, energy storage systems, and 1500V DC charging stations.
Q6:What is the insulation material?
A:XLPE (cross-linked polyethylene), which provides high voltage resistance, heat resistance, and good aging performance.
