New Portable EV Charger Extension Cord Home Use Type 2 To Type 2 AC 32A 7KW 22kw
New Portable EV Charger Extension Cord Home Use Type 2 To Type 2 AC 32A 7KW 22kw
New Portable EV Charger Extension Cord Home Use Type 2 To Type 2 AC 32A 7KW 22kw
New Portable EV Charger Extension Cord Home Use Type 2 To Type 2 AC 32A 7KW 22kw
New Portable EV Charger Extension Cord Home Use Type 2 To Type 2 AC 32A 7KW 22kw
New Portable EV Charger Extension Cord Home Use Type 2 To Type 2 AC 32A 7KW 22kw
Specifications
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
prophylactic :
Temperature protection
Brand Name :
F.T
MOQ :
1000
Rated current :
16A/32A
Product name :
EV Charging Cable
Model Number :
ev cable
Price :
usd 37～ 43/ meter
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Application :
Electric Vehicle Car Charging
Place of Origin :
china
Supply Ability :
800–1500 kilometers per month
Delivery Time :
30 days
Certificate :
CE TUV ROHS FCC
Certification :
CE，VDE,SO 9001
Description

Product Overview

This Type2-to-Type2 EV charging extension cord is designed for home and public charging scenarios. It safely extends the reach of existing Type2 charging cables, supporting 32A continuous current, 7kW single-phase and 22kW three-phase charging. Built to IEC 62196-2 standards, it fits all Type2-equipped EVs and wallboxes, solving short cable issues for home garages, parking spots and public stations.

Key Technical Specifications

Item Specification

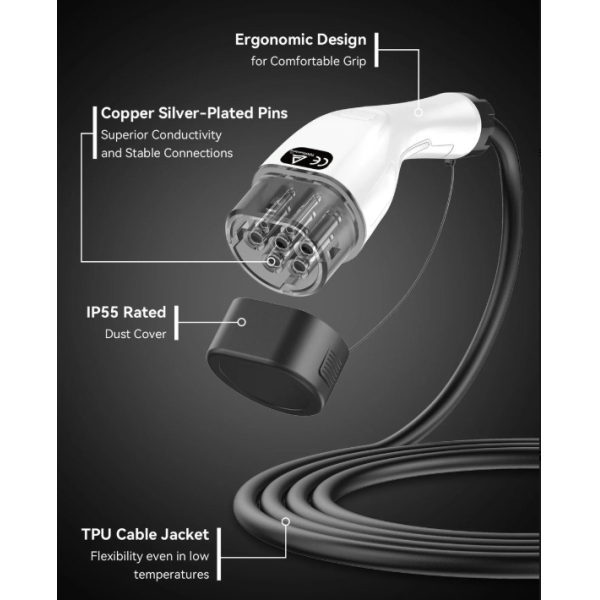

Connector Type2 male to Type2 female (7-pin)
Rated Current 32A (max continuous)
Rated Power 7kW (1-phase, 250V) / 22kW (3-phase, 400V)
Conductor 6mm² high-purity copper, stranded
Insulation/Sheath XLPE insulation + TPU/PVC sheath, oil/UV resistant
Protection Class IP55 (dust & splash proof)
Working Temp -30℃ to +50℃
Cable Length 5m / 8m / custom
Certification CE, TUV, RoHS compliant

New Portable EV Charger Extension Cord Home Use Type 2 To Type 2 AC 32A 7KW 22kw

Core Advantages

  1. Universal Compatibility
    Fits all Type2 EVs (Tesla Model 3/Y, VW ID series, Kia EV6, Hyundai Ioniq 5, etc.) and Type2 wallboxes/portable chargers. Supports both 1-phase and 3-phase charging without adapters.
  2. Safe & Stable Charging
    6mm² copper conductor ensures low resistance and no overheating at 32A. Built-in temperature protection and locking mechanism prevent disconnection and ensure charging safety.
  3. Heavy-Duty Durability
    Abrasion-resistant TPU sheath withstands 10,000+ bends. IP55 rating works in rain, snow and sunlight. IK10 impact resistance handles daily drops and vehicle rolls.
  4. Portable & User-Friendly
    Lightweight and flexible for easy carrying and storage. Ergonomic plug design for one-hand operation. LED indicator shows real-time charging status.
  5. Home & Outdoor Ready
    Ideal for home garages, driveways and multi-vehicle parking. Perfect for public stations with short cables. Extends charging reach without moving wallboxes.

Application Scenarios

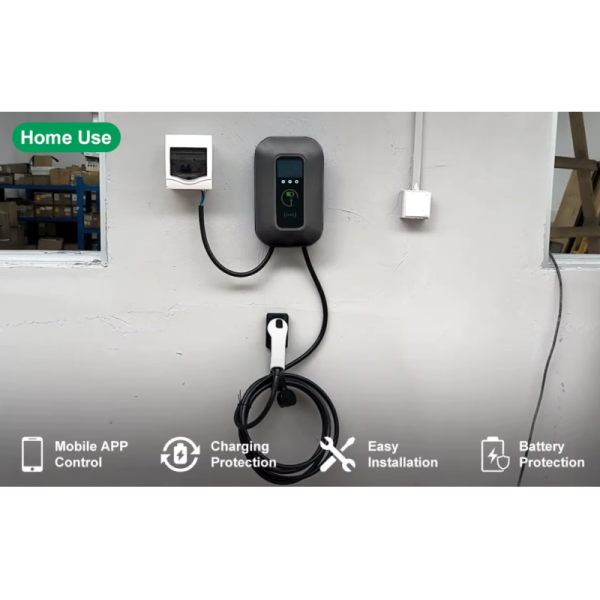

  • Home charging: Extends short wallbox cables to reach distant parking spots.
  • Multi-EV households: One charger serves two vehicles with flexible extension.
  • Public stations: Solves cable shortage issues at Type2 charging points.
  • Outdoor parking: Weatherproof design for driveway and street charging.
  • Travel & emergency: Compact for road trips and backup charging.
