70mm2 95mm2 120mm2 High Voltage EV Cable Shielded Unshielded XLPE Insulated PVC Cables
70mm2 95mm2 120mm2 High Voltage EV Cable Shielded Unshielded XLPE Insulated PVC Cables
70mm2 95mm2 120mm2 High Voltage EV Cable Shielded Unshielded XLPE Insulated PVC Cables
70mm2 95mm2 120mm2 High Voltage EV Cable Shielded Unshielded XLPE Insulated PVC Cables
70mm2 95mm2 120mm2 High Voltage EV Cable Shielded Unshielded XLPE Insulated PVC Cables
70mm2 95mm2 120mm2 High Voltage EV Cable Shielded Unshielded XLPE Insulated PVC Cables
Specifications
Temperature :
-10℃~40℃
Place of Origin :
china
Brand Name :
F.T
Insulation Material :
XLPE
Delivery Time :
30 days
MOQ :
1000
Diameter :
1 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG, 10 AWG, 12 AWG
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Conductor Type :
Stranded
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Supply Ability :
800–1500 kilometers per month
Conductor Material :
Copper
Rated voltage :
1500V
Certification :
CE，VDE,SO 9001
Price :
usd 4.2 ～ 4.29/ meter
Model Number :
ev cable
Description

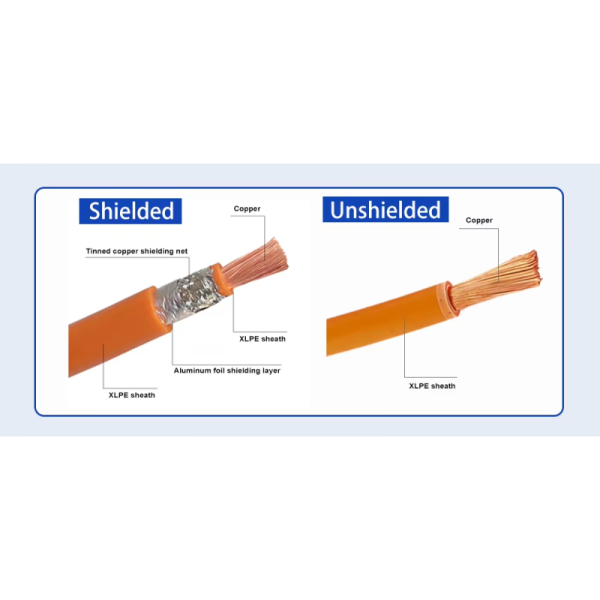

70mm2 95mm2 120mm2 High Voltage EV Cable Shielded and Unshielded XLPE Insulated PVC Cables

What is high-voltage EV Cable?

The electric vehicle high-voltage cable is used to connect the charging port and the battery, the inside of the battery, the
battery and the engine and other components, as a carrier for power transmission. For some reason, the application environment in the car is harsh, and the high-voltage lines of electric vehicles have very high performance requirements.
70mm2 95mm2 120mm2 High Voltage EV Cable Shielded Unshielded XLPE Insulated PVC Cables
Performance
1. Rating Voltage :
AC 1500V
2. Rating Temperature :
-40℃ to +125℃
3. Short-term Aging :
150℃*240h , Comply With ISO6722
4. Long-term Aging :
125℃*3000h , Comply With ISO6722
5. Dielectric Voltage :
6000V/15min
6. Volume resistivity :
109 Ω.mm , Comply With ISO6722
7. Flame Test :
Comply With ISO6722
8. Fluid Compatibility :
Comply With ISO6722
9. Resistance to Ozone :
65℃/192h(1ppm) , Comply With ISO6722
10. Min. Bend Radius :
4*OD@<15mm ; 6*OD@15mm
11. Halogen Free :
PH>4.3 ; Conductivity<10 μS/mm, Comply With GB/T17650
12. Environmental Requirements :
RoHS and REACH Compliant
How to choose

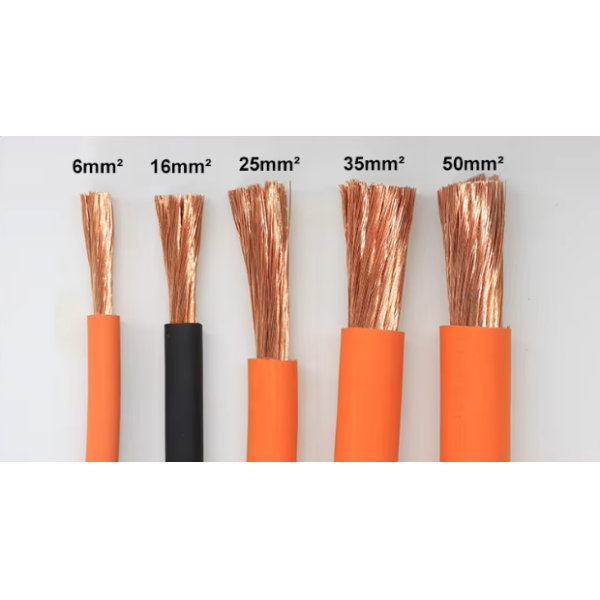

SIZE
20°C MAXIMUM CONDUCTOR RESISTANCE
RATED VOLTAGE
20°C LOAD ACCEPTANCE CURRENT
2.5mm²
7.6
1.5kV
30A
4mm²
4.71
1.5kV
40a
6mm²
3.14
1.5kV
52A
10mm²
1.82
1.5kV
75A
16mm²
1.16
1.5kV
100A
25mm²
0.743
1.5kV
125A
35mm²
0.527
1.5kV
165A
50mm²
0.368
1.5kV
215A
70mm²
0.259
1.5kV
260A
95mm²
0.196
1.5kV
320A
120mm²
0.153
1.5kV
370A
150mm²
0.129
1.5kV
430A
70mm2 95mm2 120mm2 High Voltage EV Cable Shielded Unshielded XLPE Insulated PVC Cables
Applications
70mm2 95mm2 120mm2 High Voltage EV Cable Shielded Unshielded XLPE Insulated PVC Cables
