125°C High Temperature 1500V EV Cable XLPE Insulated High Voltage Cable For EV Charging Pile
125°C High Temperature 1500V EV Cable XLPE Insulated High Voltage Cable For EV Charging Pile
125°C High Temperature 1500V EV Cable XLPE Insulated High Voltage Cable For EV Charging Pile
125°C High Temperature 1500V EV Cable XLPE Insulated High Voltage Cable For EV Charging Pile
125°C High Temperature 1500V EV Cable XLPE Insulated High Voltage Cable For EV Charging Pile
125°C High Temperature 1500V EV Cable XLPE Insulated High Voltage Cable For EV Charging Pile
Specifications
Brand Name :
F.T
Place of Origin :
china
Size :
2.5mm², 4mm², 6mm², 10mm², 16mm², 25mm², 50mm², 70mm², 95mm², 120mm², 150mm²
Supply Ability :
800–1500 kilometers per month
Rated Current :
30-370A
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Application :
Telecommunication, Power Station, Power Distribution, Photovoltaic Power, Computer, Building, Automotive Wiring
Model Number :
ev cable
Conductor Material :
Oxygen-Free Copper Wire
Certification :
CE，VDE,SO 9001
Working Temperature :
-40°C ~ 125°C
Price :
usd 0.5～20/ meter
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
MOQ :
1000
Insulation Material :
XLPE
Rated Voltage :
1500V
Delivery Time :
30 days
Description

125°C High Temperature 1500V EV Cable | XLPE Insulated High Voltage Cable for EV Charging Pile

Product Overview

Engineered for 1500V DC high-power charging systems, this XLPE-insulated EV cable delivers exceptional thermal stability (continuous 125°C operation) and electrical safety. Designed for EV charging piles, battery packs, and high-voltage onboard systems, it balances high current capacity, flexibility, and durability for harsh indoor/outdoor charging environments.

Key Features

1. Superior Thermal & Electrical Performance

  • Temperature Rating: -40°C to +125°C (continuous), withstands 150°C short-term thermal spikes.
  • Voltage Grade: Rated 1500V DC; withstands 6000V AC/5min without breakdown.
  • XLPE Insulation: Cross-linked polyethylene (XLPE) features high dielectric strength, low dielectric loss (tanδ ≤0.005 at 90°C), and excellent resistance to electrical aging.
  • High Current Capacity: Multi-strand tinned copper conductor (Class 5/6 flexible) supports 125A–438A for 50kW–350kW fast charging.

2. Robust Mechanical & Environmental Durability

  • Flexible Construction: Bending radius ≥5×OD (dynamic) / ≥4×OD (static), ideal for frequent coiling/uncoiling in charging piles.
  • Dual Shielding (Optional): Aluminum foil + tinned copper braid (≥75dB EMI suppression) eliminates electromagnetic interference for stable charging signals.
  • Flame Retardant: VW-1 flame test compliant; UL94-V0 rated, self-extinguishing without toxic fumes.
  • Harsh Environment Resistance:
    • Oil/chemical resistant (gasoline, diesel, motor oil).
    • UV & ozone resistant for outdoor charging stations.
    • Low smoke, zero halogen (LSZH) formulation for safety in confined spaces.

3. Compliance & Certification

  • Meets IEC 62893, GB/T 25085, ISO 6722, and QC/T 1037 EV cable standards.
  • CE, RoHS, and REACH certified for global market access.
  • Long-term aging tested (125°C × 3000h) for 10+ year service life.

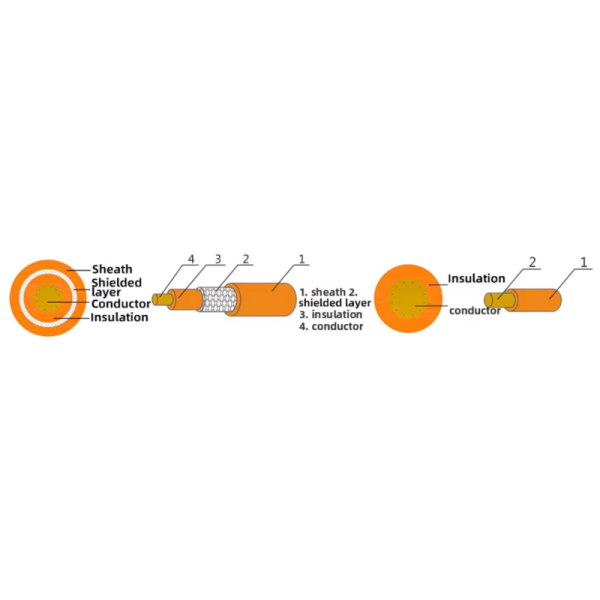

Layer Material Specification
Conductor Tinned annealed copper 2.5–120mm², multi-strand flexible
Insulation XLPE (orange) 0.8–2.0mm thickness, 125°C rated
Shield (Optional) Aluminum foil + tinned copper braid Coverage ≥85%, shielding effectiveness ≥75dB
Sheath LSZH XLPE/TPE Abrasion-resistant, orange (high-voltage warning)
125°C High Temperature 1500V EV Cable XLPE Insulated High Voltage Cable For EV Charging Pile

Applications

  • EV Charging Infrastructure: DC fast-charging piles (50kW–350kW), charging station power distribution cables.
  • Electric Vehicles: High-voltage connections between battery packs, inverters, and onboard chargers.
  • Energy Storage: Battery energy storage systems (BESS) and solar/wind power integration.
  • Heavy-Duty EVs: Buses, trucks, and construction equipment high-voltage wiring.
