HV EV Cable Wiring Harness Customized New Energy Cable XLPE 900V 1500V
HV EV Cable Wiring Harness Customized New Energy Cable XLPE 900V 1500V
HV EV Cable Wiring Harness Customized New Energy Cable XLPE 900V 1500V
HV EV Cable Wiring Harness Customized New Energy Cable XLPE 900V 1500V
HV EV Cable Wiring Harness Customized New Energy Cable XLPE 900V 1500V
HV EV Cable Wiring Harness Customized New Energy Cable XLPE 900V 1500V
Specifications
Model Number :
ev cable
MOQ :
1000
Contact material :
Pure copper
Delivery Time :
30 days
Processing and customization :
Yes
Scope of application :
EV Automotive
Place of Origin :
china
Rated voltage :
1000V/1500V
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Certification :
CE，VDE,SO 9001
Supply Ability :
800–1500 kilometers per month
Production technology :
Terminal crimping
Working frequency :
HV/EV
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Price :
US$88.90-480.88/ Piece
Brand Name :
F.T
Description

Hv/EV Cable Wiring Harness Customized EV Cable XLPE 900V/1500V

1. Product Construction & Core Materials

Engineered for high-voltage electric vehicle systems, this customized wiring harness integrates XLPE-insulated power cables and premium-grade harness components, delivering exceptional electrical performance and mechanical durability. The cable features a robust structure built for 900V/1500V DC high-voltage platforms, compliant with ISO 19642 and LV216 automotive standards.
Parameter Specification
Rated Voltage DC 900V / 1500V (AC 600V / 1000V)
Conductor Size 2.5mm²–120mm² (custom)
Temperature Range -40°C to +150°C (continuous)
Insulation Resistance ≥1000 MΩ·km
Withstand Voltage 3.5kV/1min (1500V grade)
Bending Radius 4×OD (≤15mm); 6×OD (>15mm)
Flame Retardancy IEC 60332-1, self-extinguishing
Oil Resistance IRM902/903, gasoline resistant (20h)
Certification TÜV, UL, RoHS, REACH, CCC

HV EV Cable Wiring Harness Customized New Energy Cable XLPE 900V 1500V

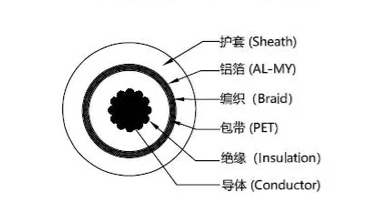

Structure Breakdown:

  • Conductor: Multi-strand annealed bare/tinned copper (Class 5 flexibility), low resistance, high current carrying capacity (20–300A optional).
  • Insulation: XLPE (Cross-Linked Polyethylene) – heat-resistant up to 150°C, excellent dielectric strength, ozone and moisture resistance.
  • Shielding (Optional): Tinned copper braid (coverage ≥85%) for full EMI/RFI suppression, critical for EV electronic compatibility.
  • Outer Sheath: LSZH or PUR, abrasion/oil/chemical resistant, flame retardant (UL94 V-0).
  • Harness Assembly: Custom-length cables, high-current HV connectors, crimped terminals, protective corrugated tubing, and cable ties for neat installation.

  • 4. Applications & Compliance
