Specifications
Model NO. :
SF-300
Installation :
Front, Roof, Under Mounting Type
Electric :
Optional Electric Standby System
Colour :
White
Fan Material :
Aluminium Alloy
Condensor Design :
Latest Exclusively for Refrigeration Unit
Sealing Technology :
Patented O Sealing Technology
Design Base Environment :
45 Degree C
Durability Range :
The Highest Level
Maintenance :
Lower The Cost of Maintance
Transport Package :
Carton Filled with Paper Honeycomb
Trademark :
SNOWFALL
Origin :
Guangzhou, China
HS Code :
8418692090
Supply Ability :
300 Sets Per Month
Certification :
ISO9000
Transmission Type :
Automatic
Bearing Capacity :
Large
Car Type :
Truck
Condition :
New
Service :
OEM
Customization :
Available | Customized Request
Description
SF300 Transport Refrigeration Cooler for Truck
SF-300 Truck Refrigeration Unit with Patented O Sealing Technology Automatic Hot Air Defrost and Aluminium Alloy Fan SF-300 Truck Refrigeration Unit with Patented O Sealing Technology Automatic Hot Air Defrost and Aluminium Alloy Fan SF-300 Truck Refrigeration Unit with Patented O Sealing Technology Automatic Hot Air Defrost and Aluminium Alloy Fan SF-300 Truck Refrigeration Unit with Patented O Sealing Technology Automatic Hot Air Defrost and Aluminium Alloy Fan SF-300 Truck Refrigeration Unit with Patented O Sealing Technology Automatic Hot Air Defrost and Aluminium Alloy Fan SF-300 Truck Refrigeration Unit with Patented O Sealing Technology Automatic Hot Air Defrost and Aluminium Alloy Fan
Key Features
  • Keeps your goods fresh & cooling
  • Compressor: SD5H14
  • Automatically hot air defrost
Technical Specifications
Temperature Range

Applicable Temperature: 15°C to -20°C

Cooling Capacity
  • At 0°C: 2800 Kcal / 3256 W / 11109 BTU
  • At -18°C: 1750 Kcal / 2035 W / 6943 BTU
Compressor
  • Model: SD5H14 (Made in Singapore)
  • Type: Swash plate type
  • Displacement: 138 cc/r
  • Lubricating: POE
Condenser
  • Type: P.F.
  • Fan Type: Axial fan (2 fans × 1000 m³/H)
  • Voltage: DC12V/DC24V

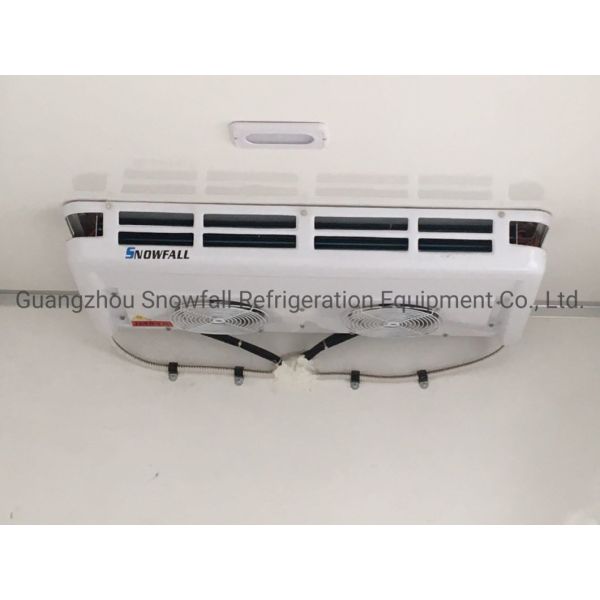

Evaporator
  • Type: Inner screw tube and aluminum fin
  • Fan Type: Axial fan
  • Number of fans: 2 fans × 1000 m³/h
  • Voltage: DC12V/DC24V
Additional Specifications
  • Power Consumption: Between 33A (DC12V) and 16.5A (DC24V)
  • Refrigerant: R-134a or R404a
  • Throttle Type: External equalizer expansion valve
  • Defrost Type: Automatically hot air defrost
  • Structure: Split direct drive unit
Dimensions and Weight
  • Evaporator: 1270 × 580 × 170 mm (50" × 23" × 7") - 31.63 kg
  • Condenser: 1000 × 900 × 170 mm (39" × 35" × 7") - 33.87 kg
Detailed Specifications Table
Model SF-328
Applicable Temperature (°C) 15 to -25
Cooling Capacity (at 35°C environment) 0°C: 3200 Kcal
-18°C: 1960 Kcal
Compressor Model: QP16
Displacement: 168 cc
Condenser Type: P.F.
Fan Type: Axial fan
Number of Fans: 2 Fans × 1000 m³/h
Voltage: DC 12V / DC 24V
Evaporator Type: Inner screw tube and aluminium fin
Fan Type: Axial fan
Number of Fans: 2 Fans × 1000 m³/h
Voltage: DC 12V / DC 24V
Power Consumption ≤ 30A (DC12V)
≤ 18A (DC24V)
Refrigerant R-134a / R-404a
Defrost Type Automatically hot air defrost
Structure Split direct drive unit
Dimensions (mm) / Net Weight (kg) SF-328 Evaporator: L640 × W1290 × H180 | 30.2 kg
SF-328 Condenser: L520 × W1080 × H370 | 28.3 kg
SF-U328 Evaporator: L640 × W1290 × H180 | 30.2 kg
SF-U328 Condenser: L310 × W885 × H375 | 15.6 kg
Electric Standby System (Optional) AC 220V / AC 380V
Quality Assurance

Rest assured that our products are high quality, competitively priced, and reliable. Our products have been exported to many countries for years and enjoy a great reputation. Our overseas markets include: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Middle East, Eastern Asia, and Western Europe.
