Specifications
Model NO. :
SF-533
Colour :
White
Fan Material :
Aluminium Alloy
Condensor Design :
Lastest Exclusively for Refrigeration Unit
Sealing Technology :
Patented O Sealing Technology
Design Base Environment :
45 Degree C
Durability Range :
The Highest Level
Maintenance :
Lower The Cost of Maintance
Transport Package :
Wood or Carton
Trademark :
SNOWFALL
Origin :
Guangzhou, China
HS Code :
8418692090
Supply Ability :
350 Sets Per Month
Cooling Method :
Direct Cooling
Certification :
ISO
Condition :
New
Service :
OEM
Installation :
Front Mounting Type
Electric :
Optional Electric Standby System
Customization :
Available | Customized Request
Description

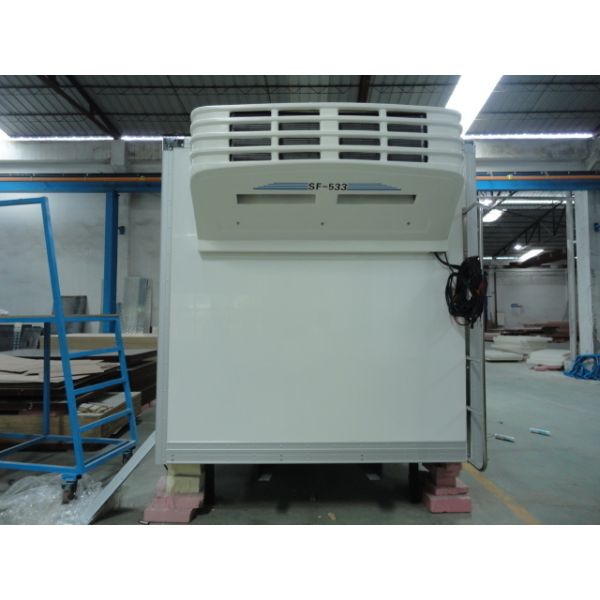

Truck Refrigeration Unit SF-533

The SF-533 is a high-performance integral truck refrigeration unit designed for reliable temperature control in transport applications.

Key Features
  • Integral unit design for seamless installation
  • Latest generation compressor technology
  • Automatic defrost system
  • SD7L15 compressor model
Product Images
Electric Standby System Optional Truck Refrigeration Unit for Food Freezer Truck Electric Standby System Optional Truck Refrigeration Unit for Food Freezer Truck Electric Standby System Optional Truck Refrigeration Unit for Food Freezer Truck Electric Standby System Optional Truck Refrigeration Unit for Food Freezer Truck Electric Standby System Optional Truck Refrigeration Unit for Food Freezer Truck
Technical Specifications
Unit Model SF-533
Applicable Temperature 15°C ~ -20°C
Cooling Capacity (Environmental Temperature 35°C) 0°C: 3300Kcal/3838W/13095BTU
-18°C: 2050Kcal/2384W/8134BTU

Compressor Model SD7L15
Compressor Displacement 151 cc/r
Condenser Type P.F.
Condenser Fan Type Axial Fan
Number of Condenser Fans 2 Fans × 1000m³/h
Condenser Voltage DC 12V / DC 24V
Evaporator Type Inner screw tube and aluminium fin
Evaporator Fan Type Axial Fan
Number of Evaporator Fans 2 Fans × 1000m³/h
Evaporator Voltage DC 12V / DC 24V
Power Consumption ≤36A (DC 12V) / ≤20A (DC 24V)
Refrigerant R-134a / R-404a
Defrost Type Automatically hot air defrost
Structure Integral unit
Electrical Standby System (Optional) AC 220V / AC 380V / 415V
Dimensions (mm) 1665 × 760 × 490
Net Weight 104 kg
