Truck Refrigerator for Refrigerated Truck SF-328 Lowering Your Maintenance Expenses
Truck Refrigerator for Refrigerated Truck SF-328 Lowering Your Maintenance Expenses
Truck Refrigerator for Refrigerated Truck SF-328 Lowering Your Maintenance Expenses
Truck Refrigerator for Refrigerated Truck SF-328 Lowering Your Maintenance Expenses
Specifications
Model NO. :
SF-328
Sealing Technology :
Patented O Sealing Technology
Design Base Environment :
45 Degree C
Durability Range :
The Highest Level
Maintenance :
Lower The Cost of Maintance
Transport Package :
Carton Filled with Paper Honeycomb
Trademark :
SNOWFALL
Origin :
Guangzhou, China
HS Code :
8418692090
Supply Ability :
300 Sets Per Month
Service :
OEM
Installation :

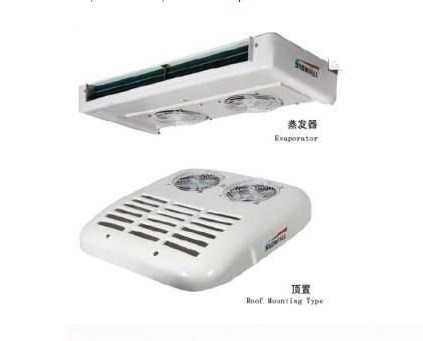

Front, Roof, Under Mounting Type
Electric :
Optional Electric Standby System
Colour :
White
Fan Material :
Aluminium Alloy
Condensor Design :
Lastest Exclusively for Refrigeration Unit
Customization :
Available | Customized Request
Description
Truck Refrigeration Unit SF-T328
Truck Refrigerator for Refrigerated Truck SF-328 Lowering Your Maintenance Expenses Truck Refrigerator for Refrigerated Truck SF-328 Lowering Your Maintenance Expenses Truck Refrigerator for Refrigerated Truck SF-328 Lowering Your Maintenance Expenses
Key Features
  • Maintains optimal freshness and cooling for transported goods
  • SD5H14 compressor for reliable performance
  • Automatic hot air defrost system
  • Split direct drive unit structure
Technical Specifications
Applicable Temperature Range 15°C to -20°C
Cooling Capacity (at 0°C) 2800 Kcal / 3256 W / 11109 BTU
Cooling Capacity (at -18°C) 1750 Kcal / 2035 W / 6943 BTU
Compressor Model: SD5H14 (Made in Singapore)
Type: Swash plate
Displacement: 138 cc/r
Lubrication: POE
Condenser Type: P.F
Fan Type: Axial fan (2 fans × 1000 m³/H)
Voltage: DC12V/DC24V

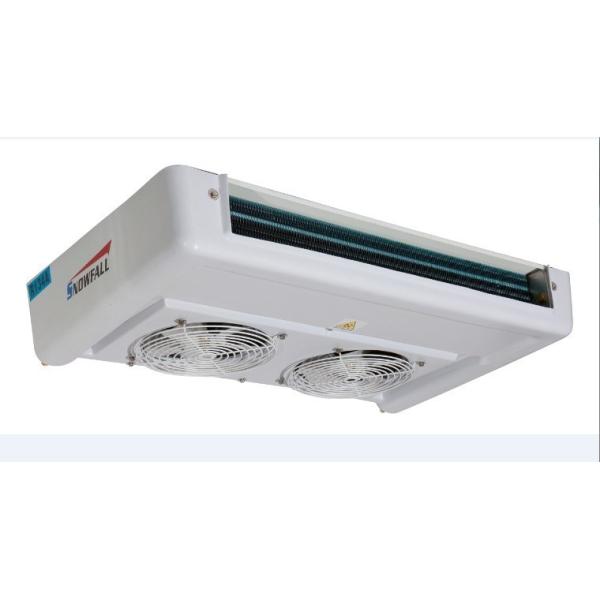

Evaporator Type: Inner screw tube and aluminum fin
Fan Type: Axial fan
Number of fans: 2 fans × 1000 m³/h
Voltage: DC12V/DC24V
Power Consumption Between 33A (DC12V) and 16.5A (DC24V)
Refrigerant R-134a or R404a
Throttle Type External equalizer expansion valve
Defrost Type Automatic hot air defrost
Structure Split direct drive unit
Dimensions & Weight Evaporator: 1270 × 580 × 170 mm (50" × 23" × 7") - 31.63 kg
Condenser: 1000 × 900 × 170 mm (39" × 35" × 7") - 33.87 kg
Our products are manufactured with high quality standards, competitive pricing, and proven reliability. With years of export experience to global markets, we have established an excellent reputation worldwide.
Global Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Middle East, Eastern Asia, Western Europe
