Truck Refrigeration Unit with Optional Electric Standby System Lower Maintenance Cost
Truck Refrigeration Unit with Optional Electric Standby System Lower Maintenance Cost
Specifications
Model NO. :
SF-T318
Condensor Design :
Lastest Exclusively for Refrigeration Unit
Sealing Technology :
Patented O Sealing Technology
Design Base Environment :
45 Degree C
Durability Range :
The Highest Level
Maintenance :
Lower The Cost of Maintanance
Transport Package :
Carton Filled with Paper Honeycomb
Trademark :
SNOWFALL
Origin :
Guangzhou, China
HS Code :
8418692090
Supply Ability :
300 Sets Per Month
Condition :
New
Service :
OEM
Installation :
Front, Roof, Under Mounting Type
Electric :
Optional Electric Standby System
Colour :
White
Fan Material :
Aluminium Alloy
Customization :
Available | Customized Request
Description
Truck Refrigeration Unit SF-T318
Product Overview

The SF-T318 Truck Refrigeration Unit is designed to maintain optimal temperature conditions for perishable goods during transport, ensuring freshness and quality preservation.

  • Maintains freshness and cooling for transported goods
  • Features SD5H14 compressor for reliable performance

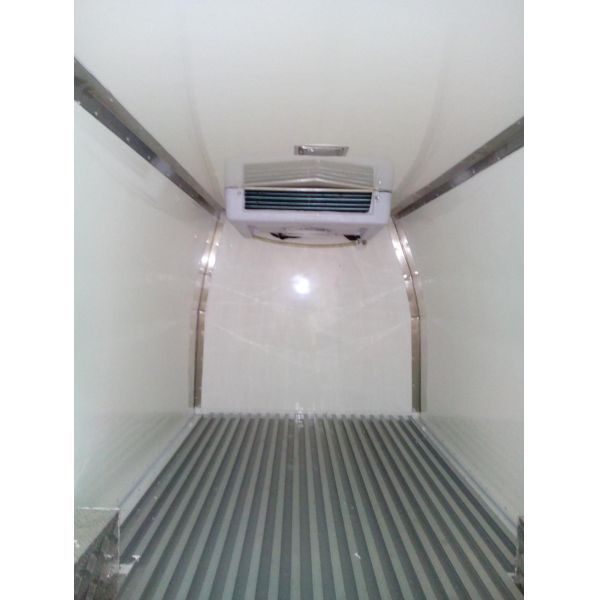

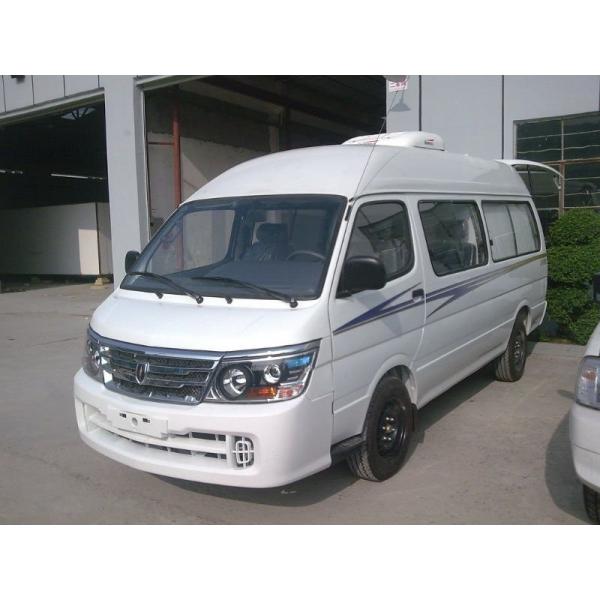

  • Roof-mounted design for space efficiency
Product Images
Truck Refrigeration Unit with Optional Electric Standby System Lower Maintenance Cost Truck Refrigeration Unit with Optional Electric Standby System Lower Maintenance Cost
Technical Specifications
Specification Details
Unit Model SF-318
Applicable Temperature 20°C ~ -5°C
Cooling Capacity Environmental Temperature: 35°C
0°C: 1800Kcal/2093W/7142BTU
Compressor Model: SD5S14
Displacement: 138 cc/r
Condenser Type: P.F.
Fan Type: Axial Fan
Number of Fans: 1 × 800m³/h
Voltage DC 12V / DC 24V
Evaporator Type: Inner screw tube and aluminium fin
Fan Type: Axial Fan
Number of Fans: 1 × 1000m³/h
Voltage DC 12V / DC 24V
Power Consumption ≤22A (DC 12V) / ≤11A (DC 24V)
Refrigerant R-134a
Structure Split direct drive unit
Electrical Standby System (Optional) AC 220V / AC 380V/415V
Dimensions & Net Weight SF-318 Evaporator: 790×590×170 mm | 18.34 kg
SF-318 Condenser: 800×480×180 mm | 17.88 kg
SF-T318 Condenser: 870×700×150 mm | 21.33 kg
