White Sealing Technology Refrigeration Unit for Refrigeration/Freezer Truck SF-328
White Sealing Technology Refrigeration Unit for Refrigeration/Freezer Truck SF-328
White Sealing Technology Refrigeration Unit for Refrigeration/Freezer Truck SF-328
White Sealing Technology Refrigeration Unit for Refrigeration/Freezer Truck SF-328
White Sealing Technology Refrigeration Unit for Refrigeration/Freezer Truck SF-328
White Sealing Technology Refrigeration Unit for Refrigeration/Freezer Truck SF-328
White Sealing Technology Refrigeration Unit for Refrigeration/Freezer Truck SF-328
White Sealing Technology Refrigeration Unit for Refrigeration/Freezer Truck SF-328
White Sealing Technology Refrigeration Unit for Refrigeration/Freezer Truck SF-328
White Sealing Technology Refrigeration Unit for Refrigeration/Freezer Truck SF-328
White Sealing Technology Refrigeration Unit for Refrigeration/Freezer Truck SF-328
White Sealing Technology Refrigeration Unit for Refrigeration/Freezer Truck SF-328
Specifications
Model NO. :
SF-328
Condenser Design :
Lastest Exclusively for Refrigeration Unit
Sealing Technology :
Patented O Sealing Technology
Design Base Environment :
45 Degree C
Durability Range :
The Highest Level
Maintenance :
Lower The Cost of Maintance
Transport Package :
Carton Filled with Paper Honeycomb
Trademark :
SNOWFALL
Origin :
Guangzhou, China
HS Code :
8418692090
Supply Ability :
400 Sets Per Month
Certification :
ISO9000
Service :
OEM
Installation :
Front, Roof, Under Mounting Type
Electric :
Optional Electric Standby System
Colour :
White
Fan Material :
Aluminium Alloy
Customization :
Available | Customized Request
Description
Truck Refrigeration Unit SF-328

The SF-328 truck refrigeration unit is designed to maintain optimal temperature conditions for transporting perishable goods, ensuring your products stay fresh and properly cooled throughout transit.

Key Features
  • Maintains product freshness with reliable cooling performance
  • SD5H14 compressor for efficient operation
  • Automatic hot air defrost system for consistent performance

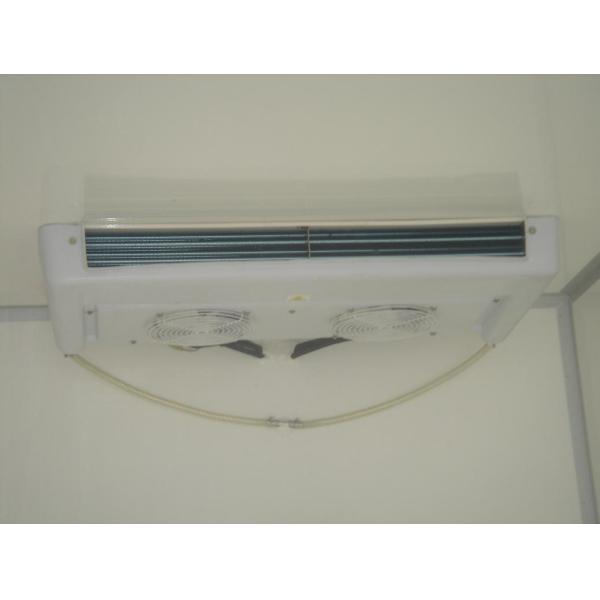

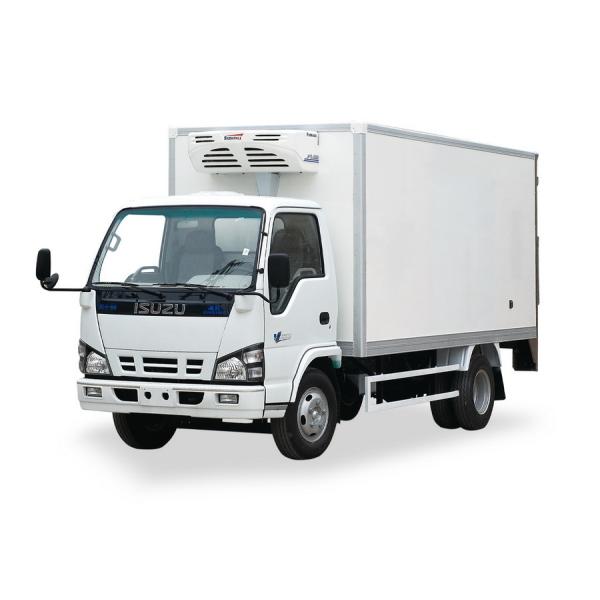

Product Images
White Sealing Technology Refrigeration Unit for Refrigeration/Freezer Truck SF-328 White Sealing Technology Refrigeration Unit for Refrigeration/Freezer Truck SF-328
Technical Specifications
Specification Details
Unit Model SF-328
Applicable Temperature 15°C ~ -20°C
Cooling Capacity Environmental Temperature: 35°C
0°C: 2800Kcal/3256W/11109BTU
-18°C: 175Kcal/2035W/6943BTU
Compressor Model: SD5S14
Type: Swash plate type
Displacement: 138 cc/r
Lubricating: POE
Condenser Type: P.F.
Fan Type: Axial Fan
Number of Fans: 2 Fans * 1000m³/h
Voltage: DC 12V / DC 24V
Evaporator Type: Inner screw tube and aluminium fin
Fan Type: Axial Fan
Number of Fans: 2 Fans * 1000m³/h
Voltage: DC 12V / DC 24V
Power Consumption ≤33A (DC 12V) / ≤16.5A (DC 24V)
Throttle Type External equalizer expansion valve
Refrigerant R-134a / R-404a
Defrost Type Automatic hot air defrost
Structure Split direct drive unit
Electrical Standby System (optional) AC 220V / AC 380V / 415V
Dimensions & Net Weight SF-328 Evaporator: 1270×580×170 mm | 31.63 kg
SF-328 Condenser: 1080×430×350 mm | 30 kg
SF-T328 Condenser: 1000×900×170 mm | 33.87 kg
SF-U328 Condenser: 890×270×380 mm | 25.03 kg
