Specifications
Colour :
White
Fan Material :
Aluminium Alloy
Condensor Design :
latest Exclusively for Refrigeration Unit
Sealing Technology :
Patented O Sealing Technology
Durability Range :
The Highest Level
Maintenance :
Lower The Cost of Maintance
Transport Package :
Carton
Trademark :
SNOWFALL
Origin :
Guangzhou, China
HS Code :
8418692090
Supply Ability :
5000 Sets/ Year
Type :
Cooling System
Application Fields :
Refrigerated Trucks
Condition :
New
Service :
OEM
Installation :
Front, Roof, Under Mounting Type
Electric :
Optional Electric Standby System
Customization :
Available | Customized Request
Description
Truck Refrigeration Unit SF-318
Advanced truck refrigeration unit featuring latest design condenser and superior sealing performance.
Key Features
  • Latest design condenser for optimal performance
  • Excellent sealing capabilities
  • Compressor Model: SD5H14
  • R-134a refrigerant system
Technical Specifications
Unit Model SF-318
Applicable Temperature 20°C ~ -5°C
Cooling Capacity Environmental Temperature: 35°C
0°C: 1800Kcal/2093W/7142BTU
Compressor Model: SD5S14
Displacement: 138 cc/r
Condenser Type: P.F.
Fan Type: Axial Fan
Number of Fans: 1 Fan × 800m³/h
Voltage: DC 12V / DC 24V
Evaporator Type: Inner screw tube and aluminum fin
Fan Type: Axial Fan
Number of Fans: 1 Fan × 1000m³/h
Voltage: DC 12V / DC 24V
Power Consumption ≤22A (DC 12V) / ≤11A (DC 24V)
Refrigerant R-134a
Structure Split direct drive unit
Electrical Standby System (Optional) AC 220V / AC 380V/ 415V

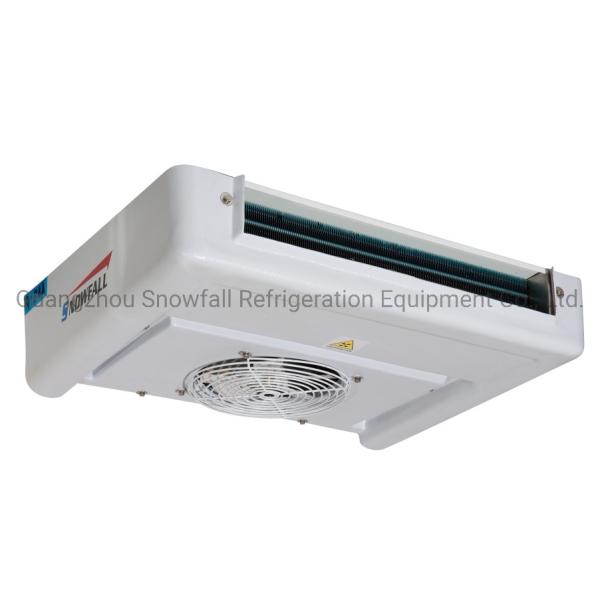

Dimensions & Net Weight SF-318 Evaporator: 790×590×170mm / 18.34kg

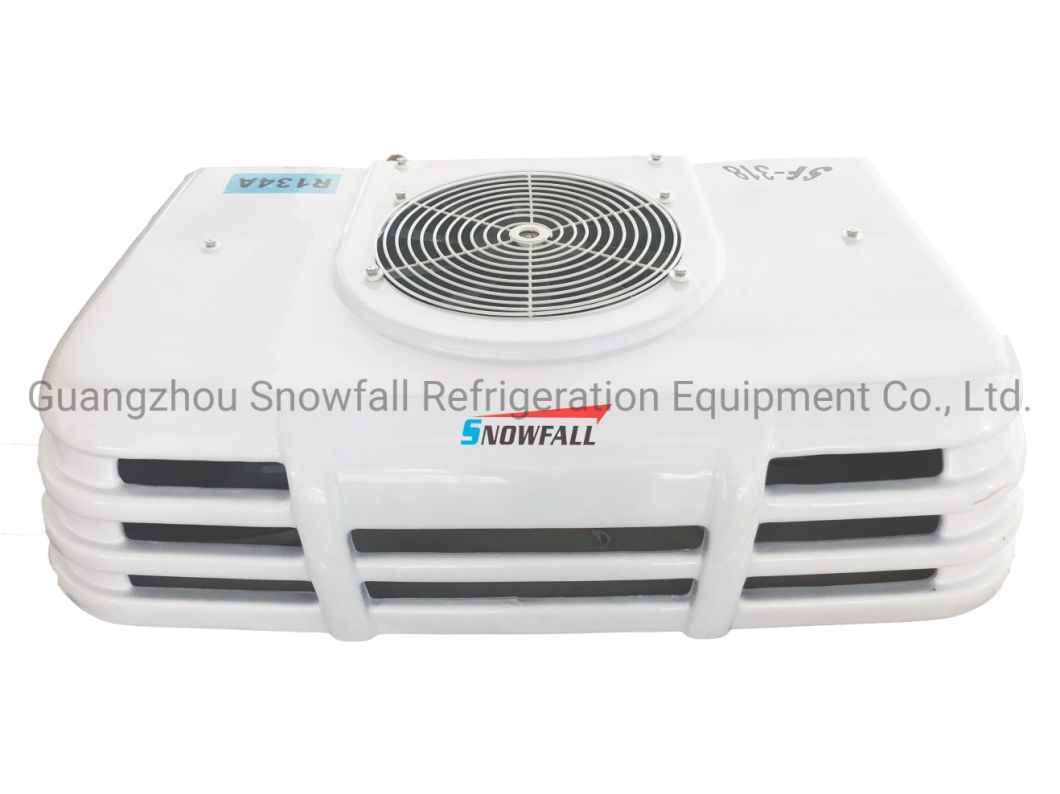

SF-318 Condenser: 800×480×180mm / 17.88kg
SF-T318 Condenser: 870×700×150mm / 21.33kg
Product Images
Frozen Food Transport Cooling Units Refrigerated Chiller Unit Front Installation Frozen Food Transport Cooling Units Refrigerated Chiller Unit Front Installation Frozen Food Transport Cooling Units Refrigerated Chiller Unit Front Installation Frozen Food Transport Cooling Units Refrigerated Chiller Unit Front Installation Frozen Food Transport Cooling Units Refrigerated Chiller Unit Front Installation
Global Reach
Our refrigeration products have been exported worldwide for years and enjoy excellent reputation in markets including North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Middle East, Eastern Asia, and Western Europe.
