Specifications
Dimensions :
235.0mm x 143.0mm x 5.0mm
Supply Ability :
5000000000 pieces/year
Product Name :
1024x600 IPS LCM TFT 10.1 Inch LCD Display With 50 Pin RGB Interface
Supply Voltage :
3.3V
Place of Origin :
China
Packaging Details :
Partition + A/S Bag + Corrugated Bar + Carton
Display Size :
10.1 inch
Touch Screen :
Without (Optional with touch screen)
Color :
Color
Payment Terms :
T/T,L/C,Credit card,Cash
Viewing Angle :
All
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
MOQ :
1 piece
Interface :
50 Pin, 24 BIT RGB
Display Type :
10.1 Inch IPS TFT LCD Display
Operating Temperature :
-20°C to 70°C
Resolution :
1024 x 600
Brand Name :
Formike
Model Number :
KWH101KQ17-F01
Description

1024x600 IPS LCM TFT 10.1 Inch LCD Display With 50 Pin RGB Interface

IPS LCM LCD 10.1 Inch Display TFT Colour Screen With 50 Pin RGB Interface 1024x600

Product Name 1024x600 IPS LCM TFT 10.1 Inch LCD Display With 50 Pin RGB Interface
LCD Size 10.1 Inch IPS TFT LCD Display Module
Display Mode Transmissive, IPS
Resolution 1024x600
Outline Dimension (mm) 235.00x143.00x5.0
Active Area (mm) 222.72x125.28
Dot pitch (mm) 0.2175x0.2088
Viewing Direction ALL
Interface RGB Interface, 50 Pin
Display Mode 16M
Brightness (Cd/m2) 350
Contrast Ratio 1000:1
Backlight 42 White LED

Backlight Supply

(Current/Voltage)

 280mA 9.6V
Touch Screen Without (Optional with touch panel)

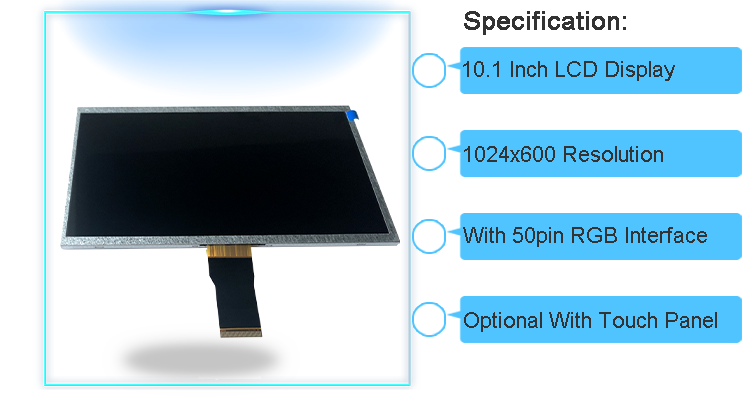

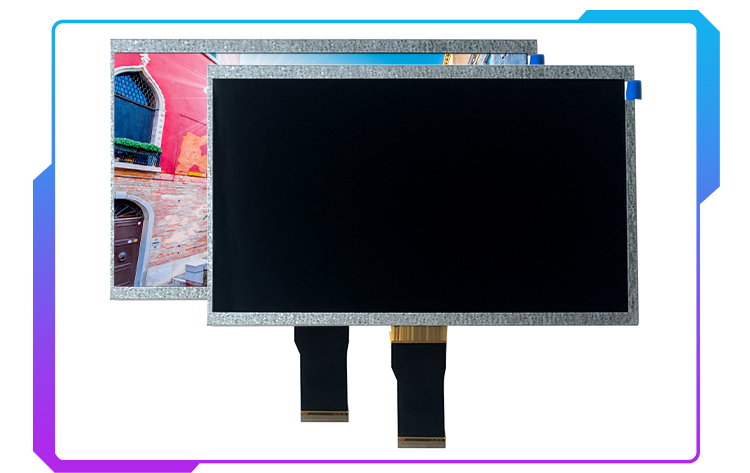

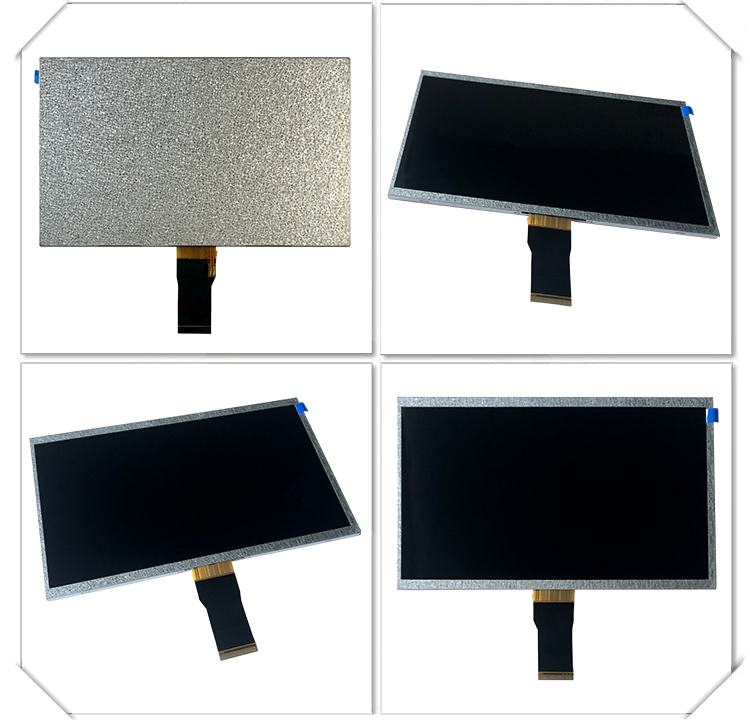

* KWH101KQ17-F01 is a IPS type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 1024x600 resolution IPS TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
