Specifications
Resolution :
800 * 1280
Driver IC :
ILI9881C
Place of Origin :
China
Model Number :
KWH101KQ14-C01
Product Name :
10 Inch TFT Display 800x1280 WXGA Screen LCD Touch Panel With 40 Pin MIPI Interface
Packaging Details :
Partition + A/S Bag + Corrugated Bar + Carton
Display Size :
10.1"
Brand Name :
Formike
Display Type :
10.1 Inch IPS TFT LCD Panel
MOQ :
1 piece
Supply Ability :
5000000000 pieces/year
Supply Voltage :
2.8V
Operating Temperature :
-20°C to 70°C
Touch Screen :
With capacitive touch screen
Color :
Color
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Dimensions :
149.36mm x 235.58mm x 4.40mm
Viewing Angle :
All
Payment Terms :
T/T,L/C,Credit card,Cash
Interface :
40 Pin, MIPI
Description

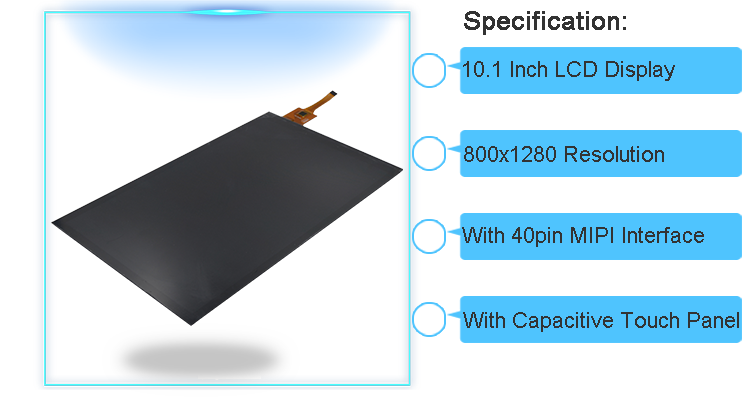

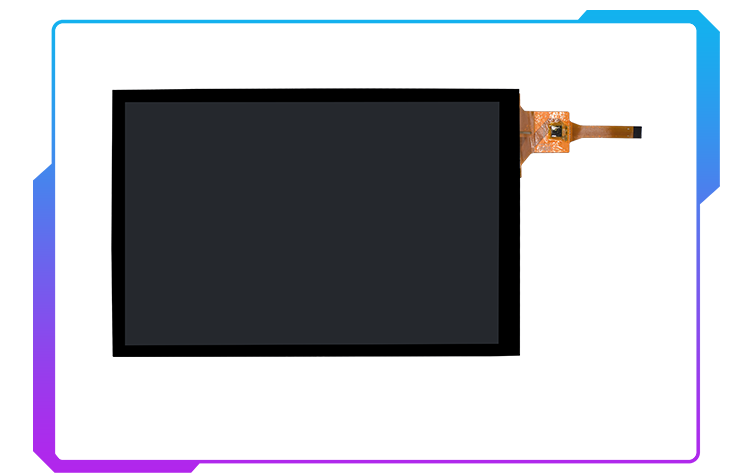

10 Inch TFT Display 800x1280 WXGA Screen LCD Touch Panel With 40 Pin MIPI Interface

TFT 10.1 Inch Display 800x1280 WXGA Screen LCD Touch Panel 40Pin MIPI Interface

Product Name 10 Inch TFT Display 800x1280 WXGA Screen LCD Touch Panel With 40 Pin MIPI Interface
LCD Size 10.1 Inch TFT LCD Display Module
Display Mode IPS
Resolution 800x1280
Outline Dimension (mm) 149.36x235.58x4.40
Active Area (mm) 135.36x216.58
Dot pitch (mm) 0.1692x0.1692
Viewing Direction All
Interface MIPI Interface, 40 Pin
Driver IC ILI9881C
Brightness (Cd/m2) 220
Contrast Ratio 800:1
Backlight 27 White LED

Backlight Supply

(Current/Voltage)

 180mA 9.6V
Touch Screen With Capacitive Touch Screen Panel

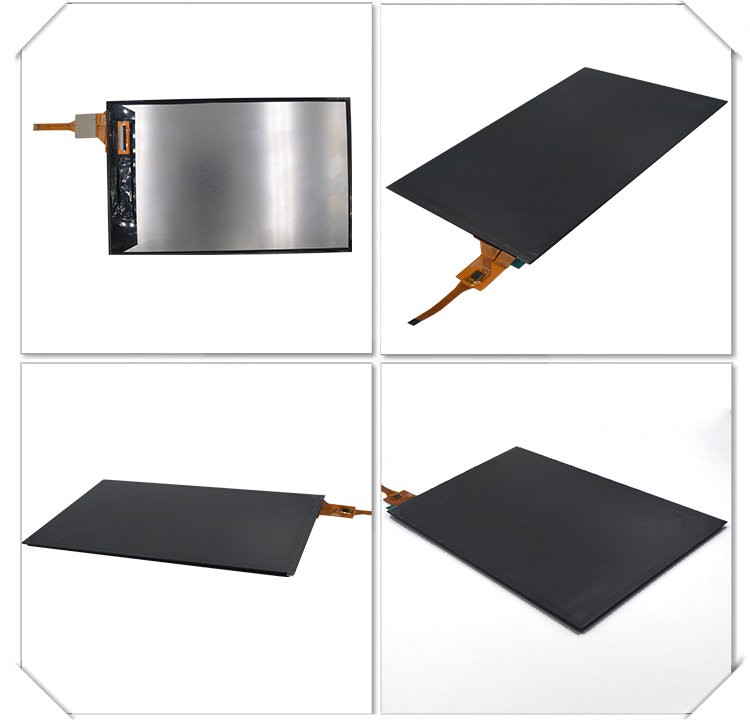

* KWH101KQ14-C01 is a IPS type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 800x1280 resolution TFT LCD module.

* Backlight with different brightness options from 220 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
