Specifications
Dimensions :
229.46mm x 149.10mm x 4.90mm
Operating Temperature :
0°C to 50°C
Interface :
40Pin, LVDS
Place of Origin :
China
Supply Ability :
5000000000 pieces/year
Touch Screen :
With capacitive touch screen
Product Name :
1280x800 LCD TFT LVDS Touch Screen Display 10 Inch LCD Module
Display Size :
10 inch
MOQ :
1 piece
Packaging Details :
Partition + A/S Bag + Corrugated Bar + Carton
Model Number :
KWH101KQ07-C01
Display Type :
10.1 Inch TFT LCD Display
Resolution :
1280x800
Brand Name :
Formike
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Color :
Color
Viewing Angle :
All
Payment Terms :
T/T,L/C,Credit card,Cash
Description

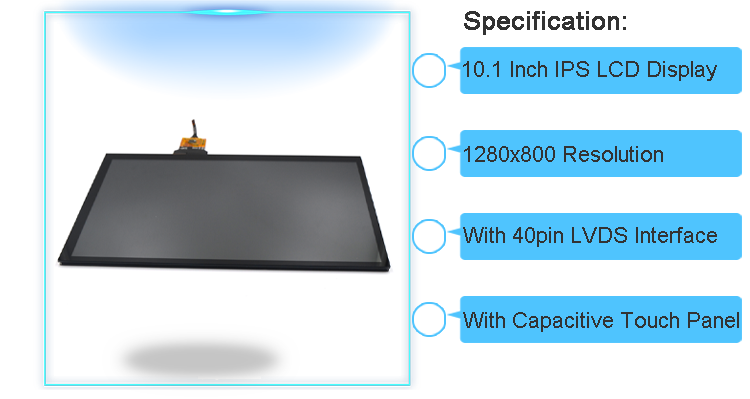

1280x800 LCD TFT LVDS Touch Screen Display 10 Inch LCD Module

1280x800 LCD TFT LVDS Touch Screen 10.1 Inch Display LCD Module Flat Panel

Product Name 1280x800 LCD TFT LVDS Touch Screen Display 10 Inch LCD Module
LCD Size 10.1 Inch TFT LCD Display Module
Display Mode IPS
Resolution 1280x800
Outline Dimension (mm) 229.46x149.10x4.90
Active Area (mm) 216.96x135.60
Dot pitch (mm) 0.1695x0.1695
Viewing Direction All
Interface LVDS Interface, 40 Pin
Surface Hardness 6H
Brightness (Cd/m2) 350
Contrast Ratio 800:1
Backlight 30 White LED

Backlight Supply

(Current/Voltage)

 200mA 8.8V
Touch Screen With Capacitive Touch Panel

* KWH101KQ07-C01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 1280x800 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
