Specifications
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Dimensions :
143.0mm x 228.6mm x 2.8mm
Product Name :
10.1 Inch TFT LCD IPS 800x1280 WXGA Display MIPI DSI Screen
Supply Ability :
5000000000 pieces/year
Viewing Angle :
All
Display Type :
10.1 Inch IPS TFT LCD Screen
Touch Screen :
Without (Optional with touch screen)
Resolution :
800 x 1280
Model Number :
KWH101KQ14-F01
Place of Origin :
China
Color :
Color
Operating Temperature :
-20°C to 70°C
Payment Terms :
T/T,L/C,Credit card,Cash
Interface :
40 Pin, MIPI
Supply Voltage :
2.8V
MOQ :
1 piece
Brand Name :
Formike
Packaging Details :
Partition + A/S Bag + Corrugated Bar + Carton
Display Size :
10.1inch
Description

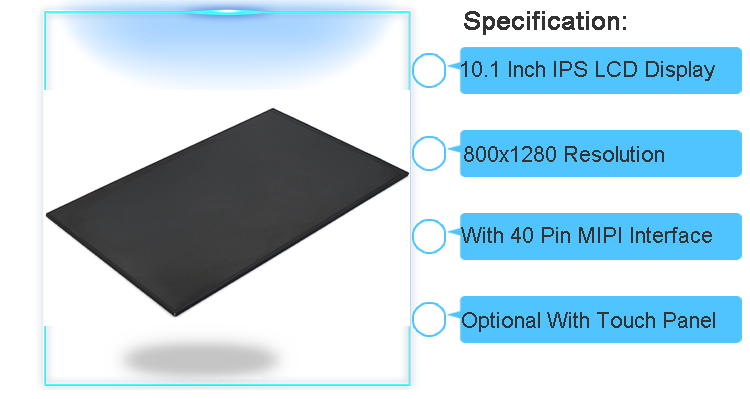

10.1 Inch TFT LCD IPS 800x1280 WXGA Display MIPI DSI Screen

800x1280 10.1 Capacitive Touch Screen LCD IPS WXGA TFT Laptop Display MIPI DSI

Product Name 10.1 Inch TFT LCD IPS 800x1280 WXGA Display MIPI DSI Screen
LCD Size 10.1 Inch IPS TFT LCD Display Module
Display Mode IPS
Resolution 800x1280

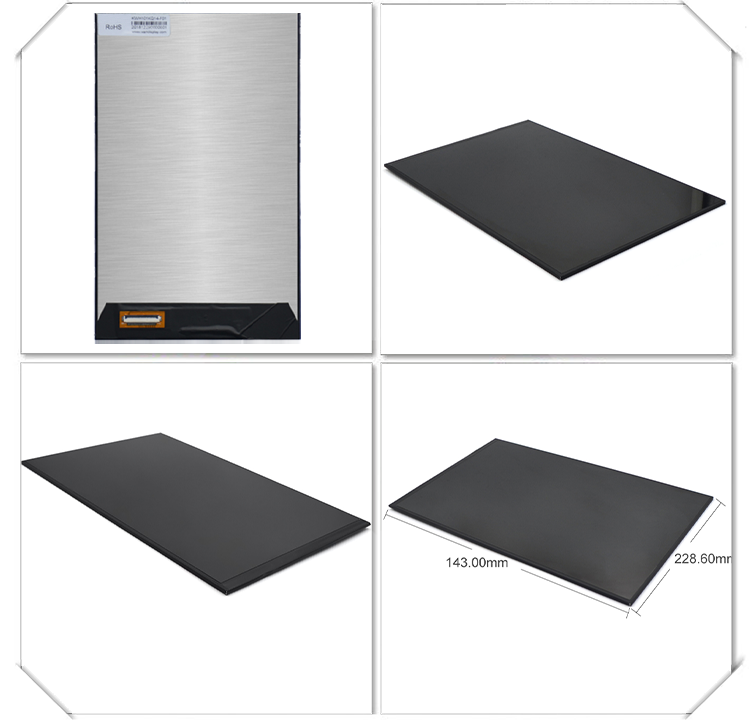

Outline Dimension (mm) 143.00x228.60x2.80
Active Area (mm) 135.36x216.58
Dot pitch (mm) 0.1692x0.1692
Viewing Direction All
Interface MIPI Interface, 40 Pin
Driver IC ILI9881C
Brightness (Cd/m2) 250
Contrast Ratio 800:1
Backlight 27 White LED

Backlight Supply

(Current/Voltage)

 180mA 9.6V
Touch Screen Optional With Capacitive Touch Panel

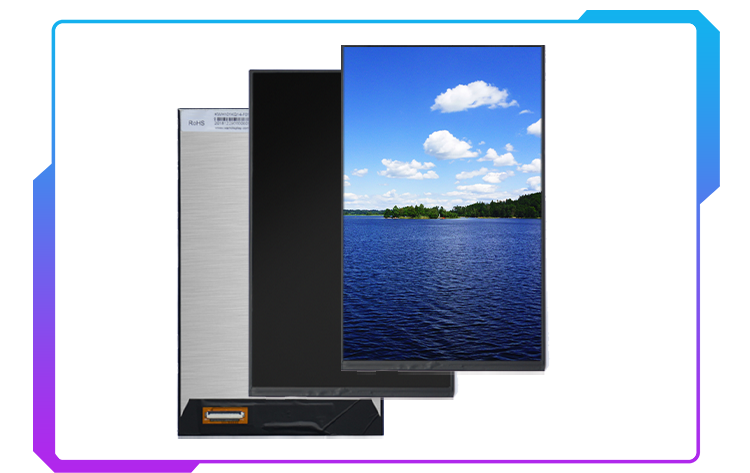

* KWH101KQ14-F01 is a IPS type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD Display, driver IC, FPC, backlight.

* It is 800x1280 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

800x1280 10.1 Capacitive Touch Screen LCD IPS WXGA TFT Laptop Display MIPI DSI800x1280 10.1 Capacitive Touch Screen LCD IPS WXGA TFT Laptop Display MIPI DSI
