Specifications
Resolution :
1280x800
MOQ :
1 piece
Product Name :
LVDS TFT 10.1 Display 1280x800 IPS 10 Inch LCD Panel
Model Number :
KWH101KQ07-F01
Payment Terms :
T/T,L/C,Credit card,Cash
Display Size :
10inch
Packaging Details :
Partition + A/S Bag + Corrugated Bar + Carton
Display Type :
10.1 Inch IPS TFT LCD Module
Supply Ability :
5000000000 pieces/year
Supply Voltage :
3.3V
Operating Temperature :
0°C to 50°C
Brand Name :
Formike
Place of Origin :
China
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Touch Screen :
Without (Optional with touch screen)
Dimensions :
229.46mm x 149.10mm x 2.50mm
Viewing Angle :
All
Color :
Color
Interface :
40 Pin, LVDS
Description

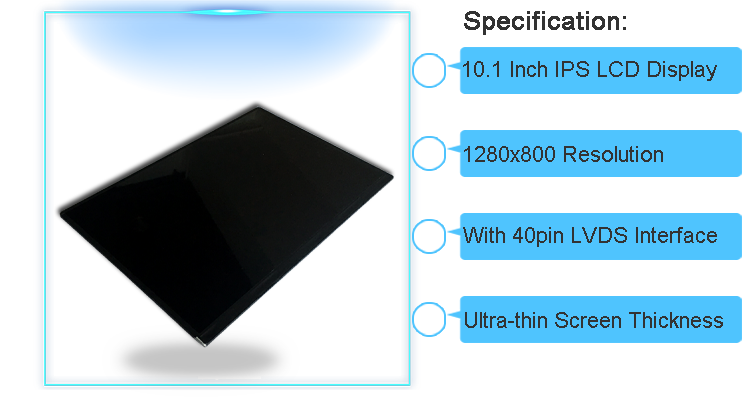

LVDS TFT 10.1 Display 1280x800 IPS 10 Inch LCD Panel

LVDS 1280x800 IPS LCD 10.1 Inch TFT IPS Display Panel 3.3V Customized

Product Name LVDS TFT 10.1 Display 1280x800 IPS 10 Inch LCD Panel
LCD Size 10.1 Inch TFT LCD Display Module
Display Mode IPS
Resolution 1280x800
Outline Dimension (mm) 229.46x149.10x2.50
Active Area (mm) 216.96x135.60
Dot pitch (mm) 0.1695x0.1695
Viewing Direction 6 O'Clock
Interface LVDS Interface, 40 Pin
Brightness (Cd/m2) 350
Contrast Ratio 800:1
Backlight 30 White LED

Backlight Supply

(Current/Voltage)

 200mA 8.8V
Touch Screen Without

* KWH101KQ07-F01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 1280x800 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
