Specifications
Supply Ability :
5000000000 pieces/year
Operating Voltage :
5V
Display Type :
LCD Graphic Display
Operating Temperature :
-20°C to 70°C
Backlight :
LED
Interface :
21 Pin, 8 bit Parallel
Place of Origin :
China
Product Name :
240 * 128 LCD Module 21 Pin LCD Display China Monochrome LCD Screen with 8 BIT Parallel Interface
Model Number :
WG2412Y4SGW6B-C
Viewing Angle :
6 O'clock
Brand Name :
Formike
Display Mode :
STN
Payment Terms :
T/T,L/C,Credit card,Cash
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Packaging Details :
Tray + Inner Box + Carton
Display Format :
240 x 128 Dots
MOQ :
1 piece
Controller :
SAP1024B
Backlight Color :
White display dot on blue background with white backlight
Dimensions :
144mm * 104mm * 17mm
Description

240 * 128 LCD Module 21 Pin LCD Display China Monochrome LCD Screen with 8 BIT Parallel Interface

Monochrome FSTN 240x128 LCD Module 21 Pin Display Screen with 8 BIT Parallel Interface

LCD Name

240 * 128 LCD Module 21 Pin LCD Display China Monochrome LCD Screen with 8 BIT Parallel Interface

Display Format

240*128

Display Mode

STN,Transmissive, Negative

Outline Dimension

144*104*17 mm

Active Area

107.95*57.55 mm

Viewing Direction

6 O’clock

DUTY/BIAS

1/128, 1/12

Type

COB

Driver IC

SAP1024B

Working Temp.

-20℃~+70℃

Storage Temp.

-30℃~+80℃

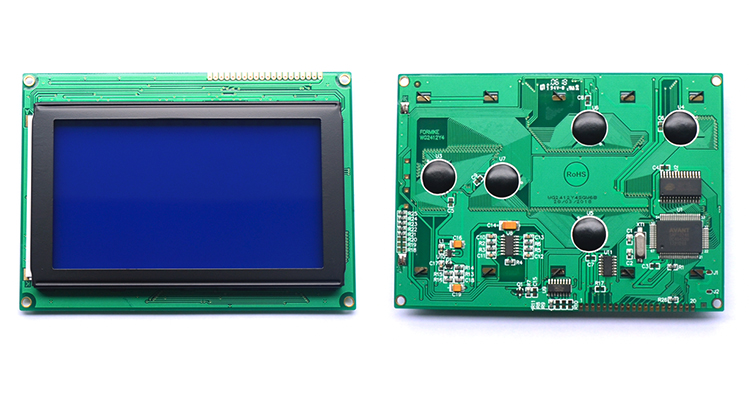

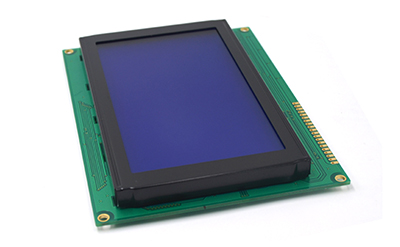

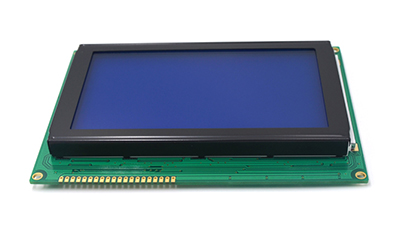

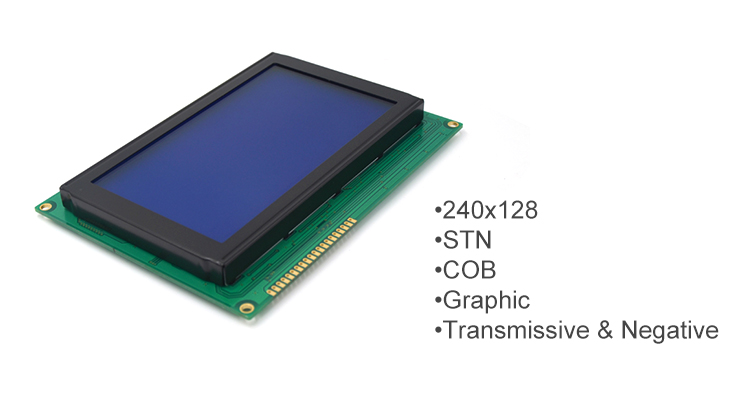

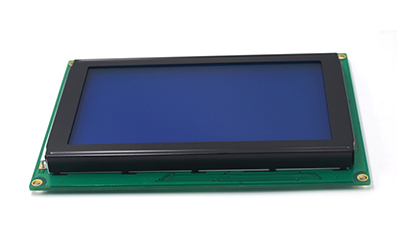

* WG2412Y4SGW6B-C is a Monochrome color COB type STN negative,Transmissive LCD.

* It is composed of a monochrome LCD panel, driver IC, FPC, and backlight.

*It is 240x128 dots monochrome character STN lcd monitor.

* Backlight with white,blue,yellow,red color

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

Monochrome FSTN 240x128 LCD Module 21 Pin Display Screen with 8 BIT Parallel Interface

Monochrome FSTN 240x128 LCD Module 21 Pin Display Screen with 8 BIT Parallel Interface Monochrome FSTN 240x128 LCD Module 21 Pin Display Screen with 8 BIT Parallel Interface
Monochrome FSTN 240x128 LCD Module 21 Pin Display Screen with 8 BIT Parallel Interface
