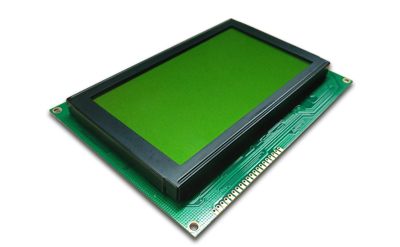

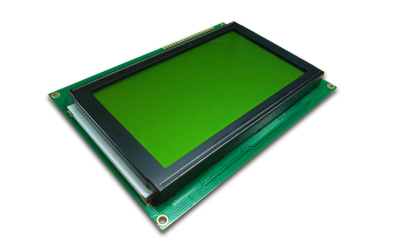

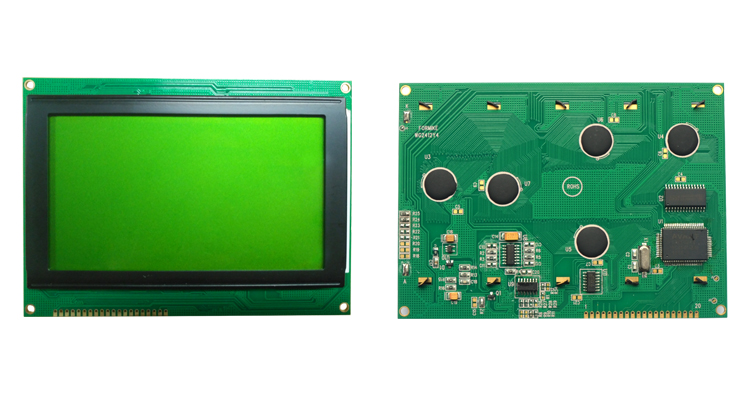

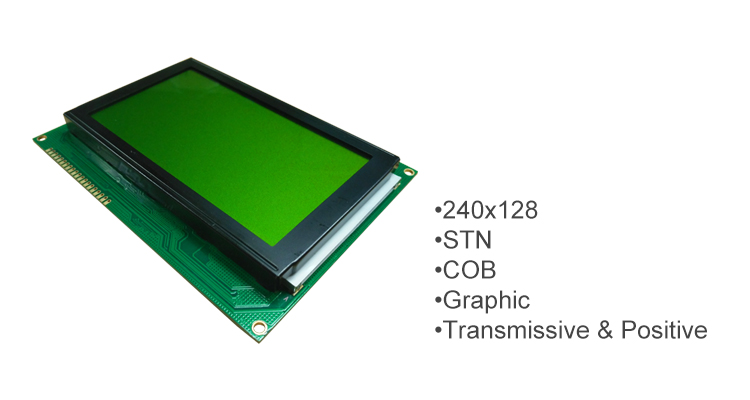

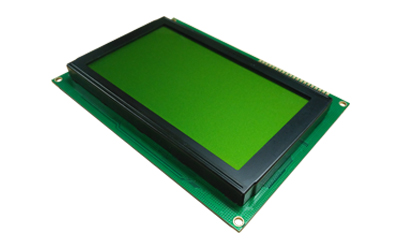

20 Pin COB STN 240x128 LCD Display Screen With Yellow Green Backlight ODM
20 Pin COB STN 240x128 LCD Display Screen With Yellow Green Backlight ODM
20 Pin COB STN 240x128 LCD Display Screen With Yellow Green Backlight ODM
20 Pin COB STN 240x128 LCD Display Screen With Yellow Green Backlight ODM
20 Pin COB STN 240x128 LCD Display Screen With Yellow Green Backlight ODM
20 Pin COB STN 240x128 LCD Display Screen With Yellow Green Backlight ODM
20 Pin COB STN 240x128 LCD Display Screen With Yellow Green Backlight ODM
20 Pin COB STN 240x128 LCD Display Screen With Yellow Green Backlight ODM
20 Pin COB STN 240x128 LCD Display Screen With Yellow Green Backlight ODM
20 Pin COB STN 240x128 LCD Display Screen With Yellow Green Backlight ODM
20 Pin COB STN 240x128 LCD Display Screen With Yellow Green Backlight ODM
20 Pin COB STN 240x128 LCD Display Screen With Yellow Green Backlight ODM
20 Pin COB STN 240x128 LCD Display Screen With Yellow Green Backlight ODM
20 Pin COB STN 240x128 LCD Display Screen With Yellow Green Backlight ODM
Specifications
Display Mode :
STN
Display Format :
240*128 Dots
Backlight Color :
Black display dot on yellow-green background with yellow-green backlight
Operating Voltage :
5V
Supply Ability :
5000000000 pieces/year
Controller :
SAP1024B
Interface :
20Pin, 8 bit Parallel
Place of Origin :
China
Operating Temperature :
-20°C to 70°C
Brand Name :
Formike
MOQ :
1 piece
Payment Terms :
T/T,L/C,Credit card,Cash
Packaging Details :
Tray + Inner Box + Carton
Backlight :
LED
Display Type :
Graphic LCD Screen Module
Product Name :
240x128 Display 20 Pin COB LCD STN Screen with Yellow-Green Backlight
Model Number :
WG2412Y4SBY6B
Viewing Angle :
6 O'clock
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Dimensions :
144mm * 104mm * 17mm
Description

240x128 Display 20 Pin COB LCD STN Screen with Yellow-Green Backlight

20 Pin COB STN 240x128 LCD Display Screen With Yellow Green Backlight ODM

LCD Name

240x128 Display 20 Pin COB LCD STN Screen with Yellow-Green Backlight

Display Format

240*128

Display Mode

STN,Transmissive, Positive

Outline Dimension

144*104*17 mm

Active Area

107.95*57.55 mm

Viewing Direction

6 O’clock

DUTY/BIAS

1/128, 1/12

Type

COB

Driver IC

SAP1024B

Color

Display dot : Black
Background: Yellow-Green

Backlight

Yellow-Green

Working Temp.

-20℃~+70℃

Storage Temp.

-30℃~+80℃

* WG2412Y4SBY6B is a Monochrome color COB type STN Positive,Transmissive LCD.

* It is composed of a monochrome LCD panel, driver IC, FPC, and backlight.

*It is 240x128 dots monochrome character STN lcd monitor.

* Backlight with white,blue,yellow,red color

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

20 Pin COB STN 240x128 LCD Display Screen With Yellow Green Backlight ODM

20 Pin COB STN 240x128 LCD Display Screen With Yellow Green Backlight ODM 20 Pin COB STN 240x128 LCD Display Screen With Yellow Green Backlight ODM
20 Pin COB STN 240x128 LCD Display Screen With Yellow Green Backlight ODM
